1981 Yamaha SRX440E Control - Cable Diagram

← All diagrams

Find the part on the Control - Cable diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

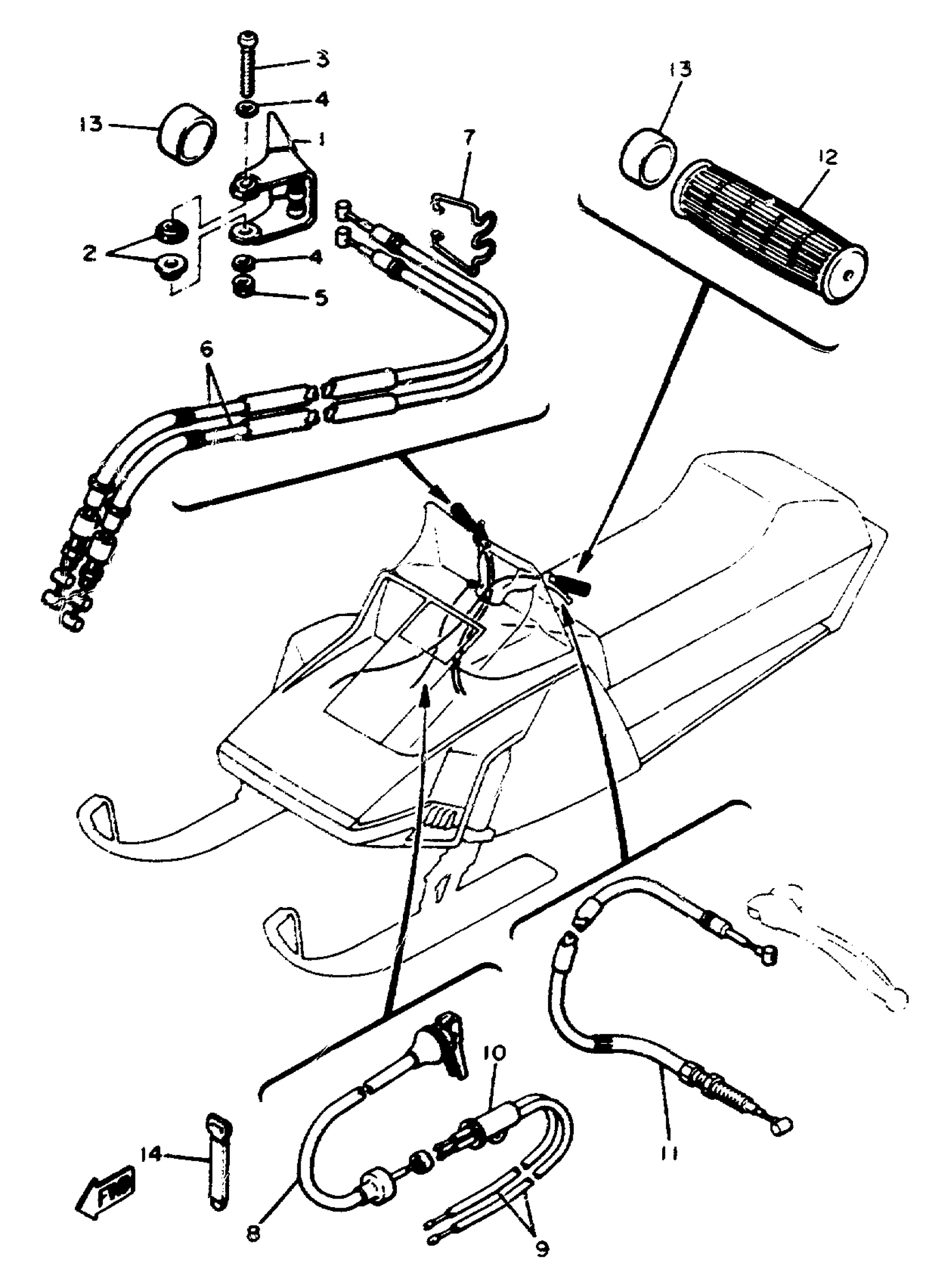

1981 Yamaha SRX440E Control - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER, THROTTLE

8M6-42138-00-00

1
Out of stock

2

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

3

SCREW, PAN

98507-06050-00

1
Out of stock

4

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

CABLE, THROTTLE 1

8M6-26311-01-00

1
Out of stock

7

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

8

CABLE, STARTER 1

8M6-26331-00-00

1
Out of stock

9

CABLE, STARTER 2

8M6-26334-01-00

1

$12.22

In stock

10

CONNECTOR, CABLE

137-26261-01-00

—
Out of stock

11

CABLE, BRAKE

8K4-26340-00-00

1
Out of stock

12

GRIP

801-26241-02-00

1
Out of stock

13

COLLAR

90387-22726-00

1
Out of stock

14

BAND

341-26397-01-00

1
Out of stock
