Description

Price

1

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

2

NUT

8H8-82557-00-00

$2.97

3

CAP, SWITCH

8H8-82552-09-00

$48.99

4

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

5

LEVER 1

8H8-83912-00-00

$20.99

6

SCREW, PAN HEAD

98580-05020-00

Unavailable

7

SCREW, PAN

98507-05040-00

$8.49

8

NUT, NYLON

95707-05300-00

$4.24

9

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

10

COLLAR, LEVER

802-83913-00-00

Unavailable

11

. SCREW, TAPPING

97780-30312-00

Unavailable

12

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

13

STOP SWITCH ASSY

88R-82530-00-00

$31.99

14

SWITCH, HANDLE 1

(8M6-83976-00-00)

Unavailable

15

CAP 1

8E3-83956-01-00

$8.99

16

REAR REFLECTOR ASSY

81G-85130-00-00

Unavailable

17

TAPE, REFLECTOR

878-85133-00-00

Unavailable

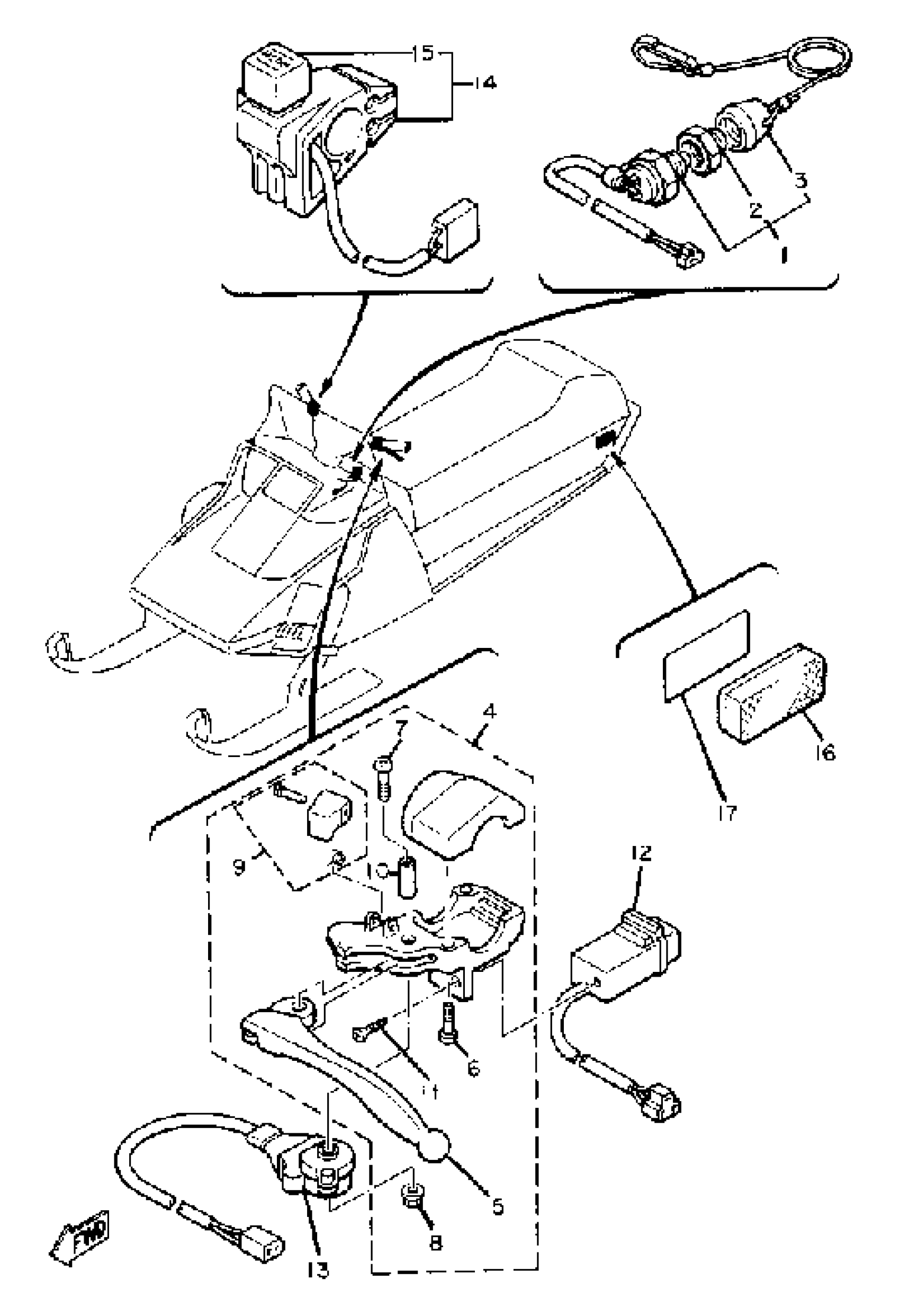

Yamaha SRX440E 1981 ELECTRICAL 2 Diagram

STOP SWITCH ASSY

NUT

CAP, SWITCH

LEVER HOLDER ASSY (LEFT)

LEVER 1

SCREW, PAN HEAD

SCREW, PAN

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

BEAM SWITCH ASSY

STOP SWITCH ASSY

SWITCH, HANDLE 1

CAP 1

REAR REFLECTOR ASSY

TAPE, REFLECTOR
