TRACK SUSPENSION 2

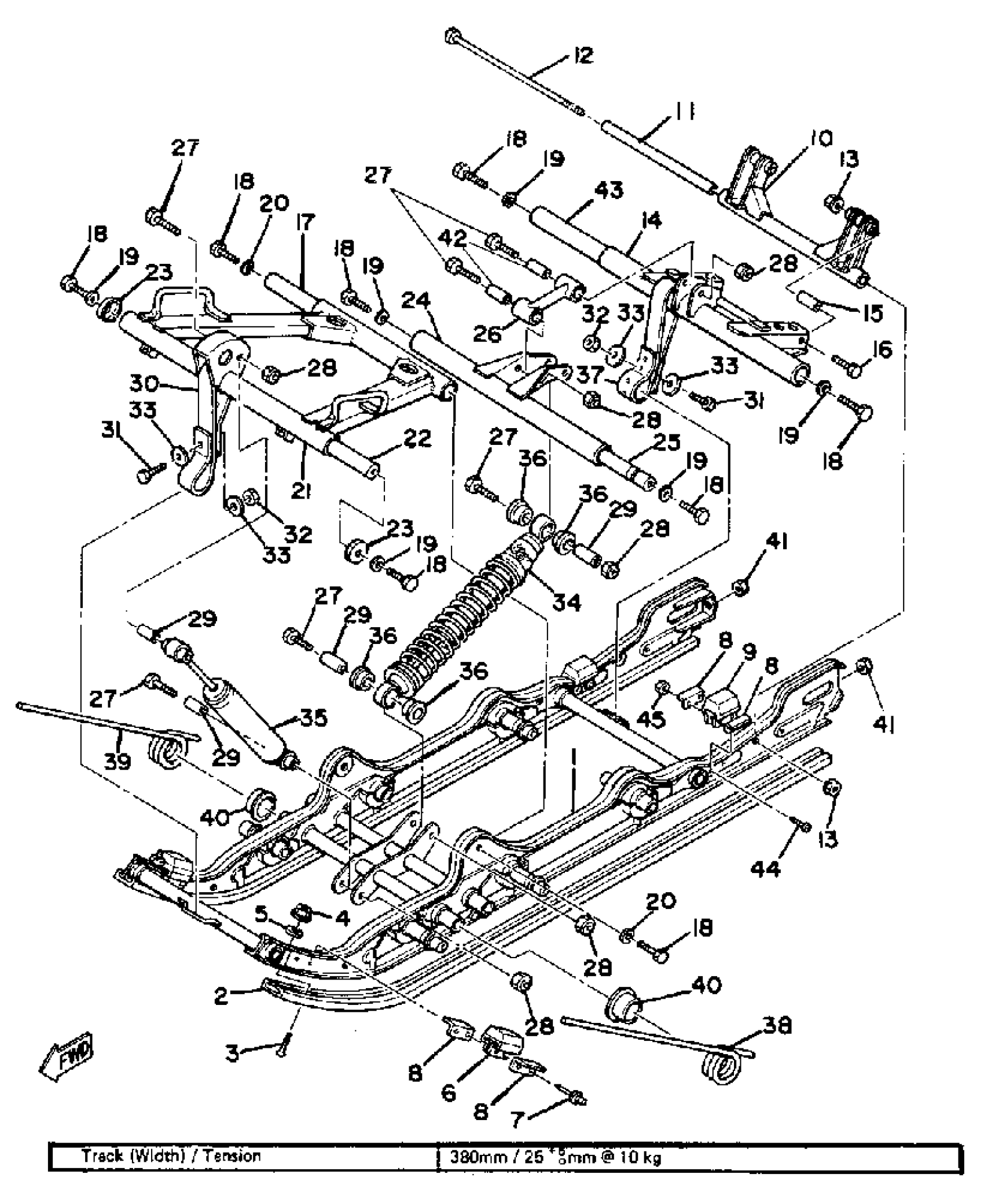

Yamaha SRX440D 1980 TRACK SUSPENSION 2 Diagram
#
1
FRAME SLIDING
8K2-47410-01-00
Unavailable
2
RUNNER, SLIDING 1
8K2-47421-00-XX
Unavailable
3
SCREW, FLAT HEAD
92702-08060-00
Unavailable
4
NUT, NYLON
95717-08300-00
$2.70
5
WASHER, PLAIN
92990-08200-00
Unavailable
6
DAMPER 2
8K2-47457-00-00
Unavailable
7
RIVET, BLIND (8K4)
90267-48062-00
$3.66
8
PLATE, DAMPER
8K2-47458-01-00
$4.77
9
DAMPER 1
8K2-47456-00-00
Unavailable
10
BRACKET 3
(8K2-47417-00-00)
Unavailable
11
COLLAR
90387-08632-00
Unavailable
12
BOLT, HEXAGON (97101-08245)
97321-08245-00
Unavailable
13
NUT, NYLON
95717-08300-00
$2.70
14
ARM, PIVOT 2
8K2-47332-01-00
Unavailable
15
COLLAR (8K2)
90387-08754-00
$7.49
16
. BOLT
90101-08557-00
Unavailable
17
SHAFT 3
8K2-47485-00-00
Unavailable
18
BOLT (8J7)
97013-10030-00
Unavailable
19
WASHER, TTH
92907-10400-00
Unavailable
20
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
20
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
21
ARM, PIVOT 1
8K2-47331-00-00
Unavailable
22
SHAFT 1
8A5-47465-02-00
Unavailable
23
SPACER
885-47341-00-00
Unavailable
24
BRACKET 5
8K2-47463-00-00
Unavailable
25
SHAFT 2
8K2-47475-00-00
Unavailable
26
BRACKET 6
8K2-47464-00-00
Unavailable
27
. BOLT
90101-08557-00
Unavailable
28
NUT, NYLON
95717-08300-00
$2.70
29
COLLAR (8K2)
90387-08754-00
$7.49
30
STOPPER 1
8E3-47495-00-00
Unavailable
