TRACK DRIVE 2

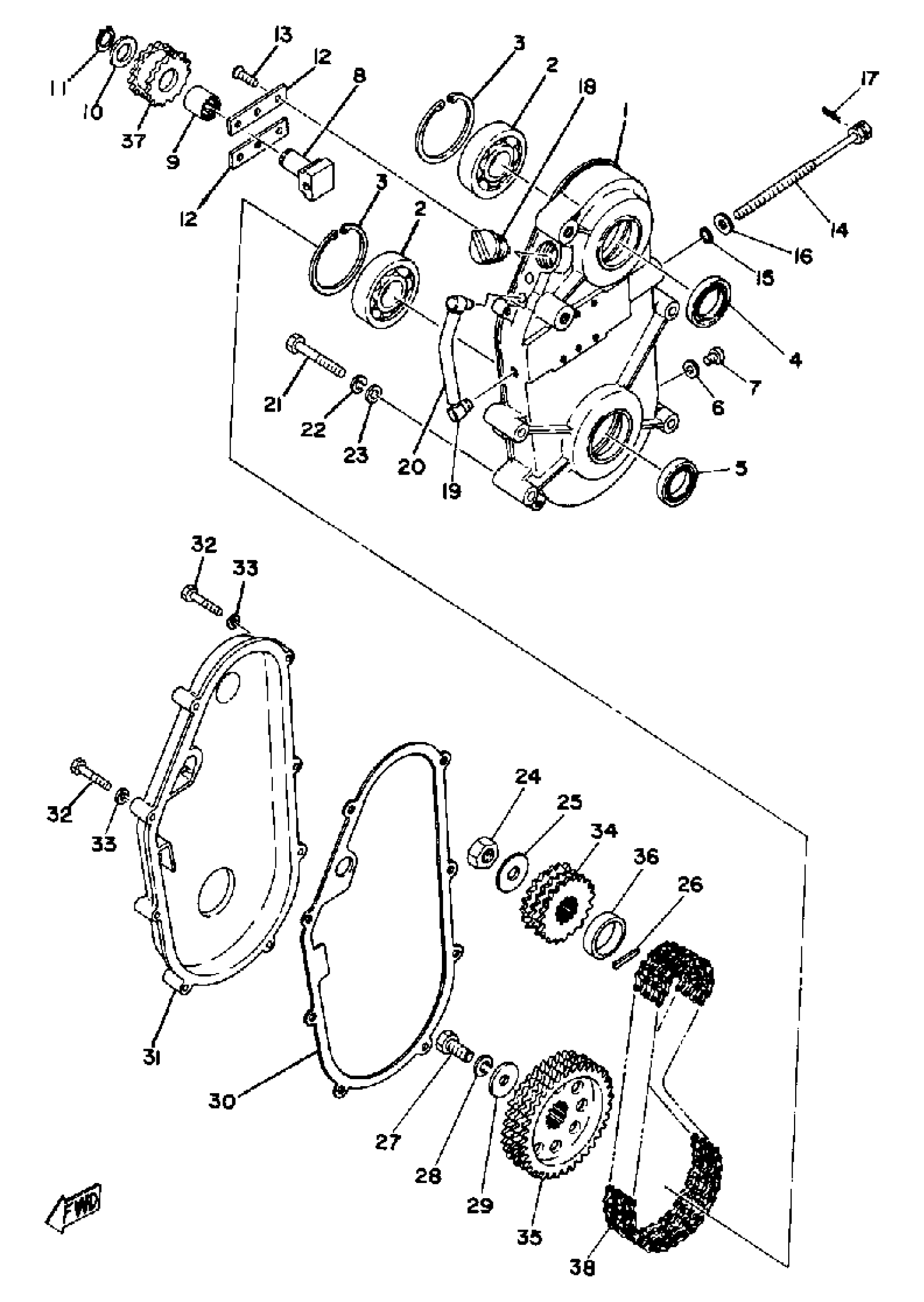

Yamaha SRX440D 1980 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8A7-47541-00-00
Unavailable
2
BEARING (8R9)
93306-30536-00
Unavailable
3
CIRCLIP(MF1)
99009-62500-00
$8.49
4
OIL SEAL, SD-TYPE
93102-33140-00
Unavailable
5
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
6
GASKET 838153840000
90430-06016-00
$8.49
7
SCREW PAN HEAD
98580-06010-00
$8.49
8
TENSIONER
878-47611-00-00
Unavailable
9
BRG,CYL-CAL ROLLER 20G NT
93317-31701-00
Unavailable
10
WASHER
90201-17256-00
Unavailable
11
CIRCLIP(1EY)
99009-17400-00
$4.73
12
HOLDER
8A7-47613-00-00
Unavailable
13
SCREW, FLAT
98707-06014-00
$8.49
14
BOLT
90109-08357-00
Unavailable
15
O-RING
93210-08003-00
$9.49
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
CLIP
90468-16065-00
Unavailable
18
CAP 2
857-47559-00-00
Unavailable
19
BREATHER
583-15371-00-00
Unavailable
20
HOSE (L420)
90445-092K1-00
Unavailable
21
BOLT, HEXAGON
97013-08055-00
Unavailable
22
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
23
.. WASHER, PLATE
92990-08600-00
Unavailable
24
NUT(6TC)
95337-14600-00
Unavailable
25
WASHER, PLATE
90201-14319-00
Unavailable
26
PIN, COTTER
91490-30030-00
Unavailable
27
BOLT(6TD)
97017-10025-00
Unavailable
28
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
29
WASHER, PLATE(8BV)
90201-100S7-00
Unavailable
30
GASKET
878-47544-08-00
Unavailable
