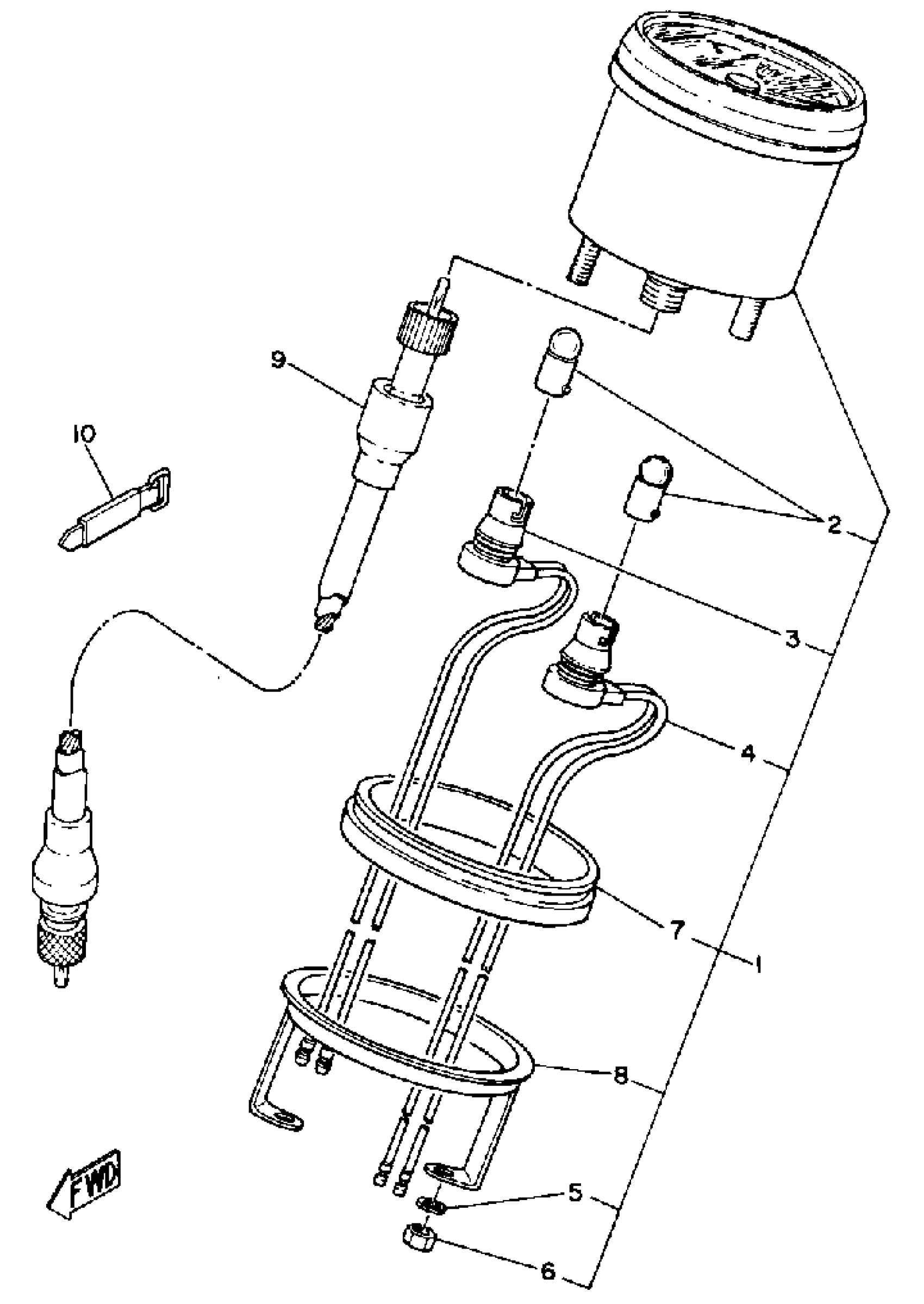

Yamaha SRX440D 1980 TACHOMETER Diagram

#

Description

Price

1

TACHOMETER ASSEMBLY

8K2-83540-00-00

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

(861-83536-40-00)

Unavailable

4

. SOCKET, METER

8K2-83536-00-00

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

DAMPER, METER

8G6-83523-00-00

Unavailable

8

. BRACKET, METER

8G6-83519-00-00

Unavailable

9

SPEEDOMETER CABLE

839-83550-01-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$7.99
