1980 Yamaha SRX440D Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

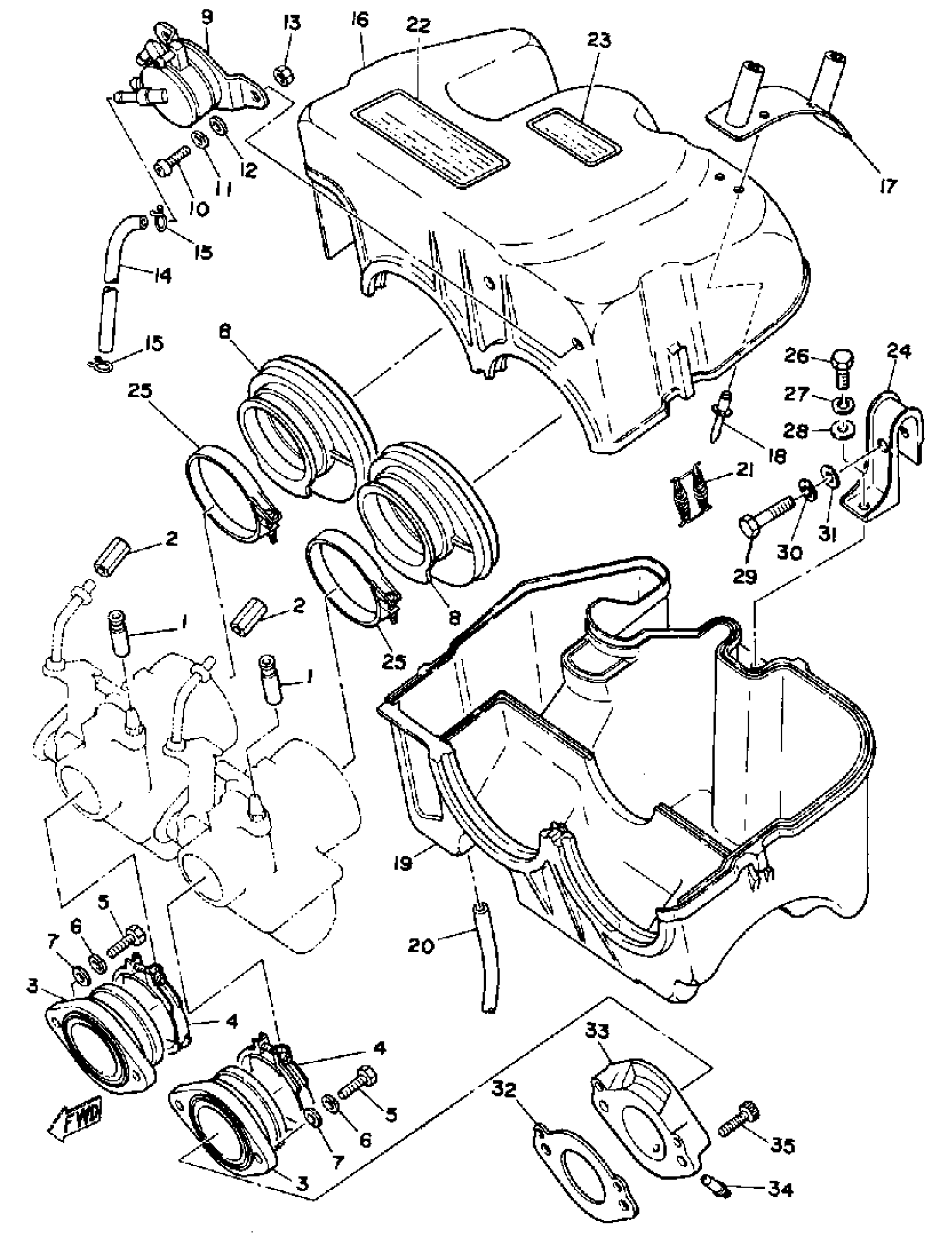

1980 Yamaha SRX440D Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT

8J5-26352-00-00

1
Out of stock

2

NUT, AJUSTING

8A7-26323-00-00

1
Out of stock

3

MANIFOLD

8G8-13555-01-00

1

$106.31

In stock

4

BAND

86M-13575-00-00

1

$16.45

In stock

5

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

JOINT, AIR CLNR 1

8K2-14453-00-00

1
Out of stock

9

FUEL PUMP ASSEMBLY

8K2-24410-00-00

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

HOSE (L400)

90445-116K9-00

1
Out of stock

15

CLIP

90467-090A2-00

1

$2.51

In stock

16

SILENCER, INTAKE 1

(8G9-14431-00-00)

1
Out of stock

17

STAY 1

8G9-14493-00-00

1
Out of stock

18

RIVET, BLIND (15A)

90267-32071-00

—

$1.21

In stock

19

SILENCER, INTAKE 2

(8F2-14441-00-00)

1
Out of stock

20

HOSE

(90445-09102-00)

1
Out of stock

21

SPRING, TENSION (90507-12014)

90507-12041-00

1
Out of stock

22

LABEL, CAUTION

8A5-14488-00-00

1
Out of stock

23

LABEL, WARNING 2

(8A5-77762-00-00)

1
Out of stock

24

STAY 2

8A7-14494-00-00

1
Out of stock

25

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

26

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

29

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
