FUEL TANK

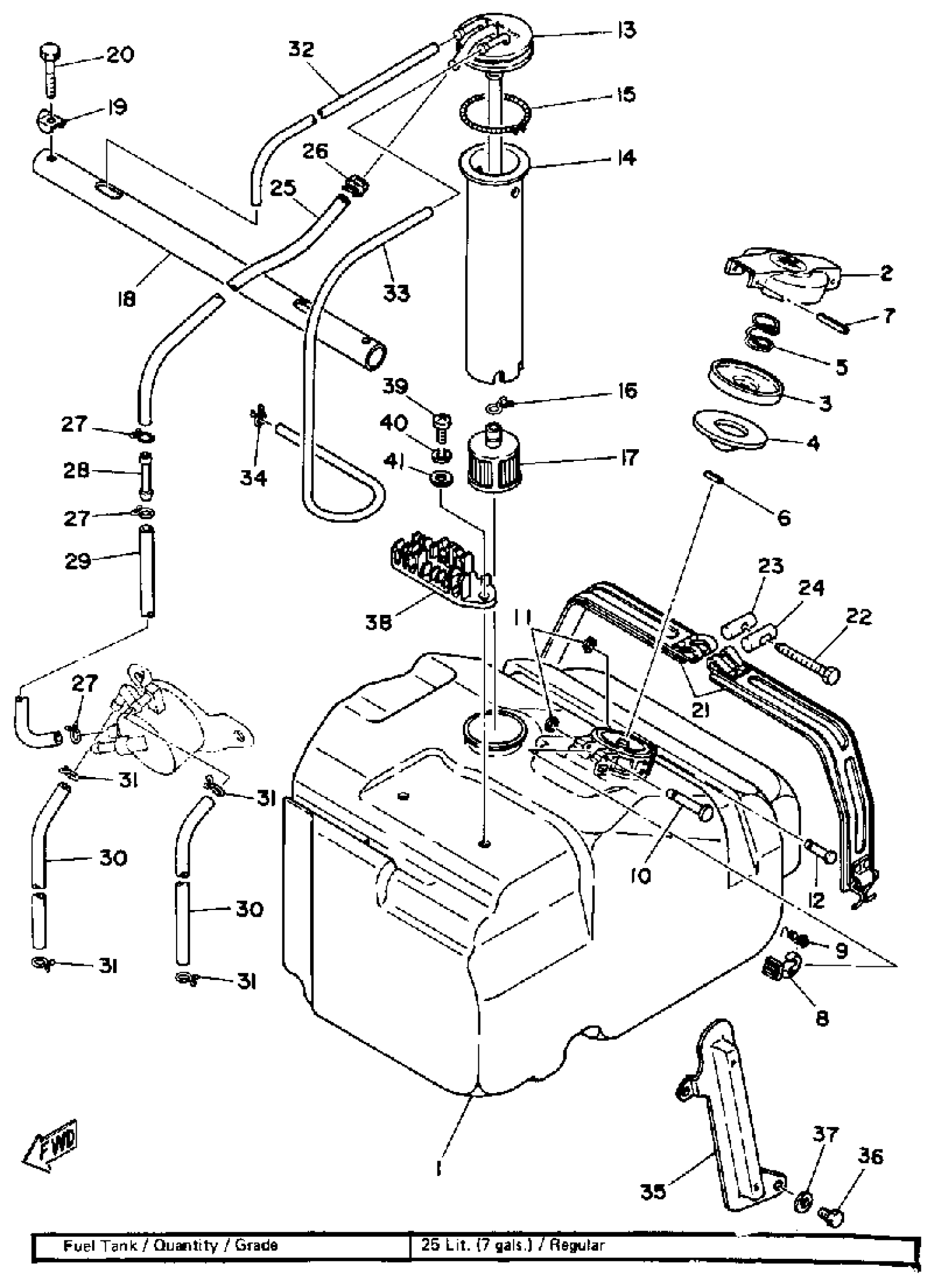

Yamaha SRX440D 1980 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK
(8K2-24111-00-00)
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
DISK,CAP
813-24613-01-00
$20.99
4
GASKET, CAP 1
89A-24641-00-00
$10.99
5
SPRING, CAP
90501-20130-00
$8.49
8
HOOK
83M-24628-00-00
$24.99
9
SPRING, TORSION(81E)
90508-10715-00
Unavailable
10
PIN (813)
90249-03017-00
$7.49
11
CIRCLIP (604)
93430-02001-00
$8.49
12
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
13
PIPE, SUCTION 1
(8G9-24335-00-00)
Unavailable
14
PIPE, SUCTION 2
(8G9-24336-01-00)
Unavailable
15
SPRING, TENSION (8R4)
90506-06261-00
$9.49
16
CLIP (8J7)
90467-11009-00
$10.49
17
FILTER ASSY
8H5-24560-00-00
Unavailable
18
BAND, TNK FITTING 1
(878-24173-01-00)
Unavailable
19
WASHER, LOCK
(90215-06048-00)
Unavailable
20
BOLT (682)
97095-06040-00
Unavailable
21
BAND, TNK FITTING 2
8K2-24199-00-00
Unavailable
22
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
23
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
24
CLAMP
806-24135-00-00
Unavailable
25
HOSE
(90446-11029-00)
Unavailable
26
CLIP
90467-11028-00
Unavailable
27
CLIP (8J7)
90467-11009-00
$10.49
28
PIPE, JOINT 4
878-24379-00-00
Unavailable
29
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
30
HOSE
(90446-09167-00)
Unavailable
