Description

Price

1

EXHAUST PIPE ASSEMBLY L

8G9-14610-01-00

Unavailable

2

EXHAUST PIPE ASSEMBLY R

8G9-14620-02-00

Unavailable

3

NUT, RING

8J0-14612-00-00

Unavailable

4

SPRING, HOOK (888)

90506-20115-00

Unavailable

5

GASKET, EXST PIPE

8F3-14613-01-00

Unavailable

6

BOLT (682)

97013-08025-00

$8.49

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

.. WASHER, PLATE

92990-08600-00

Unavailable

9

RING

888-14633-00-00

Unavailable

10

STAY, MUFFLER 1

8J0-14771-00-00

Unavailable

11

SPRING, TENSION (8BU1)

90506-16494-00

$7.49

12

SPRING, TENSION

(90506-18186-00)

Unavailable

13

2ND SILENCER, MUFF

8J0-14640-00-00

Unavailable

14

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

15

BOLT, HEXAGON

97013-08016-00

$1.01

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

.. WASHER, PLATE

92990-08600-00

Unavailable

18

DAMPER, MUFFLER

(8A7-14747-00-00)

Unavailable

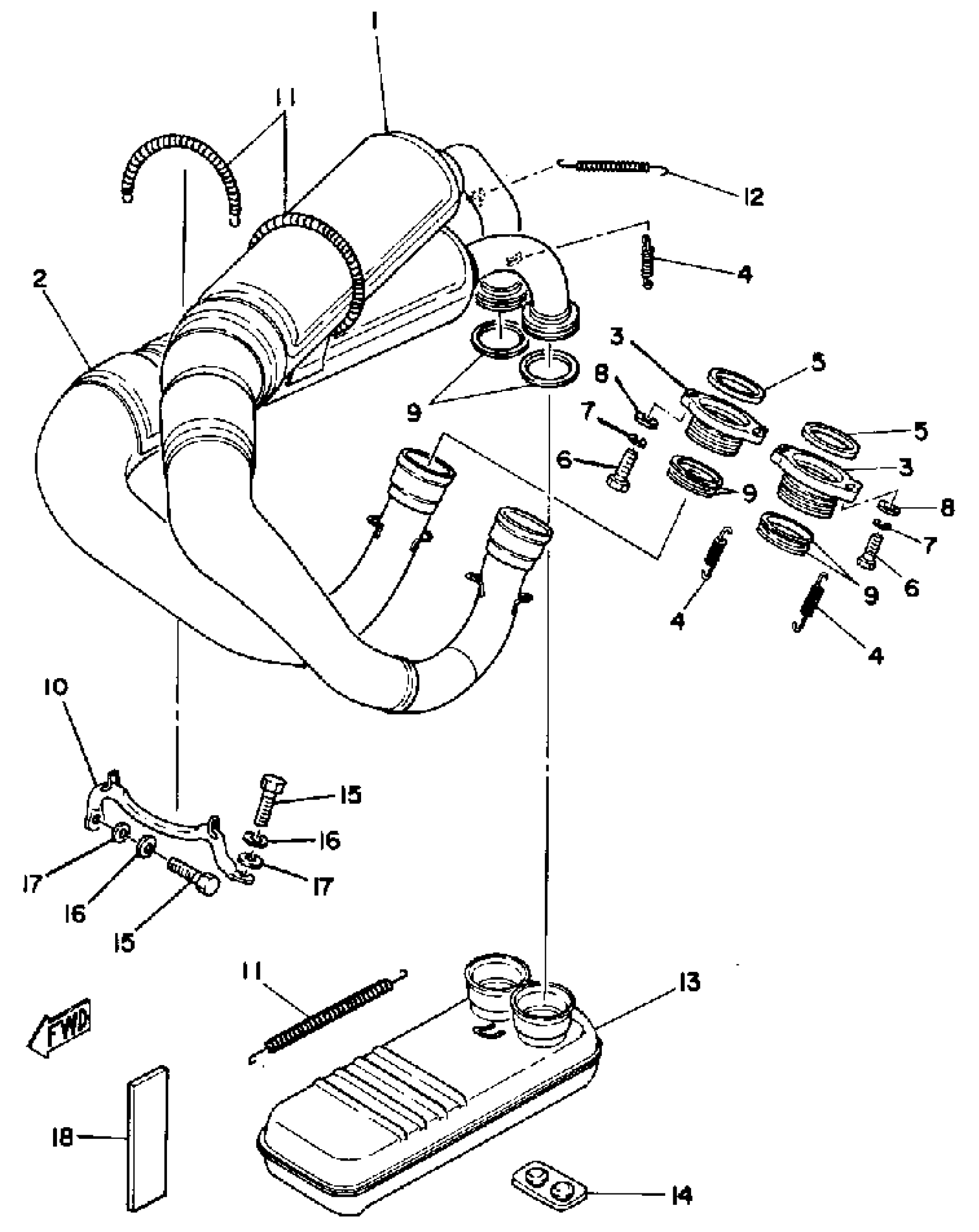

Yamaha SRX440D 1980 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

EXHAUST PIPE ASSEMBLY R

NUT, RING

SPRING, HOOK (888)

GASKET, EXST PIPE

BOLT (682)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

RING

STAY, MUFFLER 1

SPRING, TENSION (8BU1)

SPRING, TENSION

2ND SILENCER, MUFF

PROTECTOR, MUFFLER 2

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

DAMPER, MUFFLER
