Description

Price

1

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

Unavailable

2

LEVER L

803-83912-00-38

Unavailable

3

. UNAVAILABLE IN PRICE BOOK

8E3-83903-00-00

Unavailable

4

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

5

SCREW,PANHEAD (EG9)

98580-05540-00

$8.49

6

NUT, NYLON

95707-05300-00

$4.24

7

. SCREW, TAPPING

97780-30312-00

Unavailable

8

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

9

STOP SWITCH ASSY

8R4-82530-00-00

$36.99

10

SWITCH, HANDLE 1

8K2-83976-00-00

Unavailable

11

CAP 1

8E3-83956-01-00

$8.99

12

REFLECTOR, REAR 1

8J7-85131-00-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

16

NUT

8H8-82557-00-00

Unavailable

17

CAP, SWITCH

8H8-82552-09-00

Unavailable

18

WASHER, PLATE

(90201-12342-00)

Unavailable

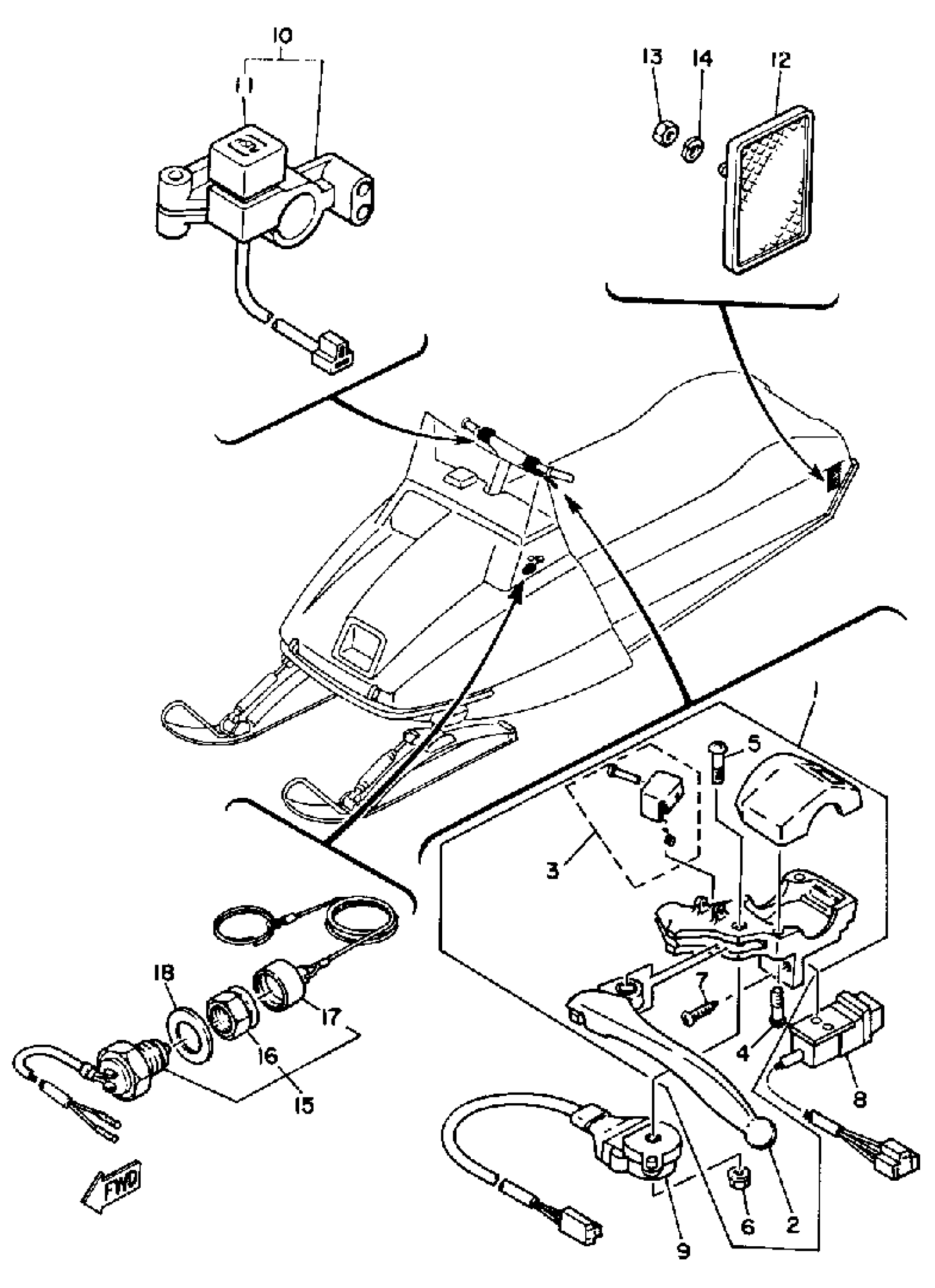

Yamaha SRX440D 1980 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

LEVER L

. UNAVAILABLE IN PRICE BOOK

SCREW, PAN HEAD(4MY)

SCREW,PANHEAD (EG9)

NUT, NYLON

. SCREW, TAPPING

BEAM SWITCH ASSY

STOP SWITCH ASSY

SWITCH, HANDLE 1

CAP 1

REFLECTOR, REAR 1

NUT, HEXAGON

WASHER, SPRING

STOP SWITCH ASSY

NUT

CAP, SWITCH

WASHER, PLATE
