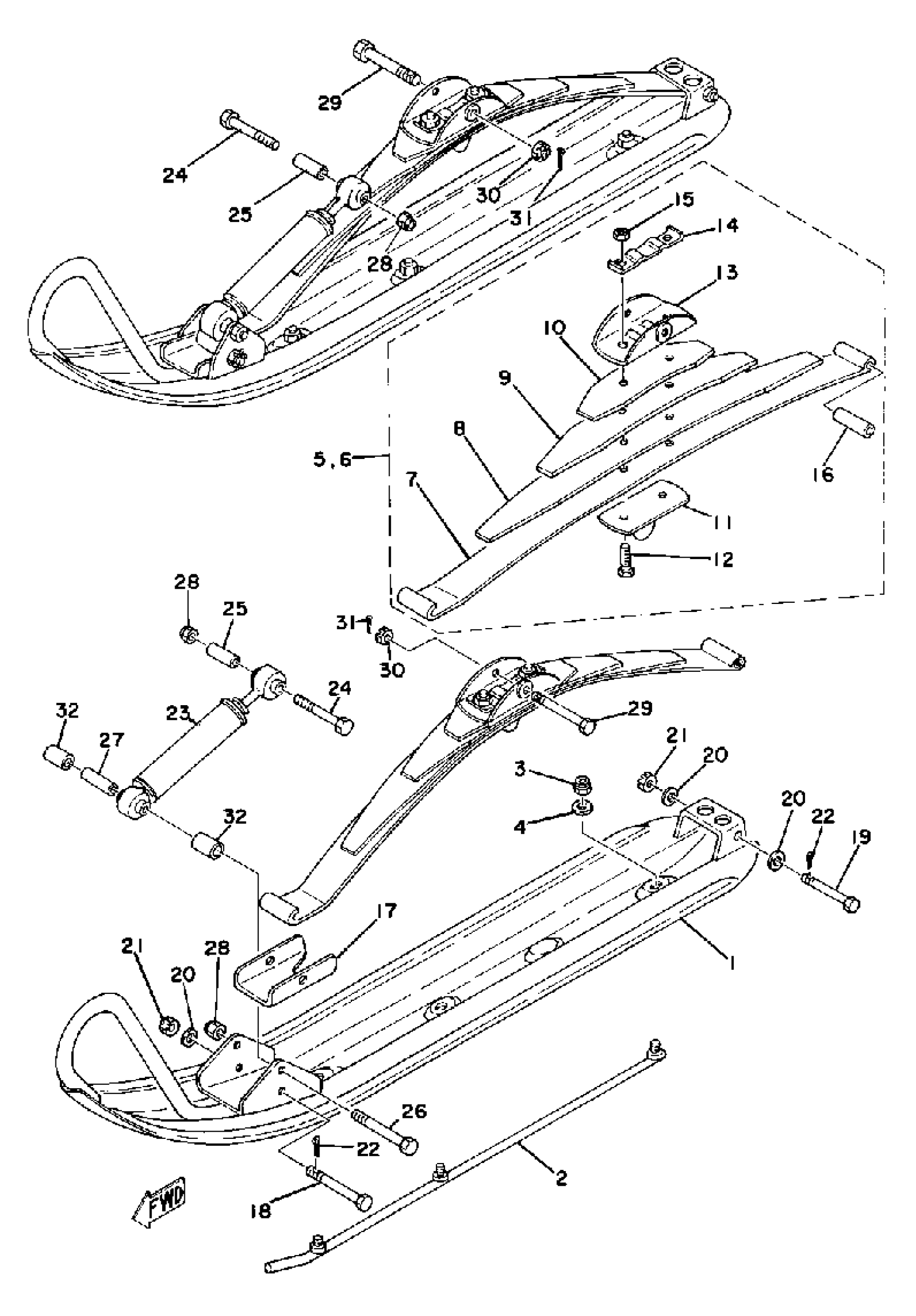

Yamaha SRX440C 1979 SKI Diagram
#
1
SKI 1
8G9-23710-00-00
Unavailable
2
SKI RUNNER, 1
888-23731-01-XX
Unavailable
3
NUT, U
95617-08100-00
$9.49
4
.. WASHER, PLATE
92990-08600-00
Unavailable
5
SPRING ASSEMBLY 1
8G9-23760-00-00
Unavailable
6
SPRING ASSEMBLY 2
(8G9-23770-00-00)
Unavailable
7
LEAF 1
888-23761-10-00
Unavailable
8
LEAF 2
865-23762-10-00
Unavailable
9
LEAF 3
899-23763-10-00
Unavailable
10
LEAF 4
899-23764-10-00
Unavailable
11
. SEAT, SPRING 1
878-23768-00-00
Unavailable
12
. BOLT
90109-105E7-00
Unavailable
13
. SADDLE 1
888-23766-10-00
Unavailable
14
WASHER, ROCK (8J5)
90215-10155-00
$13.99
15
NUT, FLANGE(3BM)
95704-10500-00
$4.29
16
COLLAR
90387-08478-00
Unavailable
17
PLATE, WEAR
888-23735-00-00
Unavailable
18
BOLT, WITH HOLE
90102-08025-00
Unavailable
19
BOLT, PIN HOLE (8A7)
90102-08027-00
Unavailable
20
.. WASHER, PLATE
92990-08600-00
Unavailable
21
NUT, SLOTTED
95307-08900-00
Unavailable
22
PIN, COTTER
91490-20025-00
Unavailable
23
SHOCK ABSORBER ASSEMBLY
8G9-23350-00-00
Unavailable
24
BOLT, HEXAGON
97013-08055-00
Unavailable
25
COLLAR (878)
90387-08262-00
Unavailable
26
BOLT (6K8)
97013-08075-00
Unavailable
27
COLLAR (864)
90387-08224-00
Unavailable
28
NUT, NYLON
95717-08300-00
Unavailable
29
BOLT, WITH HOLE
90102-12022-00
Unavailable
30
NUT, CASTLE
95307-12900-00
Unavailable
31
PIN, COTTER
91490-30030-00
Unavailable
32
COLLAR
90387-12484-00
Unavailable
