PRIMARY SHEAVE

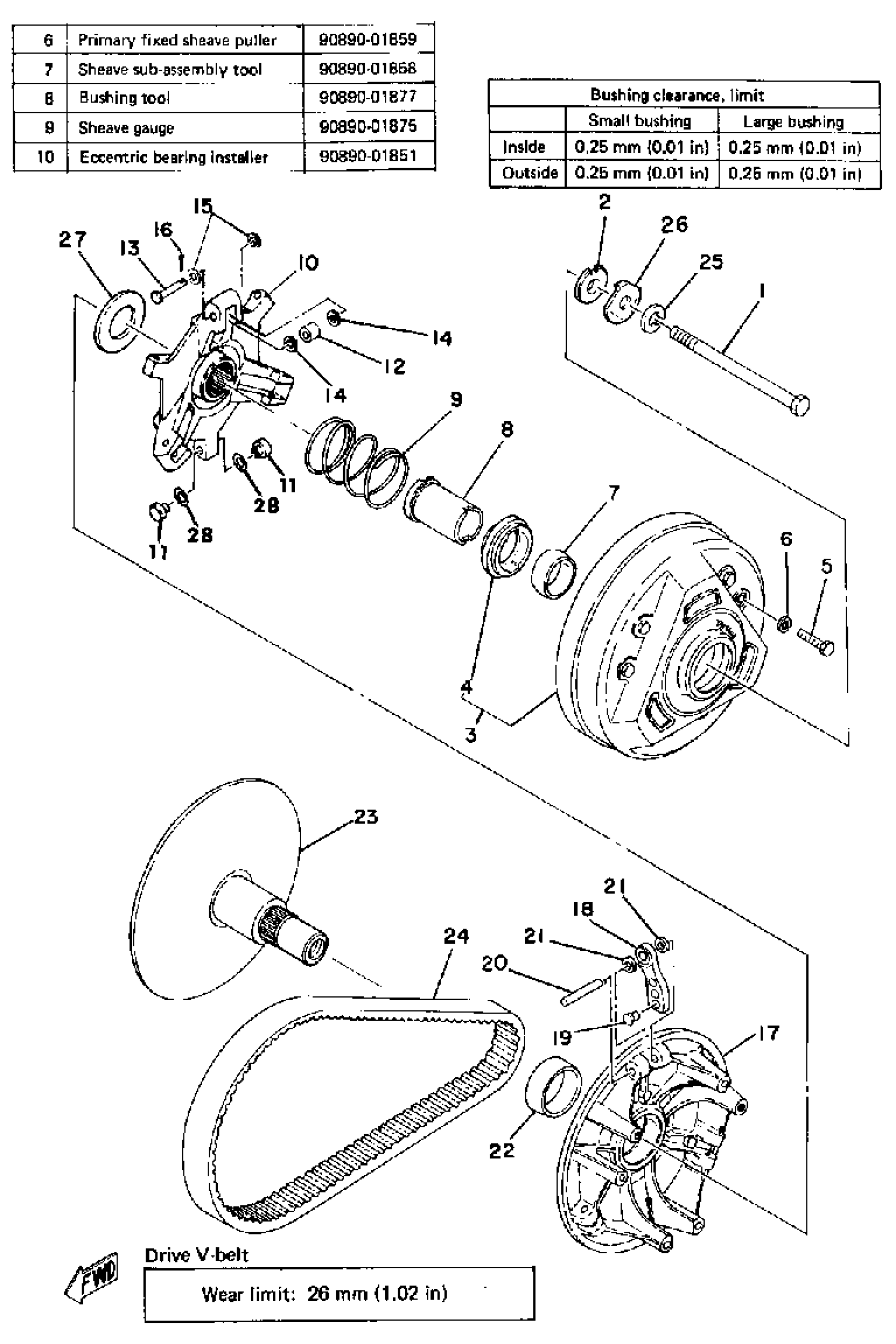

Yamaha SRX440C 1979 PRIMARY SHEAVE Diagram
#
1
BOLT
90101-13406-00
Unavailable
2
SPACER 1
8J0-17654-00-00
Unavailable
3
PRI. SHEAVE CAP
8E7-W1762-00-00
Unavailable
4
SEAT, SPRING
8E7-17644-02-00
Unavailable
5
BOLT(JF7)
97080-06030-00
$5.49
6
WASHER, SPRING
92995-06100-00
Unavailable
7
BUSH, SPEC''L SHAPE
90389-34020-00
Unavailable
8
COLLAR
90387-28721-00
Unavailable
9
SPRING, COMPRESSION
(90501-55397-00)
Unavailable
10
SPIDER
8J0-17627-00-00
Unavailable
11
SLIDER
8F2-17653-00-00
$13.49
12
COLLAR (8A7)
90387-06560-00
$7.49
13
PIN, W/HOLE (8G6)
90240-06062-00
$10.49
14
WASHER (8J0)
90202-06113-00
$4.72
15
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
16
PIN, COTTER
91490-25020-00
Unavailable
17
SHEAVE, PRI SLIDING
8E7-17621-01-00
Unavailable
18
WEIGHT, CLUTCH
8G9-17632-00-00
Unavailable
19
RIVET. COUNTERSUNK HEAD(8AK)
90261-06015-00
Unavailable
20
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
21
WASHER, PLATE(8E7)
90201-07641-00
Unavailable
22
BUSH, SPEC''L SHAPE
90389-41021-00
Unavailable
23
PRI FIXED SHEAVE
8J0-17610-00-00
Unavailable
24
V-BELT
89X-17641-01-00
Unavailable
25
WASHER, SPRING
90204-13010-00
Unavailable
26
WASHER, LOCK
90215-13047-00
Unavailable
27
WASHER, PLATE
90201-32710-00
Unavailable
28
SHIM
810-47717-10-00
Unavailable
28
CLUTCH TUNE KIT
(8G9-00000-50-00)
Unavailable
28
CLUTCH WEIGHT KIT
8G9-17000-10-00
Unavailable
28
CLUTCH SUB ASSEMBLY
8K2-17602-09-00
Unavailable
