1979 Yamaha SRX440C Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

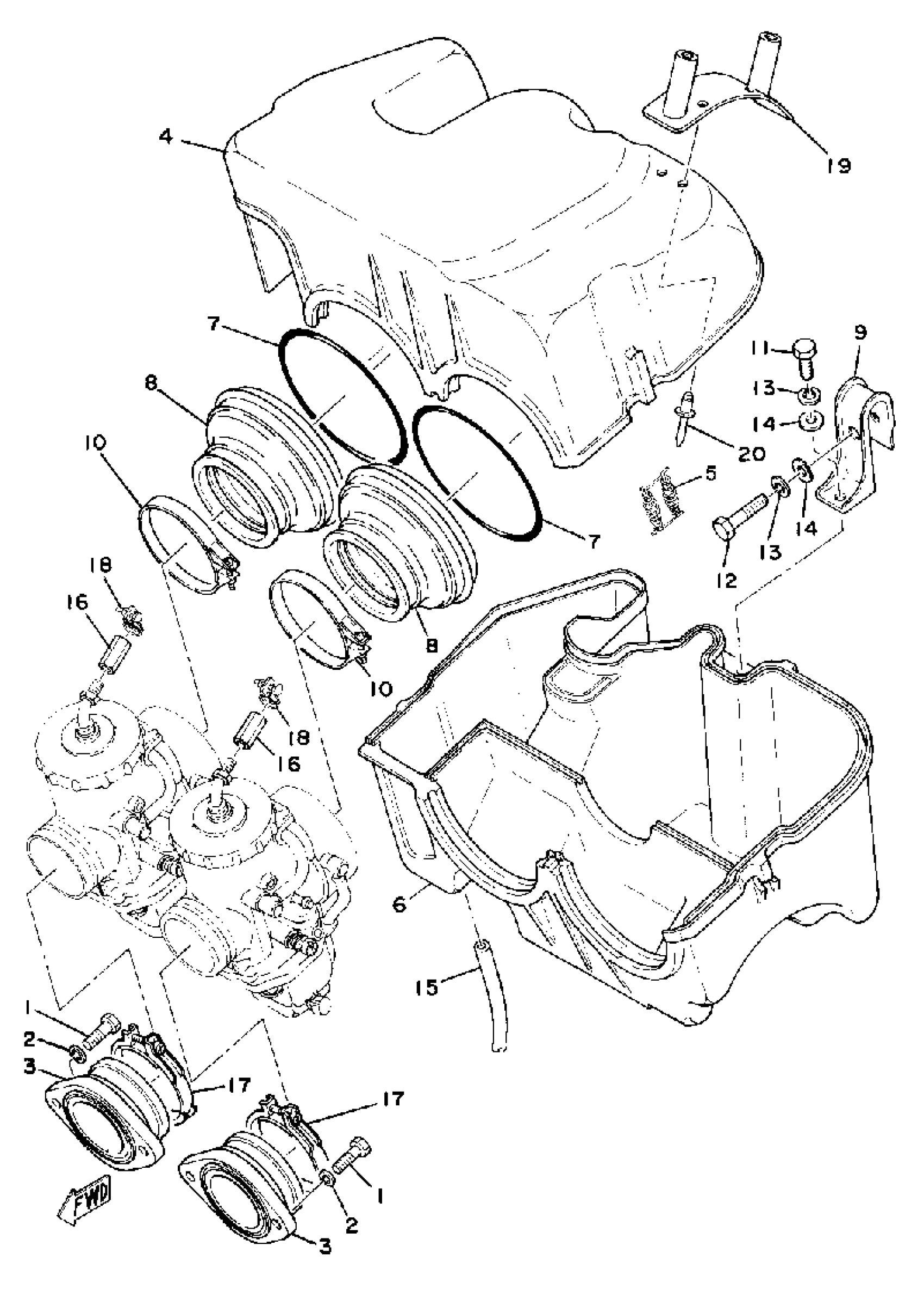

1979 Yamaha SRX440C Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (682)

97013-08025-00

1

$6.80

In stock

2

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

3

MANIFOLD, INTAKE

84M-13555-00-00

1
Out of stock

4

SILENCER, INTAKE 1

(8G9-14431-00-00)

1
Out of stock

5

SPRING, TENSION (90507-12014)

90507-12041-00

1
Out of stock

6

SILENCER, INTAKE 2

(8F2-14441-00-00)

1
Out of stock

7

GUIDE, ELEMENT

8A7-14458-00-00

1
Out of stock

8

JOINT, AIR CLNR 1

8G9-14453-00-00

1
Out of stock

9

STAY 2

8A7-14494-00-00

1
Out of stock

10

CLAMP, HOSE (90460-71017)

90460-71129-00

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

HOSE

(90445-09102-00)

1
Out of stock

16

NUT, AJUSTING

8A7-26323-00-00

1
Out of stock

17

BAND

86M-13575-00-00

—

$16.45

In stock

18

CLAMP, HOSE

90460-10074-00

1
Out of stock

19

STAY 1

8G9-14493-00-00

1
Out of stock

20

RIVET, BLIND (15A)

90267-32071-00

—

$1.21

In stock
