FUEL TANK

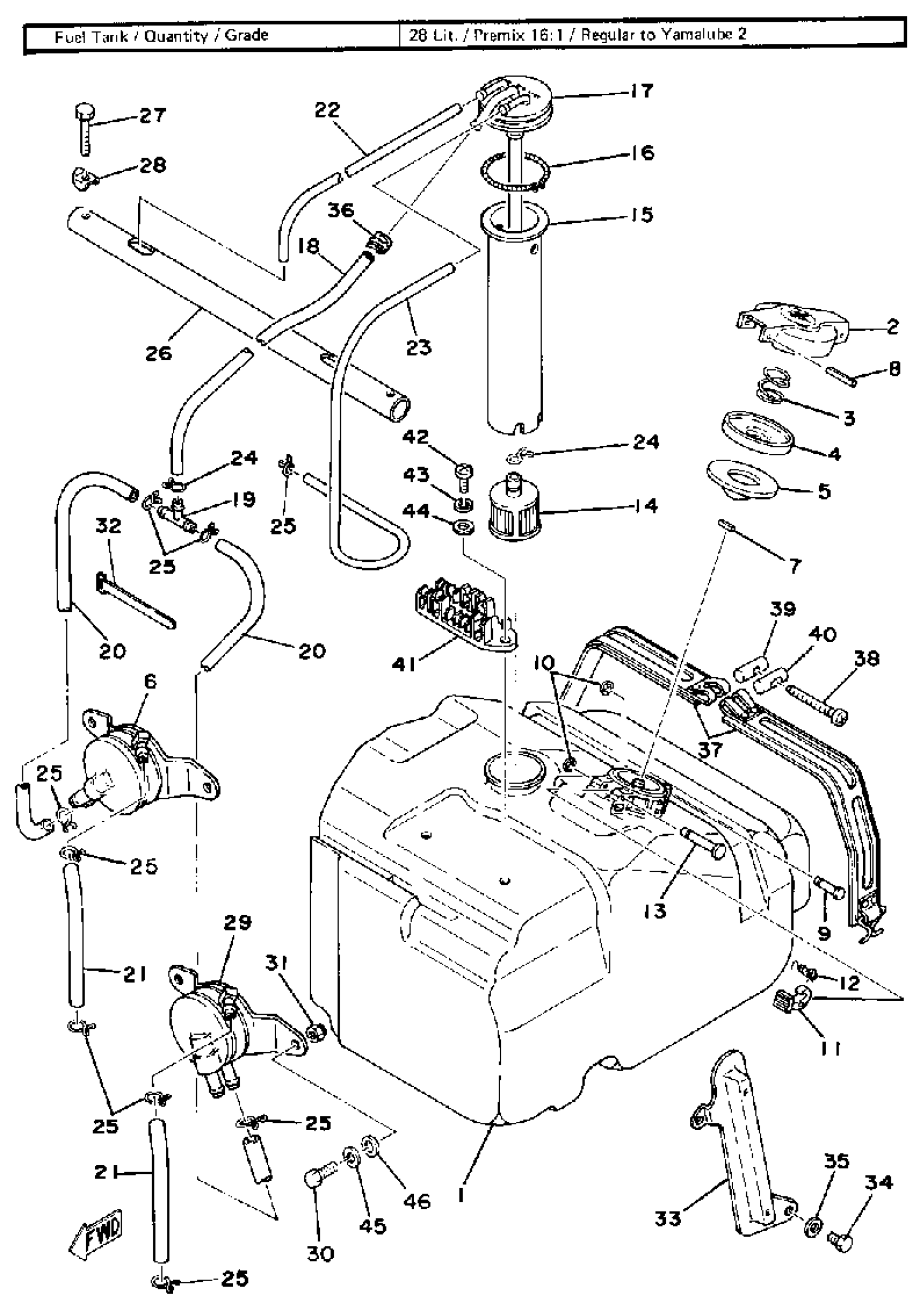

1979 Yamaha SRX440C Fuel Tank Diagram
Find the part on the Fuel Tank diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FUEL TANK
(8G9-24111-00-00)
2
BODY, CAP
(8A7-24611-00-00)
6
FUEL PUMP ASSEMBLY
8F2-24420-00-00
9
PIN, SPEC''L SHAPE
90249-03016-00
15
PIPE, SUCTION 2
(8G9-24336-01-00)
17
PIPE, SUCTION 1
(8G9-24335-00-00)
18
HOSE
(90446-11029-00)
21
HOSE (5-390) (248-21745-00)
90446-09135-00
25
CLIP, PIPE 1
810-24356-00-00
26
BAND, TNK FITTING 1
(878-24173-01-00)
28
WASHER, LOCK
(90215-06048-00)
29
FUEL PUMP ASSEMBLY
8F2-24410-00-00
33
GAUGE, LEVEL
8G9-21761-00-00
37
BAND, TNK FITTING 2
8G9-24199-00-00
38
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
39
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
