1979 Yamaha SRX440C Frame Diagram

← All diagrams

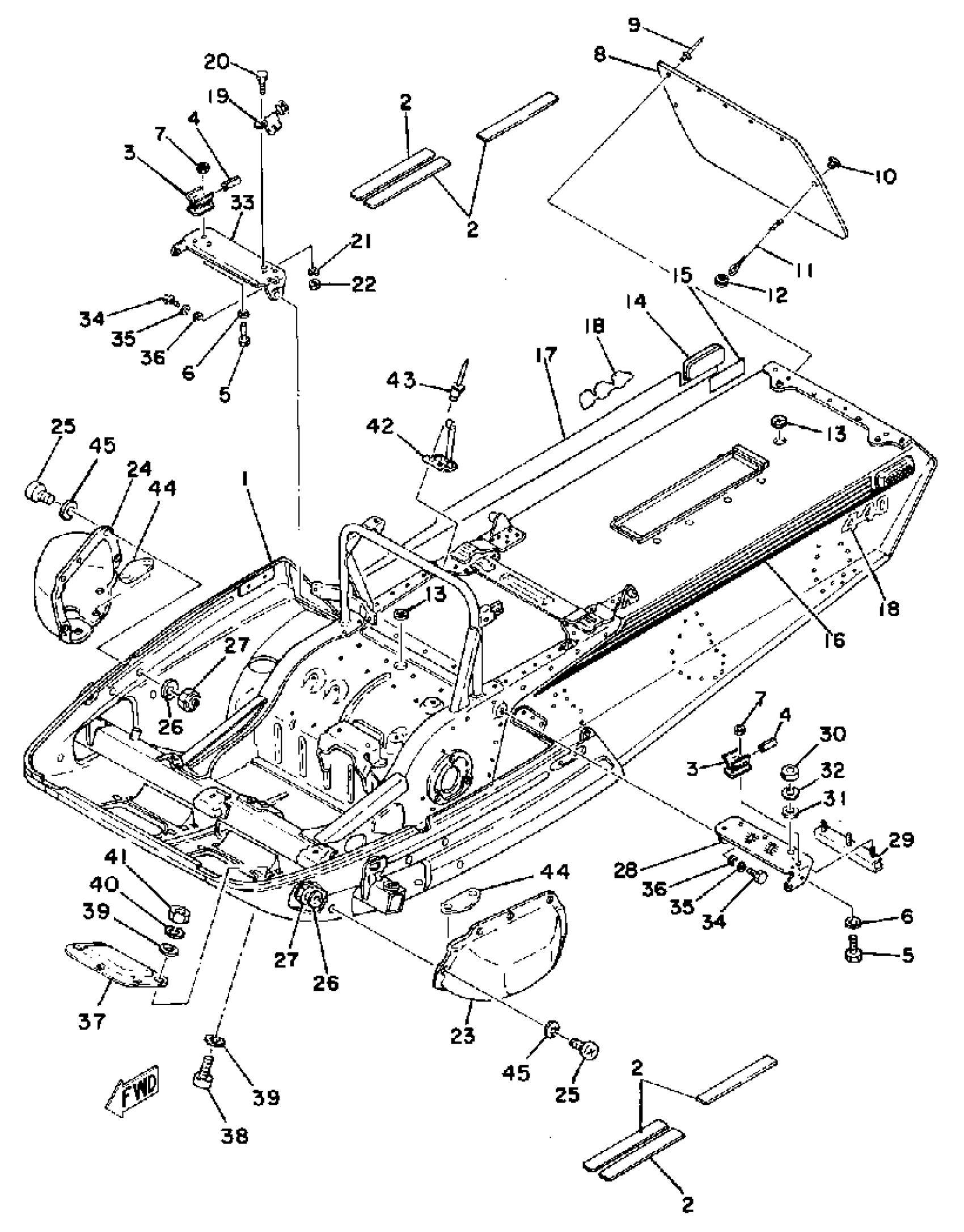

Find the part on the Frame diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SRX440C Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8G9-21910-00-00

1
Out of stock

2

COVER, FOOTRESTOPTIONAL PARTS

8G6-27413-00-00

1
Out of stock

3

CLAMP 3

878-77137-01-00

1
Out of stock

4

STOPPER

878-77188-00-00

1
Out of stock

5

BOLT,HEXAGON

97017-06008-00

1
Out of stock

6

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

7

NUT, NYLON

95707-06300-00

1

$3.20

In stock

8

FLAP

8V8-77595-00-00

1
Out of stock

9

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

10

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

11

STOPPER, FLAP

878-77596-00-00

1
Out of stock

12

CLIP

(90468-16059-00)

1
Out of stock

13

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

14

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

15

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

16

EMBLEM 1

(8J0-77351-00-00)

1
Out of stock

17

EMBLEM 2

(8J0-77352-00-00)

1
Out of stock

18

EMBLEM 3

(8J0-77353-00-00)

1
Out of stock

19

HOLDER, WIRE

8A5-23874-00-00

1
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

NUT, NYLON

95707-06300-00

1

$3.20

In stock

23

HOOD 1

8G9-21982-00-00

1
Out of stock

24

HOOD 2

8G9-21983-00-00

1
Out of stock

25

SCREW, BIND

98903-05016-00

1
Out of stock

26

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

27

NUT, NYLON

95707-05300-00

—

$2.74

In stock

28

BRACKET 3

8G9-23883-00-00

1
Out of stock

29

PROTC, WIRE HARNESS

(8G9-82589-00-00)

1
Out of stock

30

NUT(6TA)

95307-04600-00

—

$6.69

In stock

31

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

32

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

33

BRACKET 4

8A5-23884-00-00

1
Out of stock

34

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

37

PANEL, SUB FRAME 6

8G9-21917-00-00

1
Out of stock

38

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

39

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

40

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

41

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

42

BRACKET 5

8G9-23885-00-00

1
Out of stock

43

RIVET (856)

90267-48014-00

—
Out of stock

44

PATCH 10

(8G9-21997-00-00)

1
Out of stock

45

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

46

PANEL, SUB FRAME 1

8F2-21912-09-00

1
Out of stock
