1979 Yamaha SRX440C Bumper Diagram

← All diagrams

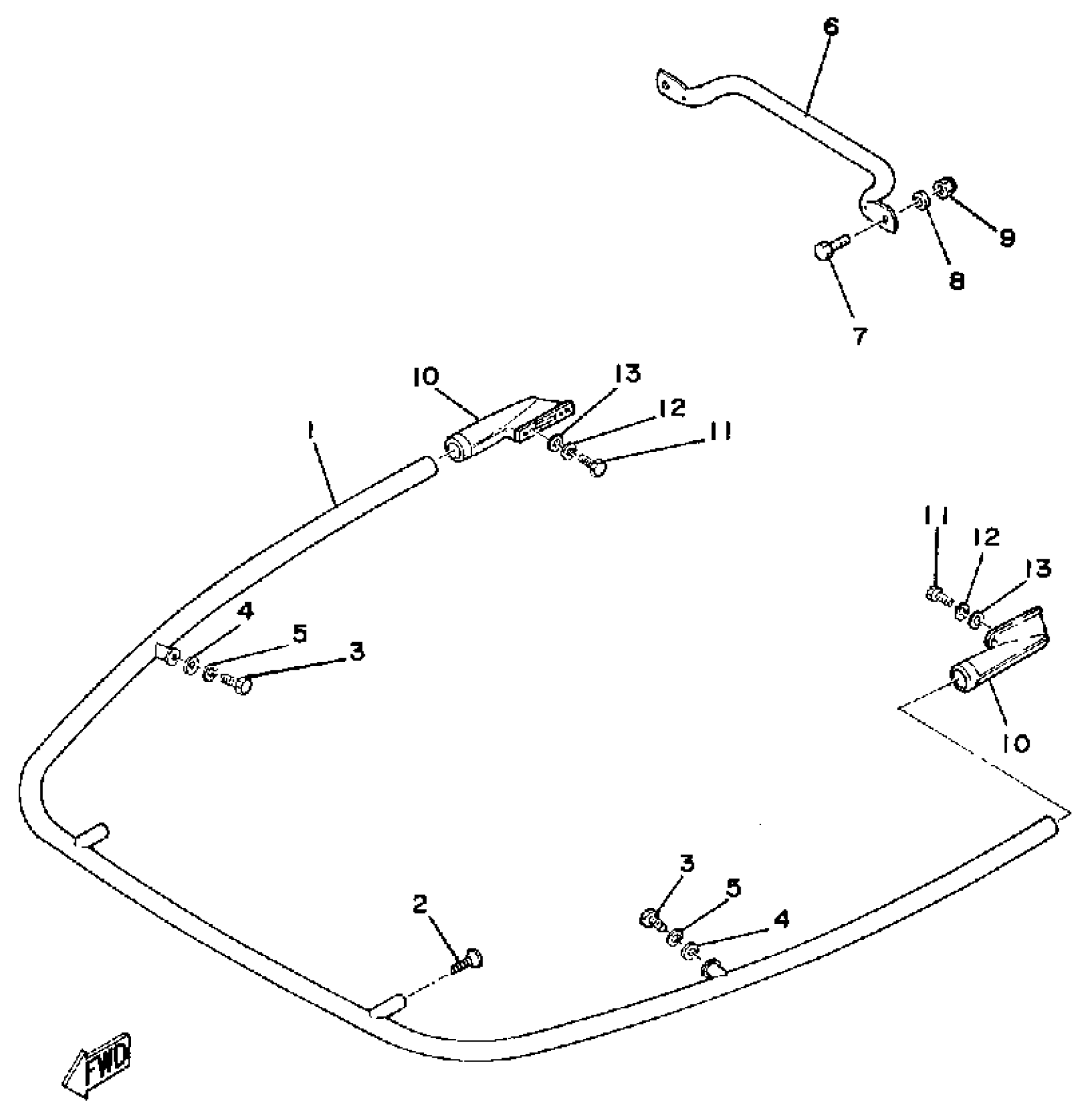

Find the part on the Bumper diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SRX440C Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

8J0-77510-00-00

1
Out of stock

2

SCREW,FLAT HEAD

98707-08040-00

1
Out of stock

3

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

7

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

END, BUMPER

878-77523-01-00

1
Out of stock

11

BOLT HEXAGON

97001-05018-00

1
Out of stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock
