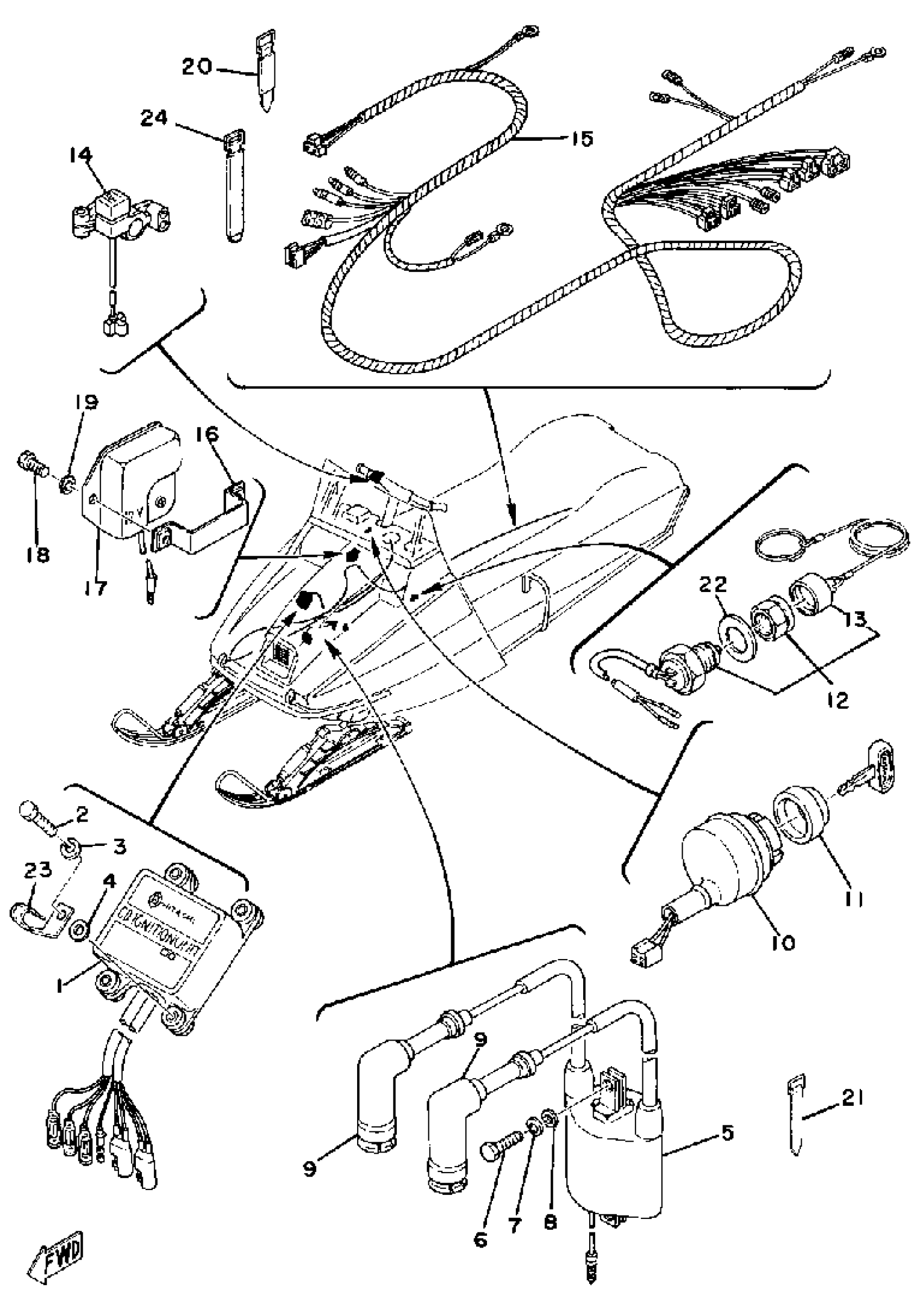

Yamaha SRX440C 1979 ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

8G9-85540-10-00

Unavailable

2

BOLT, HEXAGON (97201-05025)

97301-05025-00

Unavailable

3

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

4

WASHER, PLAIN (646)

92990-05600-00

$0.80

5

IGNITION COIL ASSEMBLY

8G9-82310-11-00

Unavailable

6

BOLT, HEXAGON

97017-06020-00

$4.06

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

PLUG CAP ASSEMBLY

8J0-82370-10-00

Unavailable

10

MAIN SWITCH ASSEMBLY

8F3-82508-20-00

Unavailable

11

COLLAR, MAIN SWITCH

806-82516-00-00

Unavailable

12

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

13

CAP, SWITCH

8H8-82552-09-00

$48.99

14

SWITCH, HANDLE 1 (8E7-83976-00)

8E7-83976-01-00

Unavailable

15

WIRE HARNESS ASSEMBLY

(8G9-82590-20-00)

Unavailable

16

PLATE, REG FITTING

8G6-81915-00-00

Unavailable

17

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, TOOTH

92901-06400-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

BAND

341-26397-01-00

Unavailable

22

WASHER, PLATE

(90201-12342-00)

Unavailable

23

CLAMP

90465-06013-00

Unavailable

24

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
