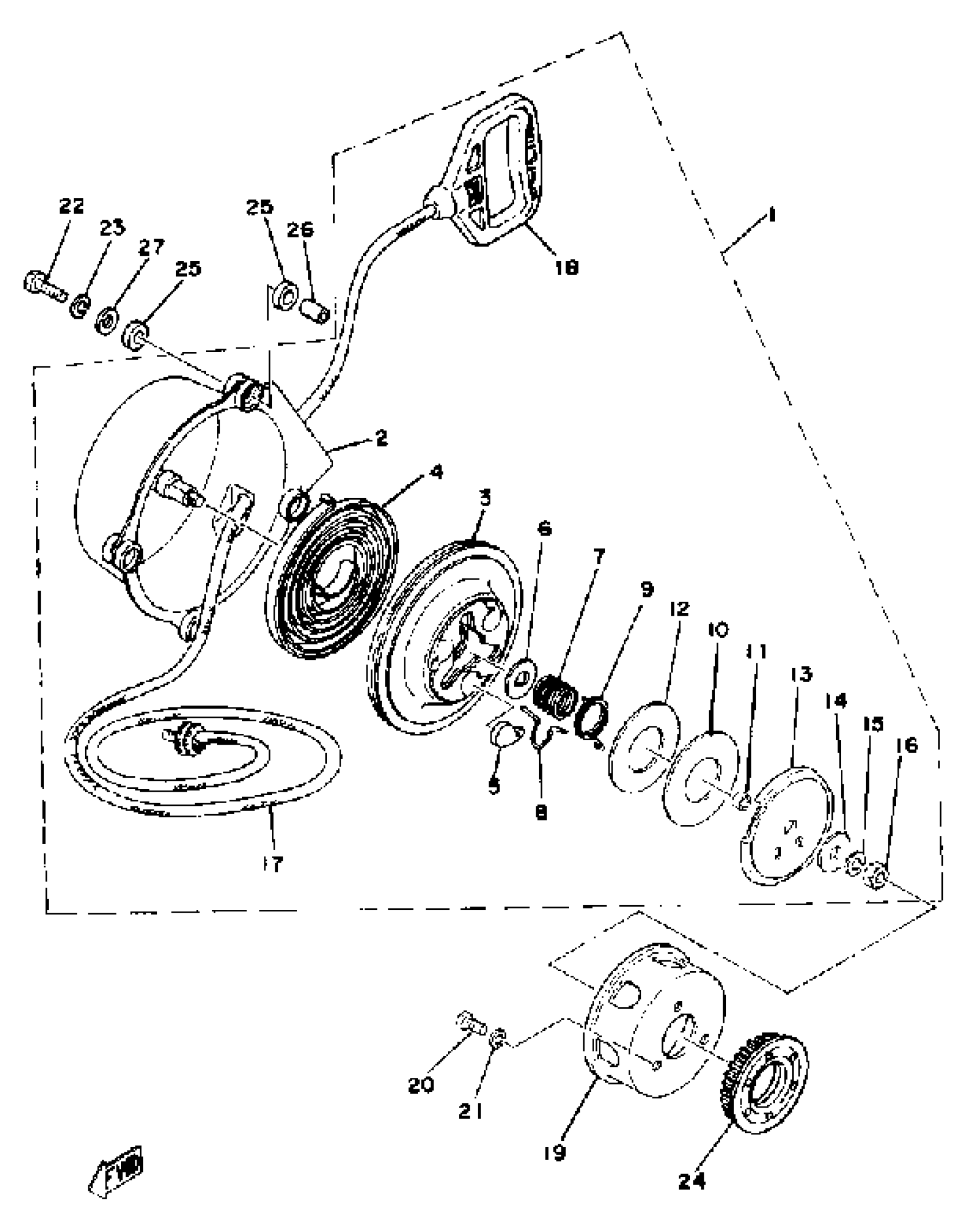

Yamaha SRX440B 1978 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

8G9-15710-00-00

Unavailable

2

. CASE, STARTER

8G9-15711-01-00

Unavailable

3

. DRUM, SHEAVE

857-15714-00-00

Unavailable

4

SPRING, STARTER

8F3-15713-01-00

$48.99

5

. PAWL, DRIVE

616-15741-01-00

Unavailable

6

WASHER, FLAT

(802-15726-00-00)

Unavailable

7

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

8

. SPRING, RETURN

811-15784-00-00

Unavailable

9

. SPRING, RETURN

811-15734-00-00

Unavailable

10

WASHER,THRUST

8A7-15719-00-00

Unavailable

11

. BUSH

8A7-15753-00-00

Unavailable

12

WASHER,THRUST

8A7-15719-00-00

Unavailable

13

. PLATE, DRIVE

8A7-15716-00-00

Unavailable

14

WASHER,FLAT

807-15726-01-00

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

. NUT

95380-08700-00

Unavailable

17

WIRE, STARTER (BRAIDED)

89A-15751-00-00

Unavailable

18

HANDLE, STARTER

8F3-15755-00-00

Unavailable

19

PULLEY, STARTER

(8A7-15723-00-00)

Unavailable

20

BOLT, SOCKET

91317-08030-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

22

BOLT, HEXAGON

97017-06030-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

PULLEY 1

8H0-12441-00-00

Unavailable

25

BUSH, SPEC''L RUBBER

90385-10033-00

Unavailable

26

COLLAR (6.1-12-15.6)

90387-06652-00

Unavailable

27

WASHER PLATE 248217570000

90201-06074-00

Unavailable
