1978 Yamaha SRX440B Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

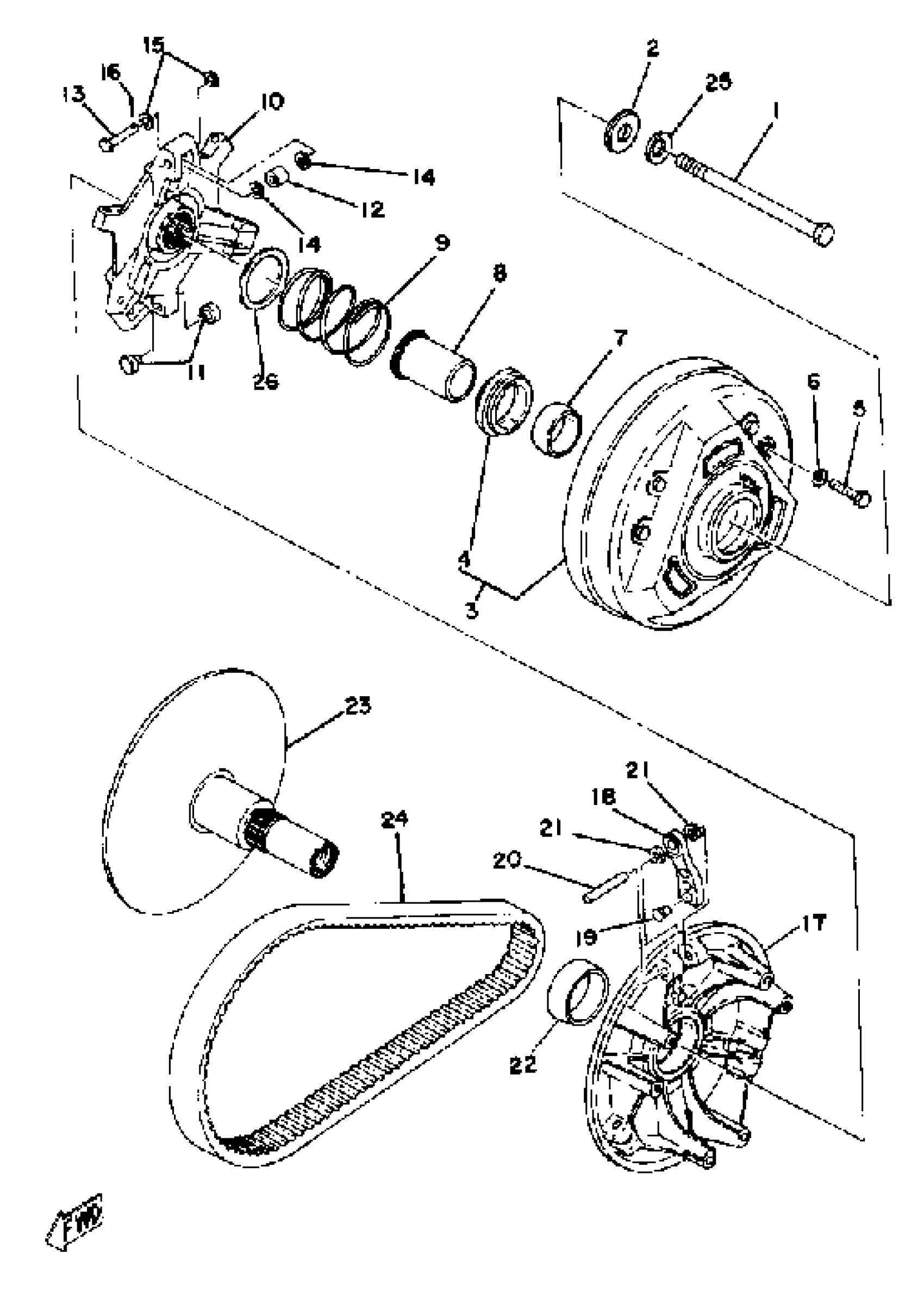

1978 Yamaha SRX440B Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

90101-13406-00

1
Out of stock

2

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

3

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

4

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

5

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

6

WASHER, TOOTH

92901-06400-00

1
Out of stock

7

. BUSH, SPEC''L SHAPE

90389-34019-00

1
Out of stock

8

COLLAR

90387-28721-00

1
Out of stock

9

SPRING, COMPRESSION

(90501-55397-00)

1
Out of stock

10

SPIDER

8A7-17627-00-00

1
Out of stock

11

SLIDER

8F2-17653-00-00

1

$10.03

In stock

12

COLLAR (8A7)

90387-06560-00

1

$6.32

In stock

13

PIN, W/HOLE (8G6)

90240-06062-00

1

$8.97

In stock

14

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

PIN, COTTER

91490-25020-00

—

$2.94

In stock

17

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

18

WEIGHT, CLUTCH

8G9-17632-00-00

1
Out of stock

19

RIVET, CNTRSNK HD

90261-06016-00

1
Out of stock

20

PIN, DOWEL (8V8)

93607-44190-00

—
Out of stock

21

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

22

BUSH, SPEC''L SHAPE

90389-41018-00

1
Out of stock

23

PRI FIXED SHEAVE

8F2-17610-00-00

1
Out of stock

24

V-BELT

89X-17641-01-00

1

$48.52

In stock

25

WASHER, SPRING

90204-13010-00

1
Out of stock

26

CLUTCH TUNE UP KIT

(8G5-00000-50-00)

1
Out of stock

26

PRIMARY SHEAVE ASSEMBLY

8G6-17601-09-00

1
Out of stock

26

CLUTCH WEIGHT KIT

(8G8-17000-10-00)

1
Out of stock

26

WASHER, PLATE

90201-45592-00

1
Out of stock
