1977 Yamaha SRX440A Track Suspension Diagram

← All diagrams

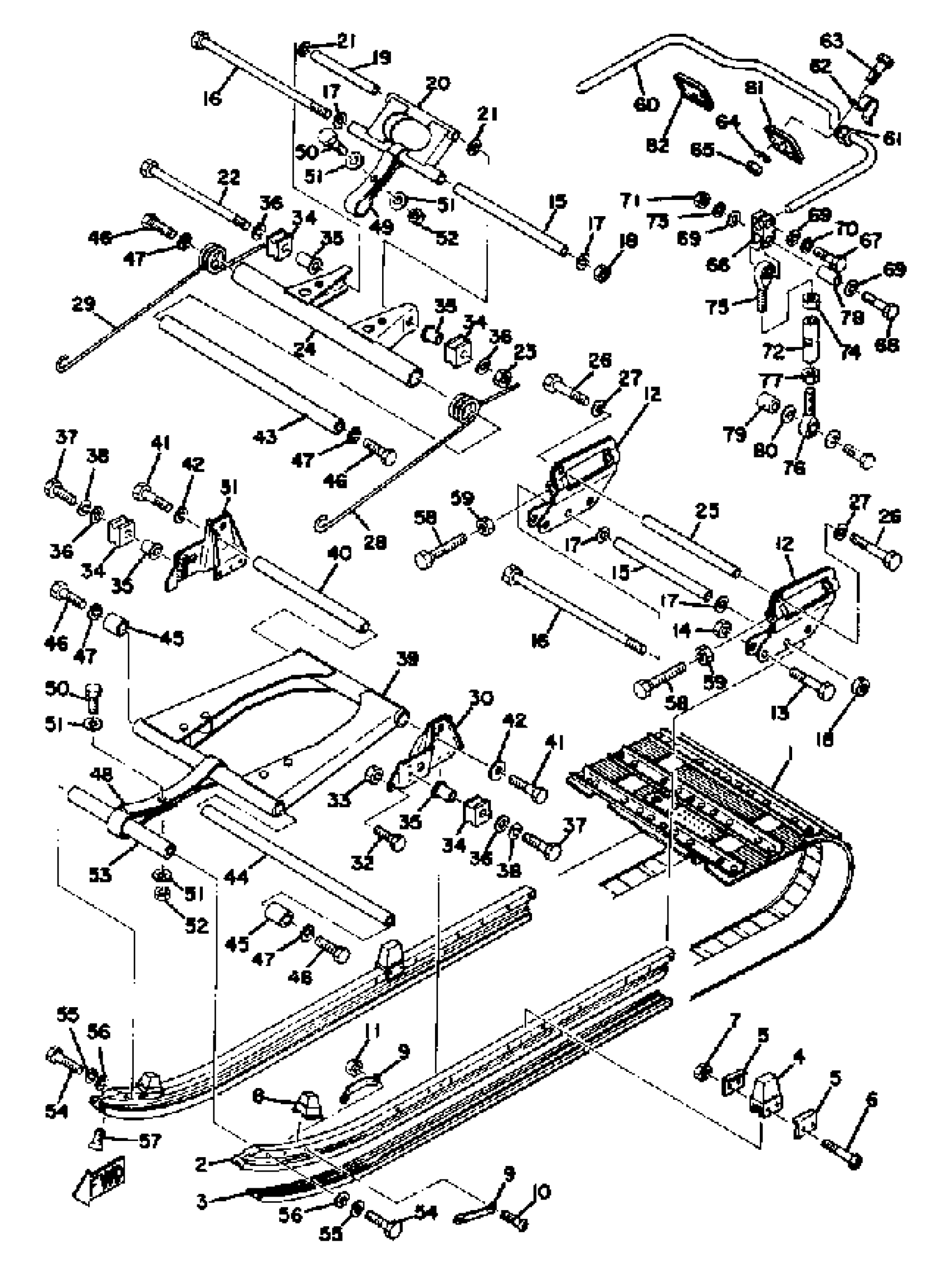

Find the part on the Track Suspension diagram for your 1977 Yamaha SRX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha SRX440A Track Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

8A7-47110-00-00

1
Out of stock

2

FRAME, SLIDING 1

(8F2-47411-00-00)

1
Out of stock

3

RUNNER, SLIDING 1

8A7-47421-10-XX

1
Out of stock

4

DAMPER 1

8F2-47456-01-00

1
Out of stock

5

PLATE, DAMPER

(8F2-47458-02-00)

1
Out of stock

6

SCREW, PAN

98507-05035-00

1

$6.69

In stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

DAMPER 2

885-47457-00-00

1
Out of stock

9

PLATE, DAMPER

885-47458-01-00

1
Out of stock

10

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

11

NUT, NYLON

95707-05300-00

1

$2.74

In stock

12

FRAME, SLIDING 2

8F2-47412-00-00

1
Out of stock

13

BOLT

97013-08035-00

1

$4.80

In stock

14

NUT, NYLON

95717-08300-00

1

$2.57

In stock

15

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

16

BOLT (8M8)

90101-08374-00

—
Out of stock

17

WASHER (1T1)

90201-08649-00

—
Out of stock

18

NUT, NYLON

95717-08300-00

1

$2.57

In stock

19

TUBE, STRUCTURE

(90440-12003-00)

1
Out of stock

20

BRACKET 3

(8A8-47417-00-00)

1
Out of stock

21

WASHER (1T1)

90201-08649-00

—
Out of stock

22

BOLT, HEXAGON

(97321-08225-00)

1
Out of stock

23

NUT, NYLON

95717-08300-00

1

$2.57

In stock

24

ARM, PIVOT 2

8F2-47332-00-00

1
Out of stock

25

BRACKET 2

(8F2-47416-00-00)

1
Out of stock

26

BOLT (682)

97013-08025-00

—

$6.80

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

SPRING, TORSION

90508-90339-00

1
Out of stock

29

SPRING, TORSION

90508-90340-00

1
Out of stock

30

BRACKET 4

(8F2-47418-00-00)

1
Out of stock

31

BRACKET 5

(8F2-47463-00-00)

1
Out of stock

32

BOLT(21W)

97017-06035-00

—

$2.91

In stock

33

NUT, NYLON

95707-06300-00

—

$3.20

In stock

34

HOOK 2

890-47447-00-00

—

$4.35

In stock

35

COLLAR

90387-082G1-00

1
Out of stock

36

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

37

BOLT

97014-08040-00

—

$5.26

In stock

38

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

39

PIVOT ARM 1

8F2-47330-00-00

1
Out of stock

40

SHAFT 3

(8F2-47485-00-00)

1
Out of stock

41

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

42

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

43

SHAFT 1

(8A8-47465-02-00)

1
Out of stock

44

SHAFT 1

(8F2-47465-00-00)

1
Out of stock

45

COLLAR

90387-20592-00

1
Out of stock

46

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

47

WASHER, TTH

92907-10400-00

1
Out of stock

48

STOPPER 1

8F2-47495-01-00

1
Out of stock

49

STOPPER 2

(8F2-47496-00-00)

1
Out of stock

50

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

51

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

52

NUT, NYLON

95707-06300-00

—

$3.20

In stock

53

BRACKET 1

(8F2-47415-00-00)

1
Out of stock

54

BOLT

97014-08040-00

—

$5.26

In stock

55

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

56

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

57

SCREW, FLAT

98707-06020-00

—

$6.69

In stock

58

BOLT, HEXAGON (899 TRACK)

90101-10293-00

—
Out of stock

59

NUT (682)

95380-10700-00

1

$5.78

In stock

60

BAR, STABILIZER

(8F2-47491-00-00)

1
Out of stock

61

GROMMET

90480-10214-00

1
Out of stock

62

BRACKET, STABILIZER

(8F2-47492-00-00)

1
Out of stock

63

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

64

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

65

NUT, NYLON

95707-06300-00

—

$3.20

In stock

66

JOINT

(8F2-47493-00-00)

1
Out of stock

67

BOLT

90101-06M27-00

1

$2.90

In stock

68

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

69

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock

70

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

71

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

72

ROD, RELAY

(8F2-47494-01-00)

1
Out of stock

73

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

74

NUT (682)

95380-10700-00

1

$5.78

In stock

75

JOINT, UNIVERSAL

8F2-47497-00-00

1
Out of stock

76

JOINT, UNIVERSAL 3

87S-23847-01-00

—

$44.71

In stock

77

NUT, HEXAGON

(90170-10214-00)

1
Out of stock

78

. COLLAR

90387-06605-00

1
Out of stock

79

COLLAR

(90387-20604-00)

1
Out of stock

80

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

81

WASHER 1

(8F2-77525-00-00)

1
Out of stock

82

WASHER 2

(8F2-77526-00-00)

1
Out of stock
