1977 Yamaha SRX440A Primary Sheave Diagram

← All diagrams

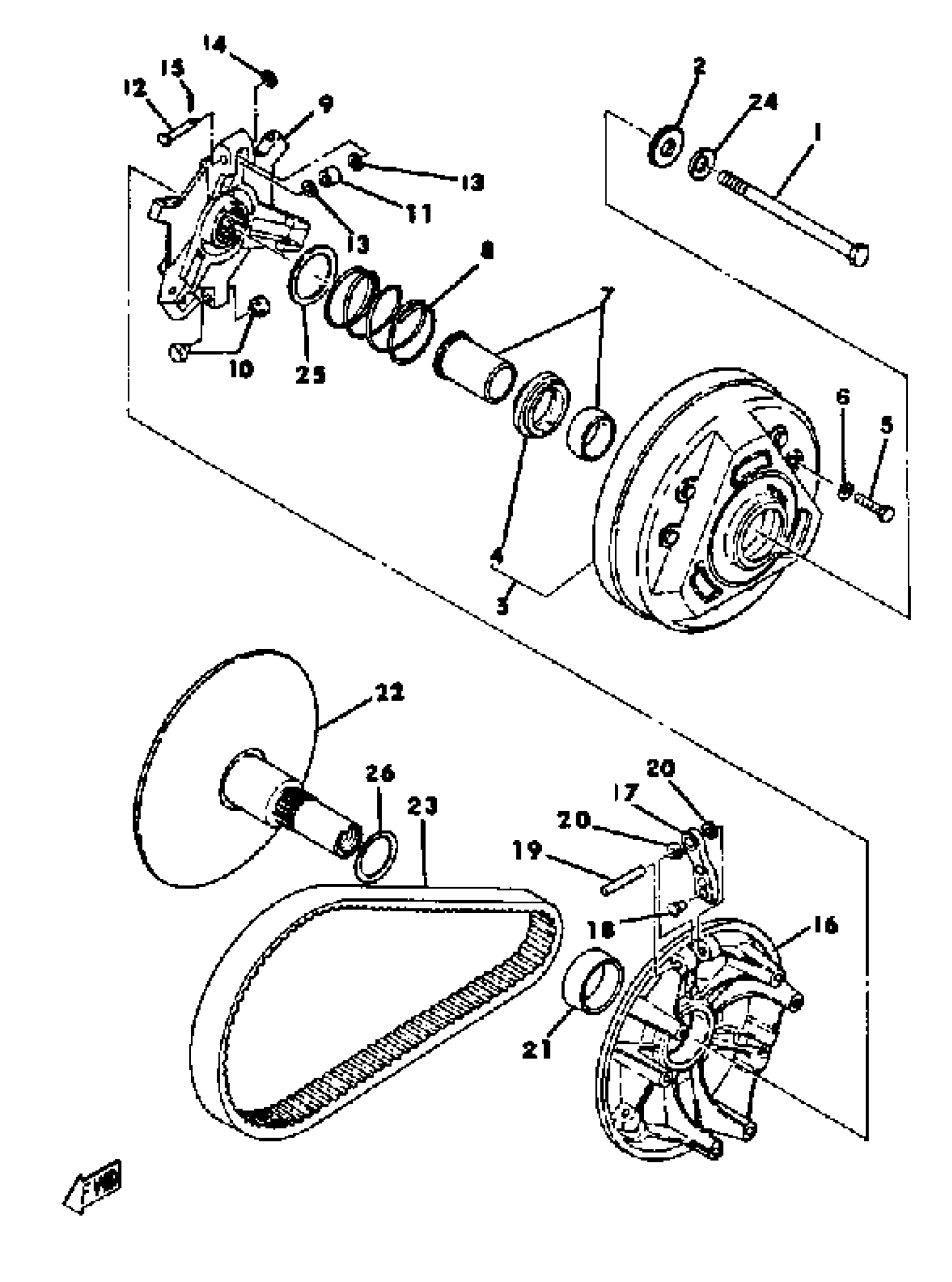

Find the part on the Primary Sheave diagram for your 1977 Yamaha SRX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha SRX440A Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

90101-13406-00

1
Out of stock

2

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

3

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

4

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

5

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

6

WASHER, TOOTH

92901-06400-00

1
Out of stock

7

COLLAR

90387-28721-00

1
Out of stock

7

. BUSH, SPEC''L SHAPE

90389-34019-00

1
Out of stock

7

COVER CASE

(99999-00940-00)

1
Out of stock

8

SPRING, COMPRESSION

90501-55485-00

1
Out of stock

9

SPIDER

8J0-17627-00-00

1
Out of stock

10

SLIDER

8F2-17653-00-00

1

$10.03

In stock

11

COLLAR

90387-06606-00

1
Out of stock

12

PIN, CLEVIS

90240-06056-00

1
Out of stock

13

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

14

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

15

PIN, COTTER

91490-25020-00

—

$2.94

In stock

16

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

17

WEIGHT, CLUTCH

(8F2-17632-09-00)

1
Out of stock

18

RIVET, CNTRSNK HD

90261-06016-00

1
Out of stock

19

PIN, DOWEL

93607-44133-00

1
Out of stock

20

WASHER, PLATE

90201-07650-00

1
Out of stock

21

BUSH, SPEC''L SHAPE

90389-41018-00

1
Out of stock

22

PRI FIXED SHEAVE

8F2-17610-00-00

1
Out of stock

23

V-BELT

89X-17641-01-00

1

$48.52

In stock

24

WASHER, CONICAL SPR

90208-13023-00

1
Out of stock

25

WASHER, PLATE

90201-45592-00

1
Out of stock

26

WASHER, CLAW

(90214-30014-00)

1
Out of stock
