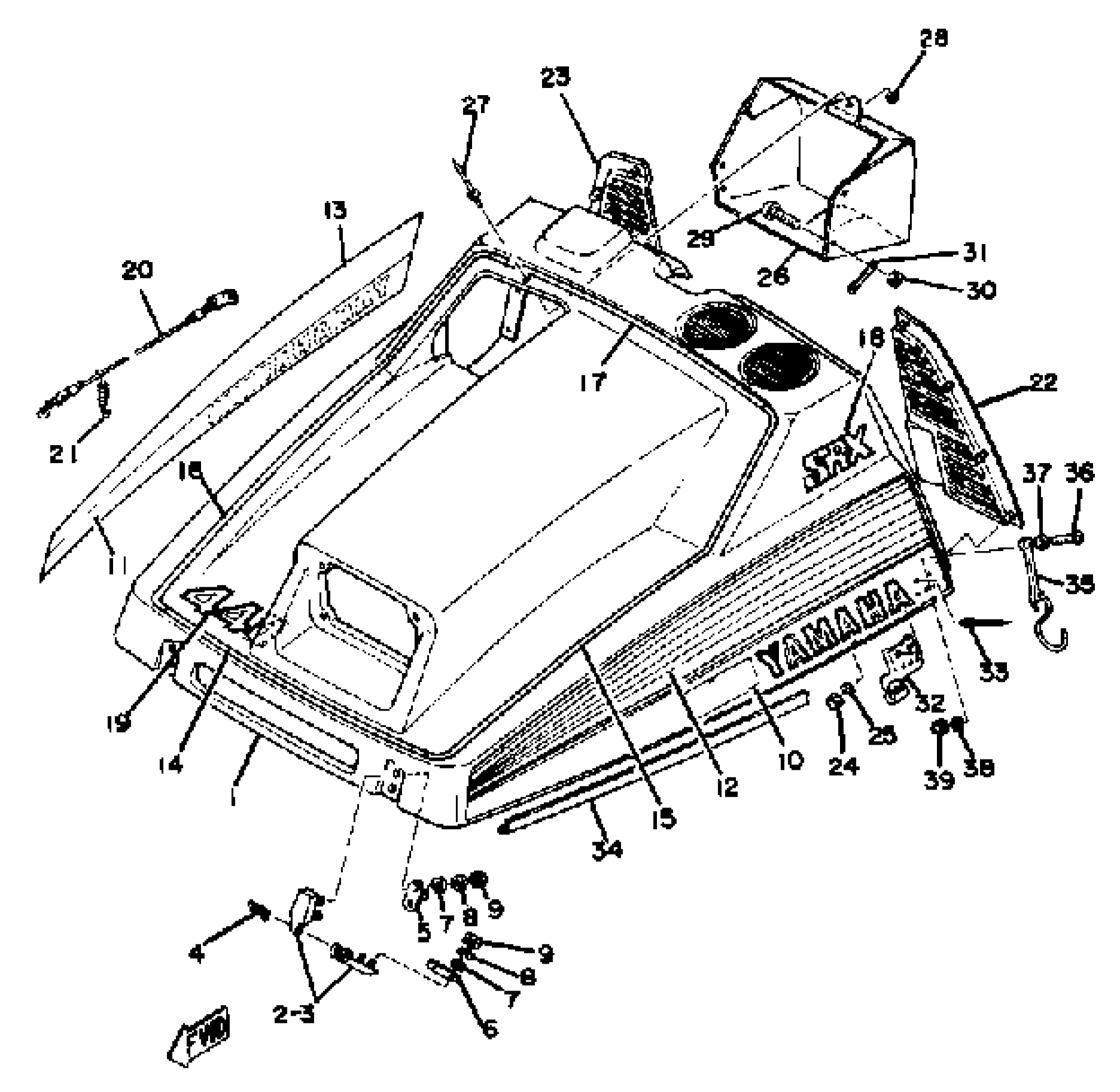

Yamaha SRX440A 1977 SHROUD Diagram
#
1
HINGE ASSEMBLY
878-77140-00-00
Unavailable
1
SHROUD ASSEMBLY
8F2-W7711-00-00
Unavailable
2
TOOL
UNA-VAILA-BL-EI
Unavailable
3
TOOL
UNA-VAILA-BL-EI
Unavailable
4
PIN, HINGE
8A7-77157-00-00
Unavailable
5
PLATE, BACK UP 1
8G6-77153-00-00
Unavailable
6
PLATE, BACK UP 2
878-77154-00-00
Unavailable
7
WASHER, PLAIN (646)
92990-06600-00
$2.80
8
WASHER, SPRING
92995-06100-00
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
10
ORNAMENT 1
8F2-77163-00-00
Unavailable
11
ORNAMENT 2
(8F2-77164-00-00)
Unavailable
12
ORNAMENT
(99999-01358-00)
Unavailable
13
ORNAMENT 5
(8F2-77114-00-00)
Unavailable
14
STRIPE 2
(8A7-77282-00-00)
Unavailable
15
STRIPE 3
(8F2-77283-00-00)
Unavailable
16
STRIPE 4
(8F2-77284-00-00)
Unavailable
17
STRIPE 5
(8A7-77285-00-00)
Unavailable
18
EMBLEM 6
(8F2-77356-00-00)
Unavailable
19
EMBLEM 8
(8F2-77358-00-00)
Unavailable
20
STOPPER, SHROUD
8F2-77118-00-00
Unavailable
21
CLAMP,ROD
838-77159-00-00
Unavailable
22
LOUVER 1
8A5-77131-01-00
Unavailable
23
LOUVER 2
8A5-77132-01-00
Unavailable
24
NUT, NYLON
95707-05300-00
Unavailable
25
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
26
DUCT
(8K2-77194-00-00)
Unavailable
27
RIVET, BLIND
90267-489UJ-00
Unavailable
28
WASHER, PLATE
90201-04027-00
Unavailable
29
SCREW, BIND
98903-05016-00
Unavailable
30
NUT, NYLON
95707-05300-00
Unavailable
31
WASHER, SPECIAL
(8A7-77116-00-00)
Unavailable
32
CLAMP 2
(8F2-77136-00-00)
Unavailable
33
RIVET, BLIND
90267-40936-00
Unavailable
34
STRIP, WEATHER 1
(8A7-77161-01-00)
Unavailable
35
LATCH ASSEMBLY
856-77170-00-00
Unavailable
36
SCREW, BIND(J39)
98980-06030-00
Unavailable
37
WASHER, PLATE
90201-06380-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
$2.80
39
NUT, NYLON
95707-06300-00
Unavailable
