SECONDARY SHEAVE

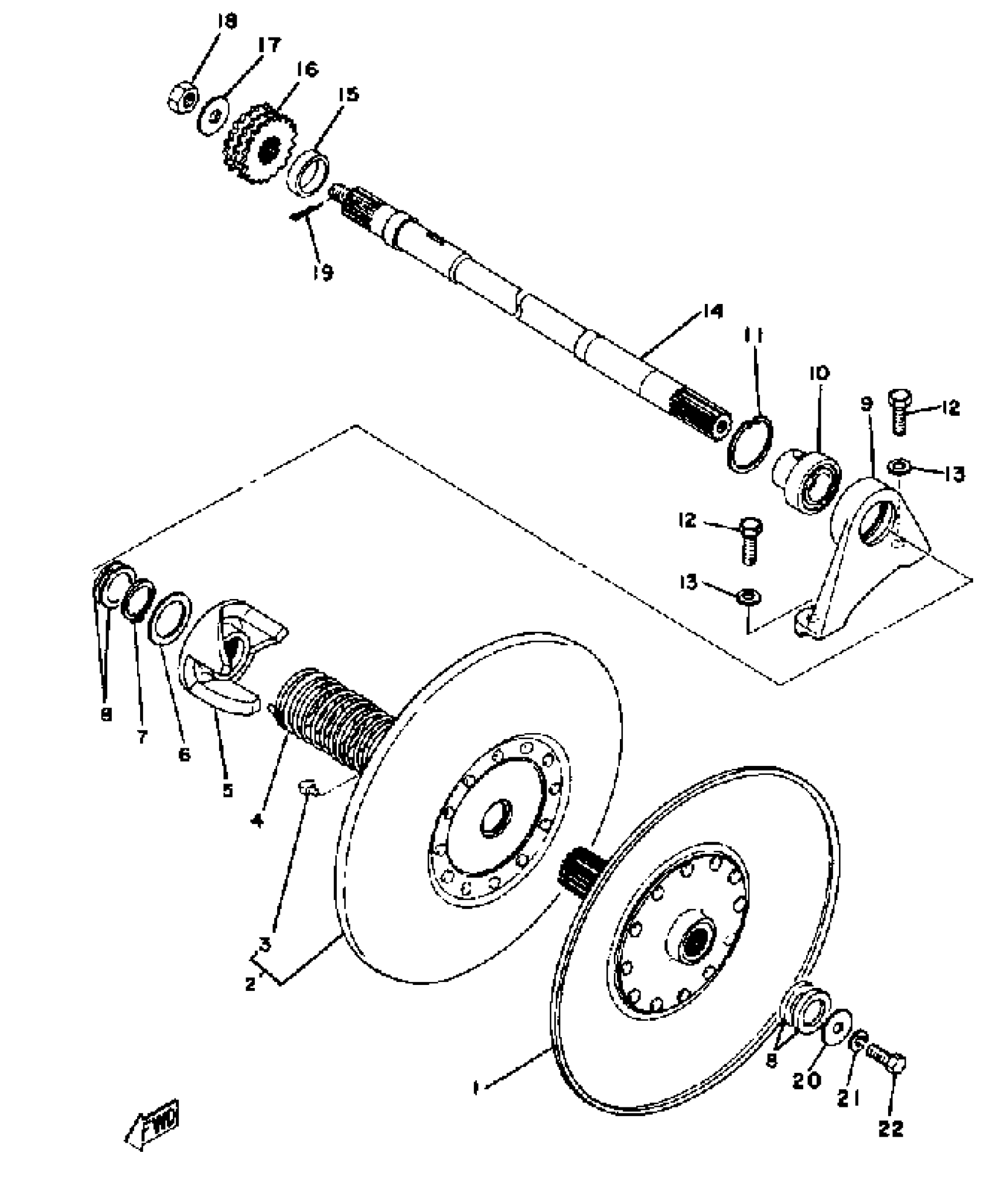

Yamaha SRX440A 1977 SECONDARY SHEAVE Diagram
#
Description
Price
1
SEC FXD SHVSHEAVE COMP.
8A5-17660-01-00
Unavailable
2
SEC SLIDING SHEAVE
(8F2-17670-00-00)
Unavailable
3
SHOE RAMP
8X6-17688-00-00
$8.49
4
SPRING, TORSION
90508-40341-00
Unavailable
5
SEAT, SEC SPRING
8A7-17684-00-00
Unavailable
6
SHIM (856-17687-00)
90564-34003-00
Unavailable
7
CIRCLIP(86F)
93440-34170-00
$8.49
8
WASHER, PLATE (888)
90201-25526-00
$9.49
8
WASHER, PLATE (888)
90201-25527-00
$10.49
8
SPACER (25-36-5.0)
99999-01011-00
Unavailable
9
HOUSING, BEARING
878-47631-00-00
Unavailable
10
BEARING
888-17678-00-00
Unavailable
11
CIRCLIP(26H)
99009-52500-00
$12.49
12
BOLT (8J7)
97013-10030-00
$10.49
13
WASHER, PLATE 3711117500
90201-10124-00
$9.49
14
SHAFT, SECONDARY
(8A7-17680-00-00)
Unavailable
15
COLLAR
90387-25259-00
Unavailable
16
SPRKT, CHAIN DR 15T
(8A8-17682-50-00)
Unavailable
16
SPRKT, CHAIN DR 16T
(8A8-17682-60-00)
Unavailable
16
SPRKT, CHAIN DR 17T
(8A8-17682-70-00)
Unavailable
16
SPRKT, CHAIN DR 18T
(8A8-17682-80-00)
Unavailable
16
SPRKT, CHAIN DR 19T
8A8-17682-90-00
Unavailable
17
WASHER, PLATE
90201-14319-00
Unavailable
18
NUT(6TC)
95337-14600-00
Unavailable
19
PIN, COTTER
91490-30030-00
Unavailable
20
WASHER, PLATE (856)
90201-10321-00
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
BOLT(6TD)
97017-10025-00
Unavailable
