Description

Price

1

AXLE, REAR

(8F2-47521-00-00)

Unavailable

2

COLLAR 3

885-47479-00-00

Unavailable

3

PIN, SPRING (663)

91690-40040-00

Unavailable

4

WHEEL, GUIDE 2

(865-47535-01-00)

Unavailable

5

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

6

CIRCLIP(48Y)

99009-47500-00

$9.49

7

WASHER (7A9)

90201-100F7-00

$9.49

8

BOLT(M35)

90101-10776-00

Unavailable

9

SUSPENSION WHEEL

(8F2-47320-00-00)

Unavailable

10

BEARING(8AB)

93306-00444-00

$41.99

11

CIRCLIP(5U8)

99009-42500-00

$8.49

12

WHEEL, GUIDE 2

(865-47535-01-00)

Unavailable

12

WHEEL, SUSPENSION 2ALTERNATE PARTSADDITIONAL WHEEL

8F2-47312-00-00

Unavailable

13

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$42.99

13

CIRCLIP(48Y)

99009-47500-00

$9.49

14

TUBE, STRUCTURE

(90440-36005-00)

Unavailable

15

WASHER, PLATE

90201-40659-00

Unavailable

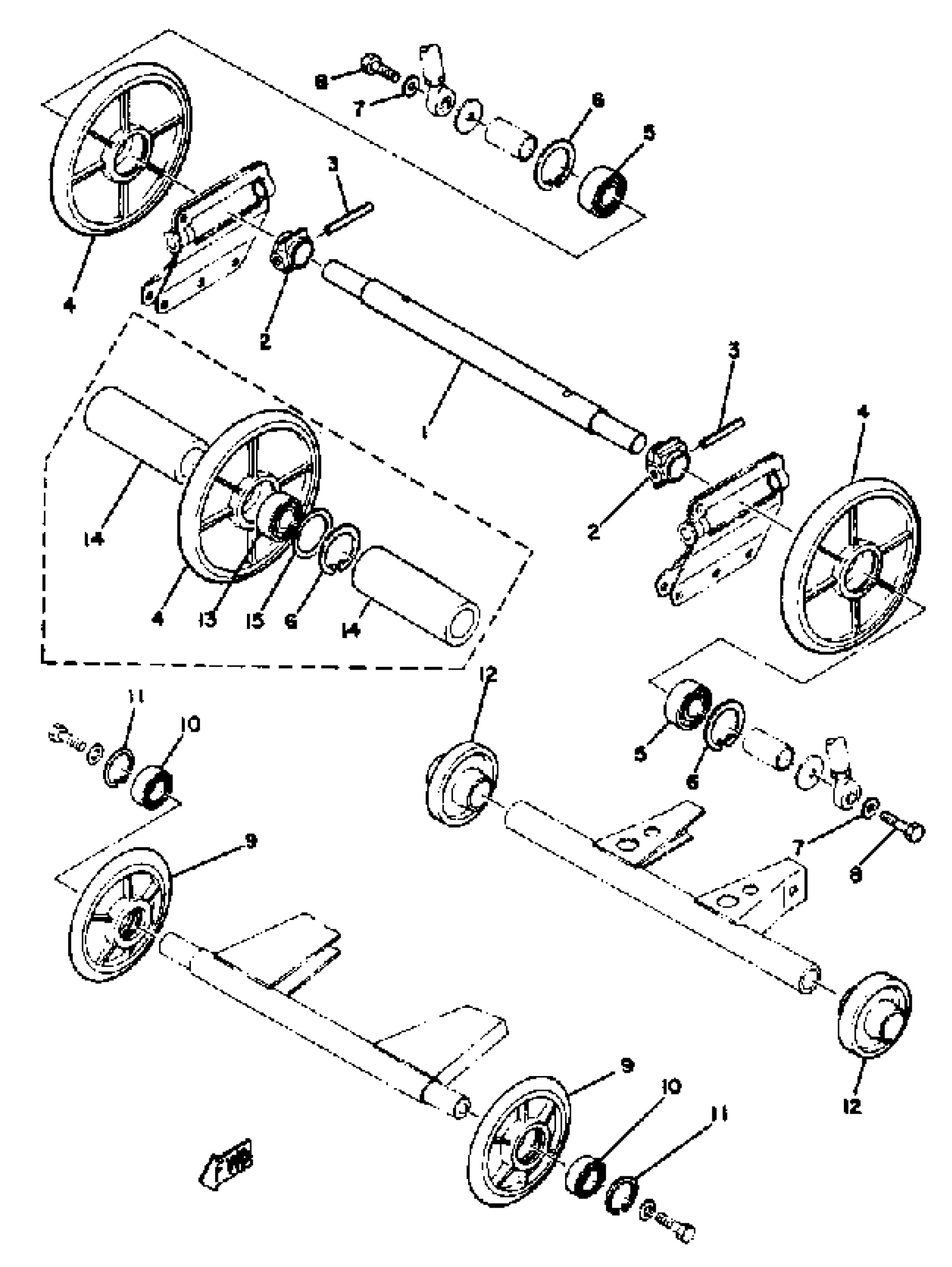

Yamaha SRX440A 1977 REAR AXLE - WHEEL Diagram

AXLE, REAR

COLLAR 3

PIN, SPRING (663)

WHEEL, GUIDE 2

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

WASHER (7A9)

BOLT(M35)

SUSPENSION WHEEL

BEARING(8AB)

CIRCLIP(5U8)

WHEEL, GUIDE 2

WHEEL, SUSPENSION 2ALTERNATE PARTSADDITIONAL WHEEL

BRG,R-B 6005 47MM 85G KY

CIRCLIP(48Y)

TUBE, STRUCTURE

WASHER, PLATE
