1977 Yamaha SRX440A Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha SRX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

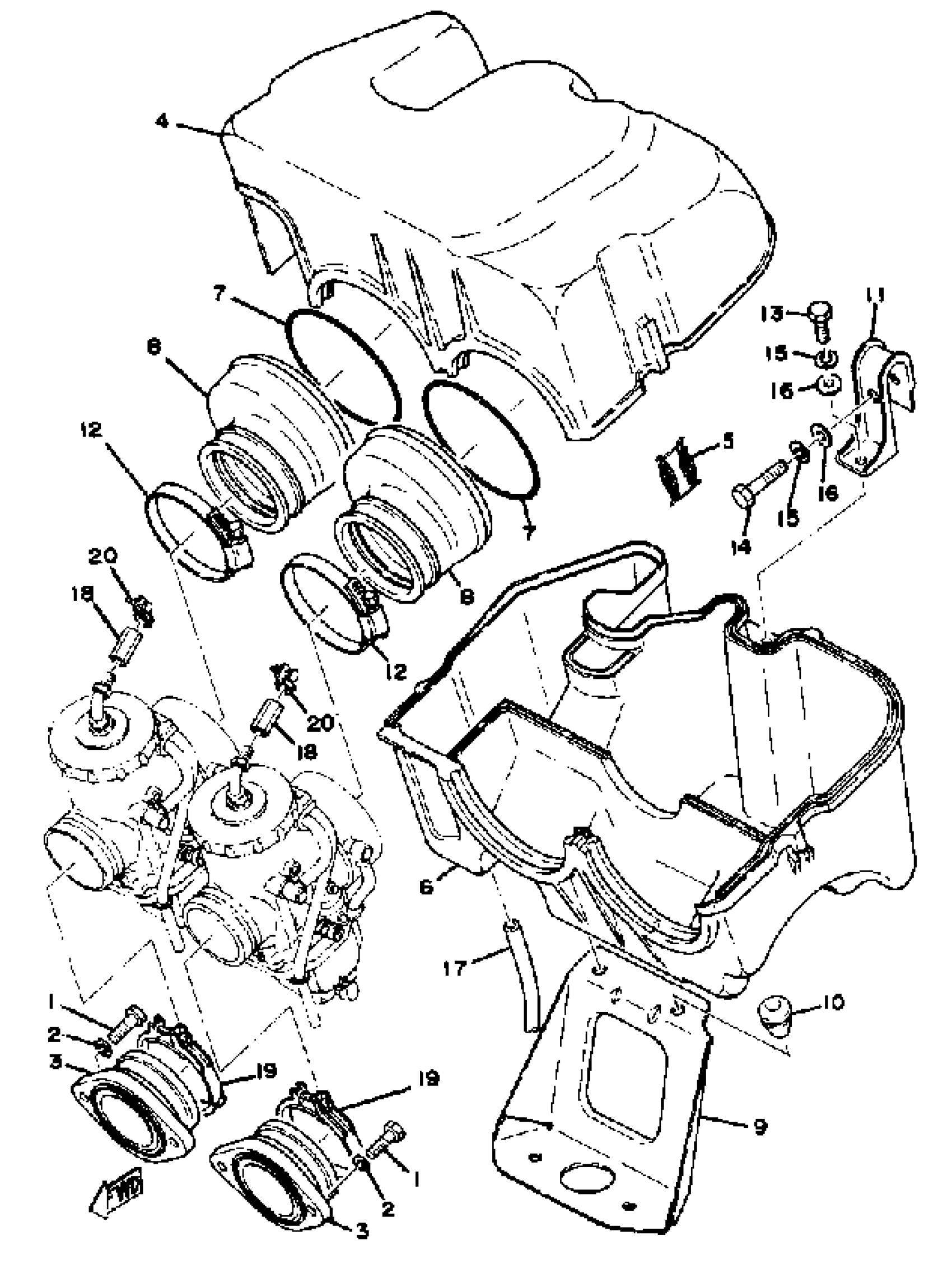

1977 Yamaha SRX440A Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

2

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

3

MANIFOLD, INTAKE

(8F2-13555-00-00)

1
Out of stock

4

SILENCER, INTAKE 1

(8G9-14431-00-00)

1
Out of stock

5

SPRING, TENSION (90507-12014)

90507-12041-00

1
Out of stock

6

SILENCER, INTAKE 2

(8F2-14441-00-00)

1
Out of stock

7

GUIDE, ELEMENT

8A7-14458-00-00

1
Out of stock

8

JOINT, AIR CLNR 1

8F2-14453-01-00

1
Out of stock

9

STAY 2

(8F2-14499-00-00)

1
Out of stock

10

GROMMET (439)

90480-11057-00

1
Out of stock

11

STAY 2

8A7-14494-00-00

1
Out of stock

12

CLAMP, HOSE

90460-70080-00

1
Out of stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

HOSE

(90445-09102-00)

1
Out of stock

18

NUT, AJUSTING

8A7-26323-00-00

1
Out of stock

19

CLAMP, HOSE

90460-60084-00

1
Out of stock

20

CLIP(3BM)

90467-10135-00

—

$6.91

In stock
