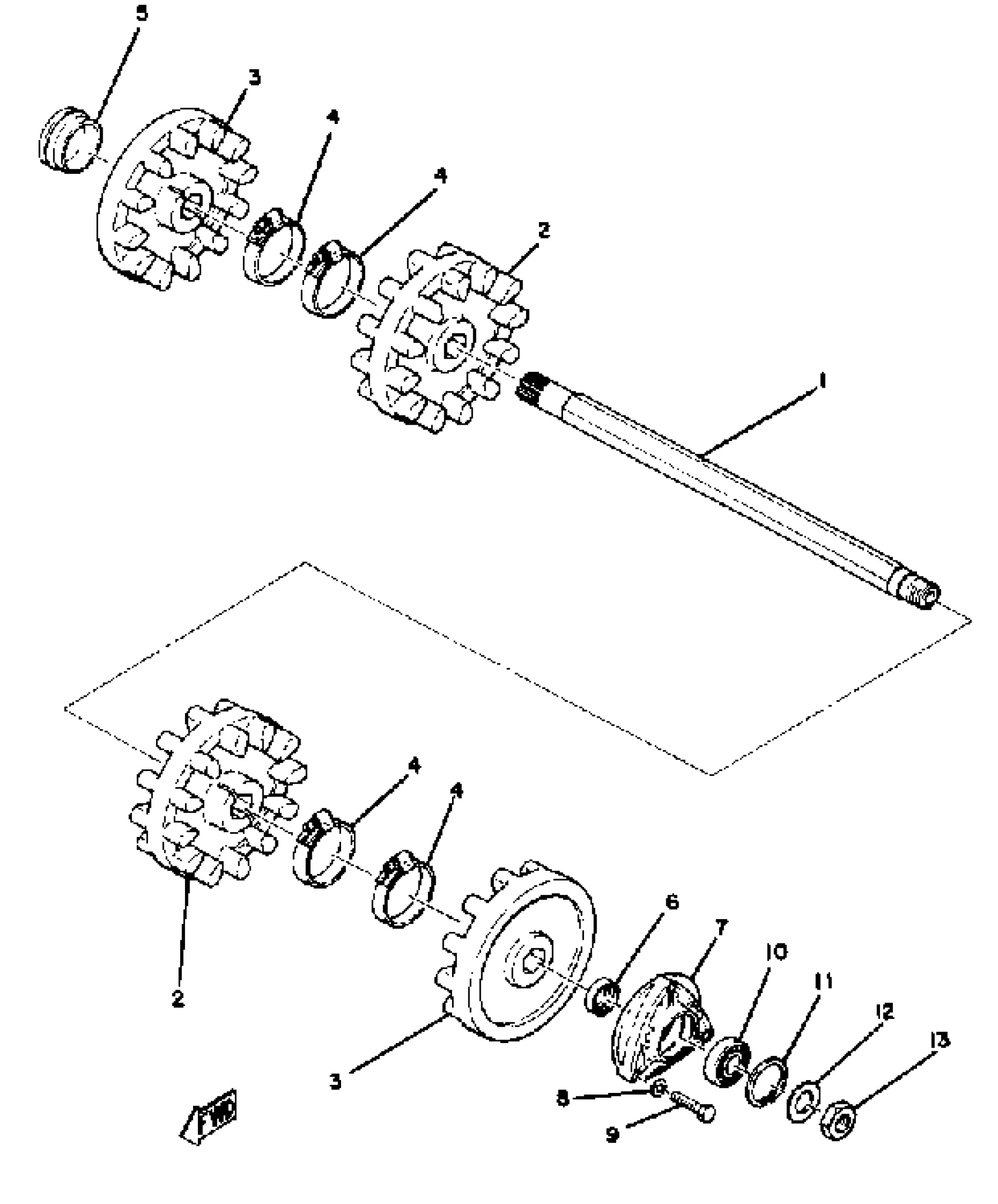

Yamaha SRX440A 1977 FRONT AXLE Diagram

#

Description

Price

1

AXLE, FRONT

8A5-W4751-00-00

Unavailable

2

WHEEL, SPROCKET 1

(8A7-47531-00-00)

Unavailable

3

WHEEL, SPROCKET 2

8A7-47532-00-00

Unavailable

4

BAND (MADE IN CANADA)

90460-50079-00

Unavailable

5

CAP (NOT AVAIL)

810-47552-00-00

Unavailable

6

OIL SEAL,SD-TYPE

93102-25332-00

Unavailable

7

HOUSING, FRONT AXLE

841-47551-00-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT (682)

97013-08025-00

$8.49

10

BEARING

93306-00412-00

Unavailable

11

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

12

WASHER 810475810000

90208-22001-00

$8.49

13

NUT (821-47579-00)

90170-22094-00

$5.60
