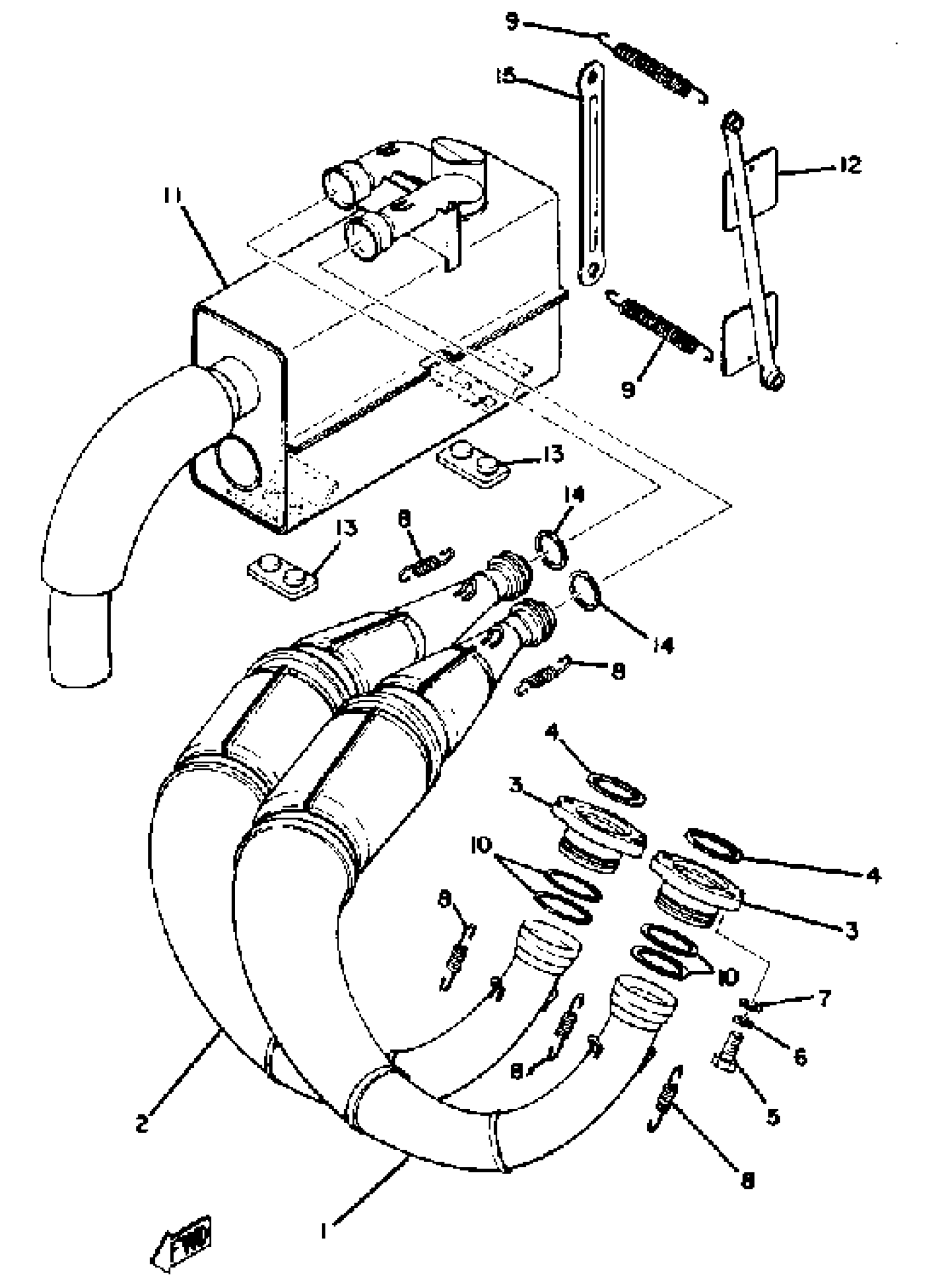

Yamaha SRX440A 1977 EXHAUST Diagram

#

Description

Price

1

EXHAUST PIPE ASSEMBLY L

8F2-14610-01-00

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(8F2-14620-01-00)

Unavailable

3

NUT, RING

8J0-14612-00-00

Unavailable

4

GASKET, EXHAUST

8A7-14613-09-00

$9.99

5

BOLT (682)

97013-08025-00

$8.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

SPRING, HOOK (888)

90506-20115-00

Unavailable

9

SPRING, TENSION 78F2)

90506-20158-00

Unavailable

10

RING

888-14633-00-00

Unavailable

11

2ND SILENCER, MUFF

8F2-14640-00-00

Unavailable

12

STAY, 2ND SILENSER

(8F2-14659-01-00)

Unavailable

13

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

14

RING

8F2-14633-00-00

Unavailable

15

STAY, PROTECTOR

8F2-14629-00-00

Unavailable
