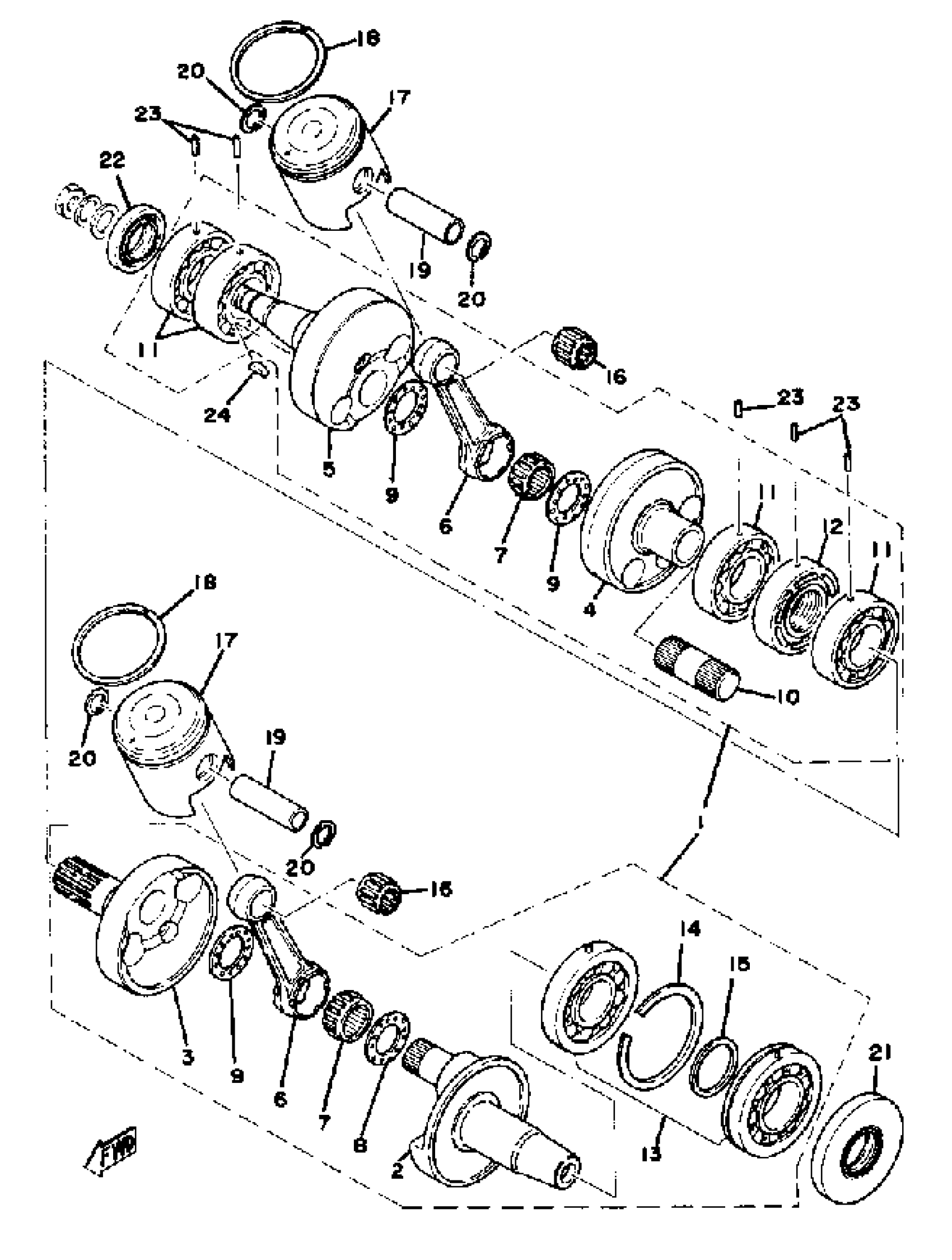

Yamaha SRX440A 1977 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(8F2-11400-00-00)

Unavailable

2

CRANK 1

(8F2-11412-00-00)

Unavailable

3

. CRANK 2

8A7-11422-00-00

Unavailable

4

. CRANK 3

878-11432-00-00

Unavailable

5

CRANK 4

(8F2-11442-00-00)

Unavailable

6

ROD, CONNECTING

(8F2-11651-01-00)

Unavailable

7

. BEARING, CYLINDRICAL

93310-424L8-00

Unavailable

8

WASHER, CRANK PIN

8A7-11685-00-00

$24.99

9

WASHER (152-11685-00)

90209-24073-00

$14.99

10

PIN, CRANK 1

(8F2-11681-00-00)

Unavailable

11

BEARING(8V0)

93306-20633-00

$76.99

12

. SEAL, LABYRINTH 1

8A7-11515-00-00

Unavailable

13

. BEARING ASSEMBLY 1 001

8F2-11415-00-00

Unavailable

14

CIRCLIP, OUTER

93440-78011-00

Unavailable

15

WASHER (8H0)

90201-34683-00

$10.49

16

BEARING, CYLINDER.#10

93310-318F5-00

Unavailable

17

PISTON STD

8F2-11631-02-93

Unavailable

18

RING, PISTON STD

8F2-11611-00-00

Unavailable

19

PIN, PISTON

8F2-11633-01-00

Unavailable

20

CIRCLIP (8F2)

93450-19047-00

Unavailable

21

OIL SEAL (878).

93103-32095-00

Unavailable

22

OIL SEAL(83R)

93103-32156-00

Unavailable

23

PIN,DOWEL (168)

93604-12037-00

Unavailable

24

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable
