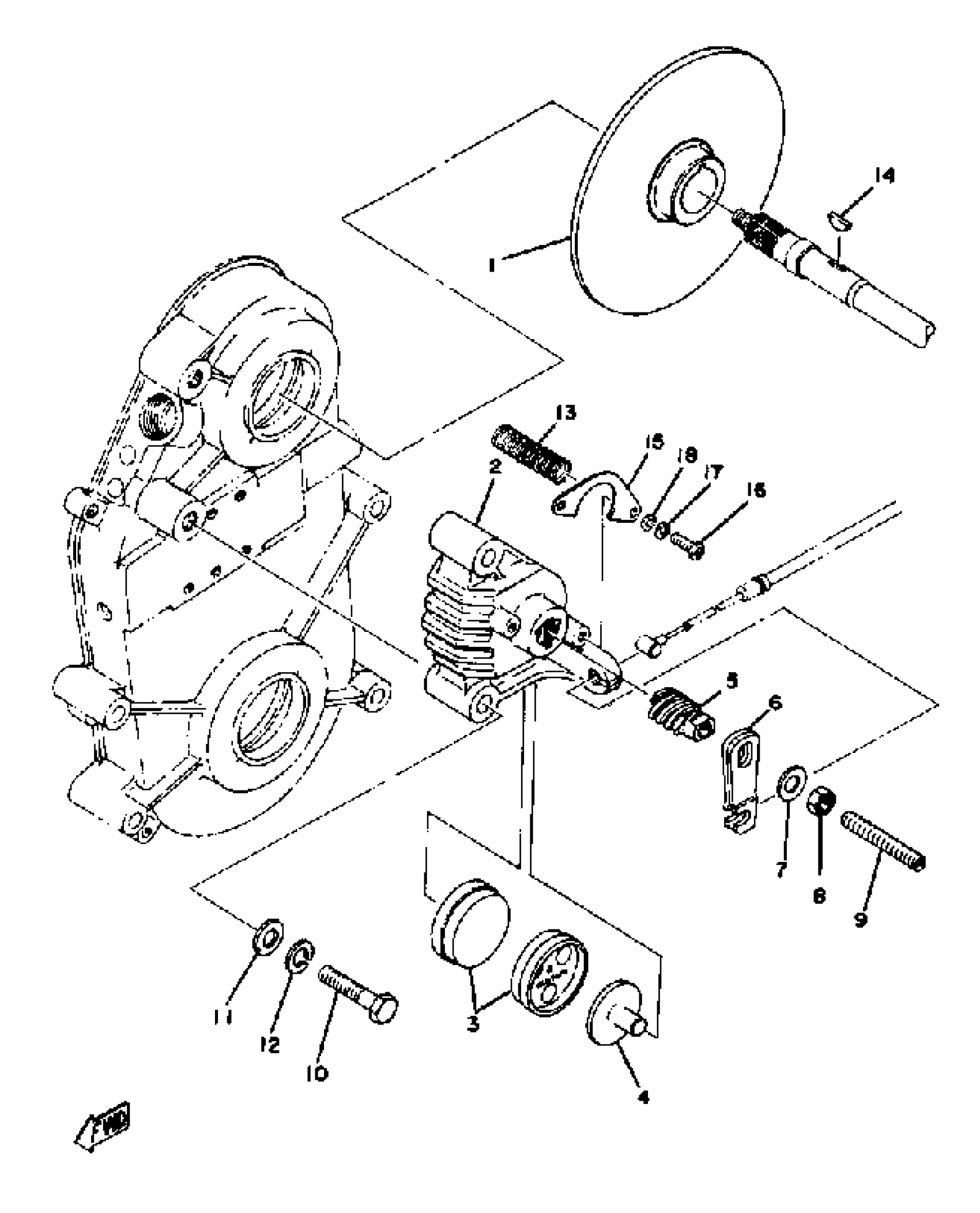

Yamaha SRX440A 1977 BRAKE Diagram

#

Description
Price

1

DISC, BRAKE

888-25831-00-00

Unavailable

2

BODY, CALIPER 1

8A7-25731-00-00

Unavailable

3

PAD, CALIPER 2

89J-25811-00-00

$27.99

4

PLATE, BACK UP

878-25733-00-00

Unavailable

5

CAM

878-25728-00-00

Unavailable

6

LEVER, BRAKE

878-25726-00-00

Unavailable

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

. NUT

95380-08700-00

Unavailable

9

SCREW, SPEC''L SHAPE

(90149-08101-00)

Unavailable

10

BOLT

97012-10060-00

Unavailable

11

WASHER, PLATE

92990-10600-00

Unavailable

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

SPRING, TORSION

90508-35293-00

Unavailable

14

KEY

8J7-25848-00-00

$15.99

15

HOOK, SPRING

(8A7-25736-00-00)

Unavailable

16

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

WASHER, PLAIN (646)

92990-05600-00

Unavailable
