1976 Yamaha SRX440 Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

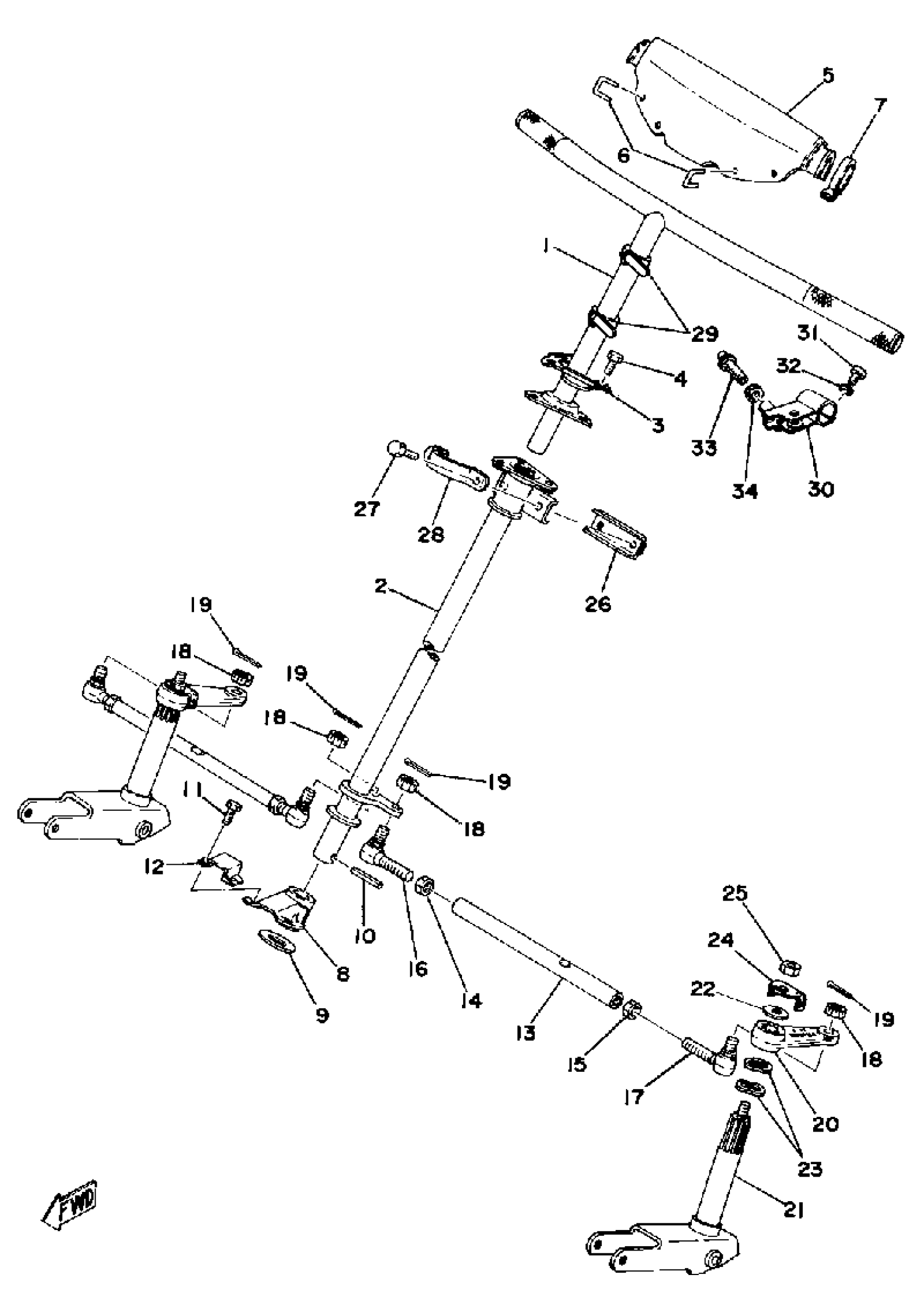

1976 Yamaha SRX440 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(8A7-23811-00-00)

1
Out of stock

2

COLUMN, STEERING 2

8A5-23813-00-00

1
Out of stock

3

WASHER, LOCK 1

(888-23894-00-00)

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

PAD, STEERING (878-23815-00)

878-23815-01-00

1
Out of stock

6

CLAMP

(90465-05024-00)

1
Out of stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

8

BRACKET STEER LOWR

99999-01162-00

1
Out of stock

9

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

10

PIN, SPRING

91609-60040-00

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

12

WASHER, LOCK 2

(888-23895-00-00)

1
Out of stock

13

ROD, STEERING RELAY

888-23821-00-00

1
Out of stock

14

. NUT, HEXAGON (802-23833-00)

90170-10082-00

1
Out of stock

15

NUT, HEXAGON

(90170-10135-00)

1
Out of stock

16

JOINT, UNIVERSAL 1

888-23841-91-00

1
Out of stock

17

JOINT, UNIVERSAL 2

888-23845-91-00

1
Out of stock

18

NUT, SLOTTED

95306-10900-00

1
Out of stock

19

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

20

ARM, OUTSIDE 1

888-23851-00-00

1
Out of stock

21

COLUMN, SKI 1

888-23853-01-00

1
Out of stock

22

WASHER, PLATE (3J6)

90201-100A1-00

—

$6.71

In stock

23

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

24

WASHER, LOCK

90215-10096-00

1
Out of stock

25

NUT(3BM)

95314-10600-00

—

$1.74

In stock

26

HOLDER, BEARING

(878-23872-00-00)

1
Out of stock

27

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

28

WASHER, LOCK

90215-06054-00

1
Out of stock

29

BAND

341-26397-01-00

1
Out of stock

30

HOLDER, LEVER 1

8A7-82911-00-00

1
Out of stock

31

SCREW, PAN

98507-06014-00

—

$6.18

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

BOLT

90123-08002-00

—

$8.93

In stock

34

NUT

90179-08030-00

—

$3.78

In stock
