1976 Yamaha SRX440 SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

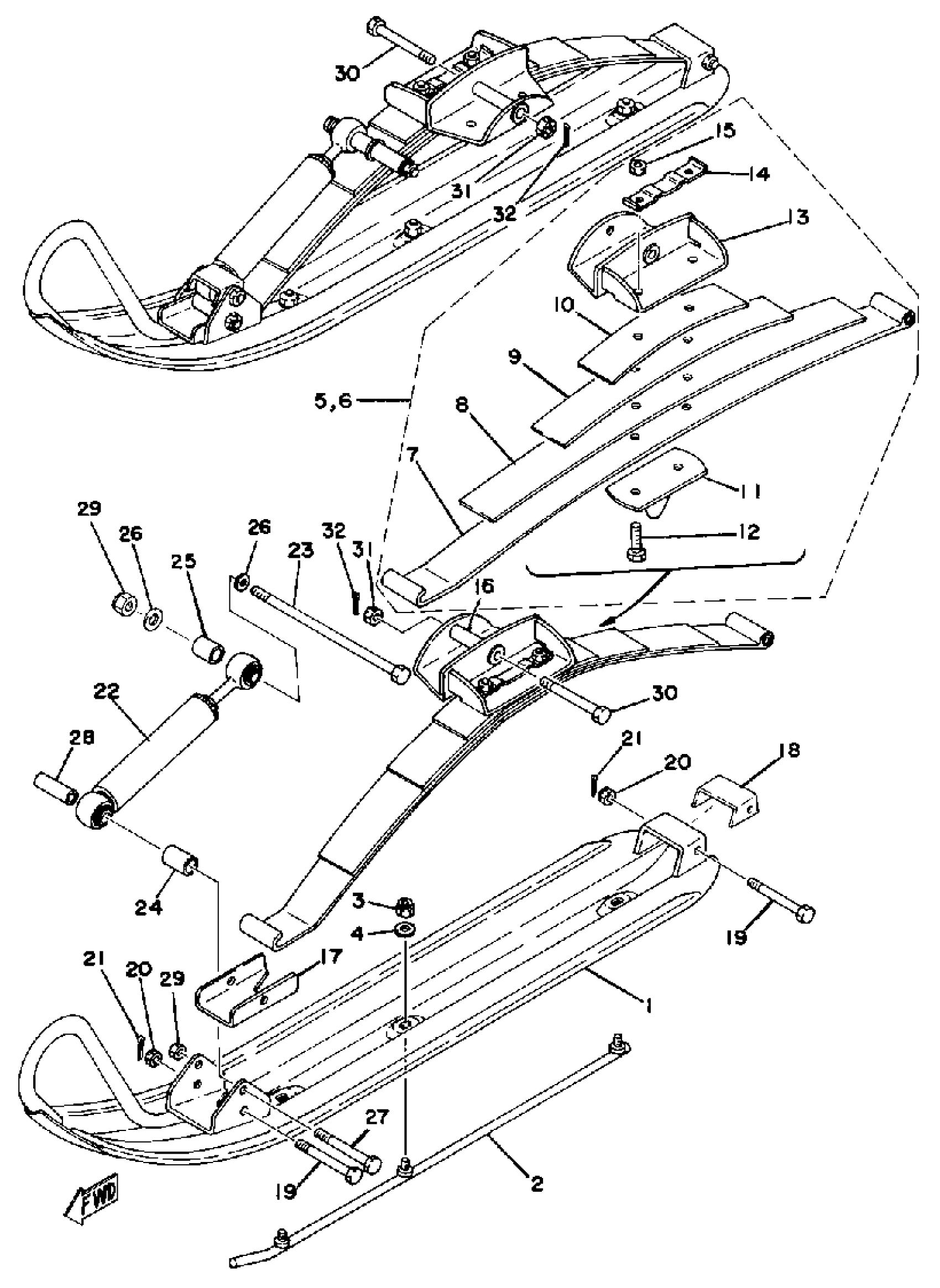

1976 Yamaha SRX440 SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(8A7-23710-00-00)

1
Out of stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

SPRING ASSEMBLY 1

(8A7-23760-00-00)

1
Out of stock

6

SPRING ASSEMBLY 2

(8A7-23770-00-00)

1
Out of stock

7

LEAF 1

888-23761-10-00

1
Out of stock

8

LEAF 2

865-23762-10-00

1
Out of stock

9

LEAF 3

888-23763-00-00

1
Out of stock

10

. LEAF 5

865-23771-00-00

1
Out of stock

11

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

12

. BOLT

90109-105E1-00

1
Out of stock

13

SADDLE 1

(8A7-23766-00-00)

1
Out of stock

14

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

15

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

16

COLLAR

90387-08478-00

1
Out of stock

17

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

18

PLATE, WEAR 2

8A7-23736-00-00

1
Out of stock

19

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

20

NUT, SLOTTED

95307-08900-00

1
Out of stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

SHOCK ABSORBER ASSEMBLY

8G9-23350-00-00

1
Out of stock

23

BOLT

90109-08435-00

1
Out of stock

24

COLLAR (808-83326-00)

90387-12106-00

1
Out of stock

25

COLLAR

90387-12534-00

1
Out of stock

26

WASHER (853)

90201-08326-00

—

$6.17

In stock

27

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

28

COLLAR (864)

90387-08224-00

—

$7.52

In stock

29

NUT, U

95617-08100-00

1

$6.78

In stock

30

BOLT, WITH HOLE

90102-12022-00

1
Out of stock

31

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

32

PIN, COTTER

91490-30030-00

—

$7.15

In stock
