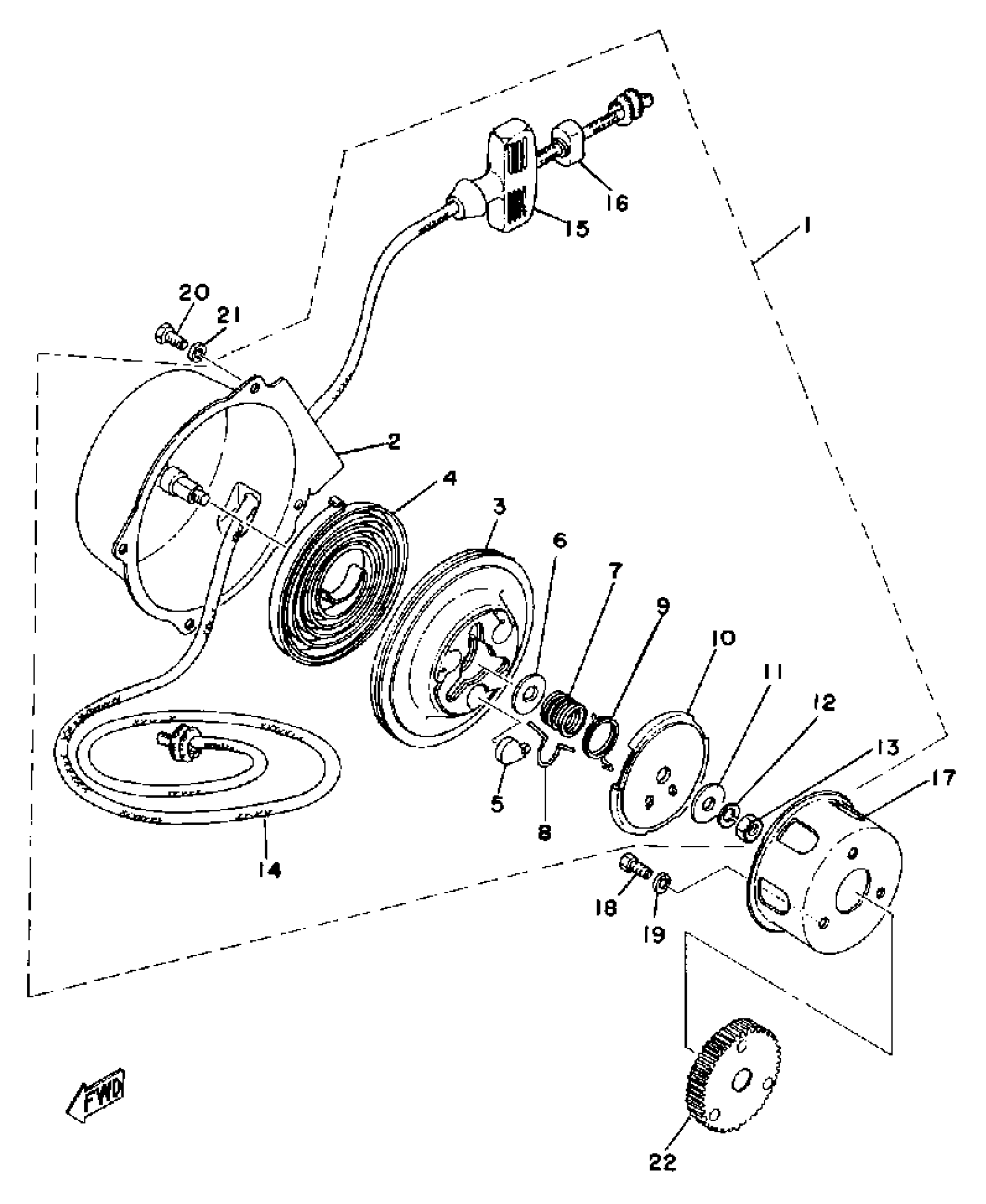

Find the part on the Starter diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

8A7-15710-01-00

1
Out of stock

2

. CASE, STARTER

8A7-15711-00-00

1
Out of stock

3

. DRUM, SHEAVE

857-15714-00-00

1
Out of stock

4

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

5

. PAWL, DRIVE

616-15741-01-00

1
Out of stock

6

. WASHER, THRUST (802-15719-00)

626-15719-00-00

1
Out of stock

7

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

8

. SPRING, RETURN

811-15784-00-00

1
Out of stock

9

. SPRING, RETURN

811-15734-00-00

1
Out of stock

10

. PLATE, DRIVE

811-15716-00-00

1
Out of stock

11

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

. NUT

95380-08700-00

1

$3.07

In stock

14

ROPE, STARTER

(856-15751-00-00)

1
Out of stock

15

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

16

. CONNECTOR 1

619-15756-00-00

1
Out of stock

17

PULLEY, STARTER

(8A7-15723-00-00)

1
Out of stock

18

BOLT, SOCKET

91317-08030-00

—

$6.17

In stock

19

BOLT, HEXAGON

97027-08140-00

—
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

PULLEY 1

(8A7-12441-00-00)

1
Out of stock
