1976 Yamaha SRX440 Electrical Diagram

← All diagrams

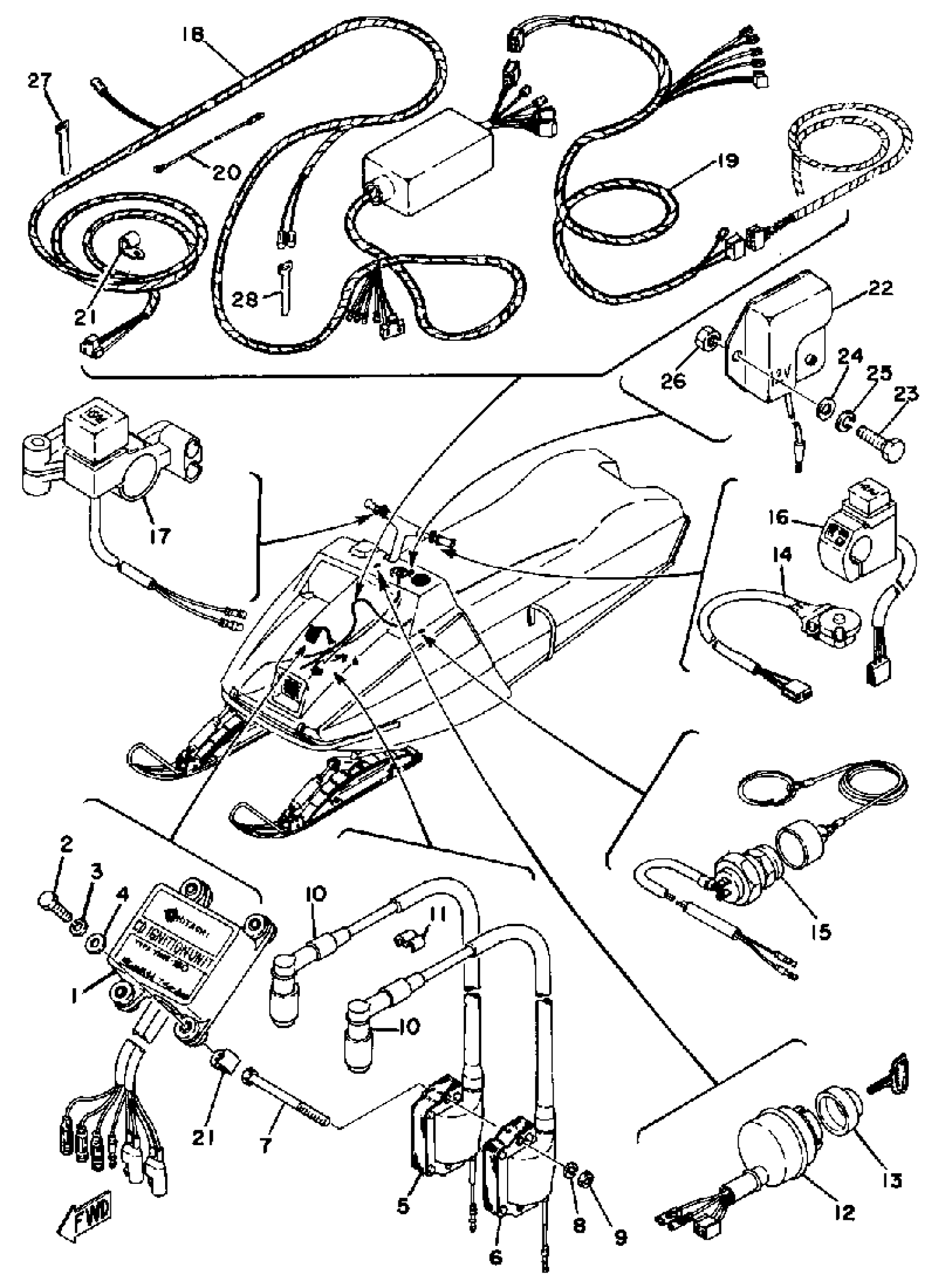

Find the part on the Electrical diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

888-85540-10-00

1
Out of stock

2

BOLT, HEXAGON (97201-05025)

97301-05025-00

1
Out of stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

5

IGNITION COIL ASSEMBLY

(878-82310-30-00)

1
Out of stock

6

IGNITION COIL ASSEMBLY

(857-82320-30-00)

1
Out of stock

7

BOLT(62J)

97013-06070-00

—

$3.37

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

PLUG CAP ASSEMBLY

899-82370-20-00

1
Out of stock

11

CLAMP(56R)

90464-60067-00

1
Out of stock

12

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

13

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

14

STOP SWITCH ASSEMBLY

878-82530-00-00

1
Out of stock

15

STOP SWITCH ASSEMBLY

8J7-82550-01-00

1
Out of stock

16

BEAM SWITCH ASSEMBLY

878-83950-00-00

1
Out of stock

17

SWITCH, HANDLE 1

(8A5-83976-00-00)

1
Out of stock

18

WIRE HARNESS ASSEMBLY

(8A7-82590-20-00)

1
Out of stock

19

WIRE HARNESS ASSEMBLY 2

(8A7-82580-20-00)

1
Out of stock

20

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock

21

CLAMP

90465-06013-00

1
Out of stock

22

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

28

BAND

341-26397-01-00

1
Out of stock
