Description

Price

1

CDI MAGNETO ASSEMBLY

(8A7-85500-10-00)

Unavailable

2

.. COIL, CHARGE

888-85541-10-00

Unavailable

3

COIL, LIGHTING 1

(8A5-81313-10-00)

Unavailable

4

COIL, LIGHTING 2

(8A5-81314-10-00)

Unavailable

5

. SPACER

647-81318-10-00

Unavailable

6

SCREW, PAN

98507-05035-00

$8.49

7

COIL PULSER

(888-85543-10-00)

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

LEAD WIRE ASSEMBLY

(8A7-85515-10-00)

Unavailable

10

. CLAMP

109-81328-11-00

Unavailable

11

CLAMP, LEAD

(363-85528-10-00)

Unavailable

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

. ROTOR ASSEMBLY

878-85550-10-00

Unavailable

14

SCREW, PAN

98507-06014-00

$8.49

15

NUT

90170-16425-00

$9.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE (32N)

90201-163G6-00

Unavailable

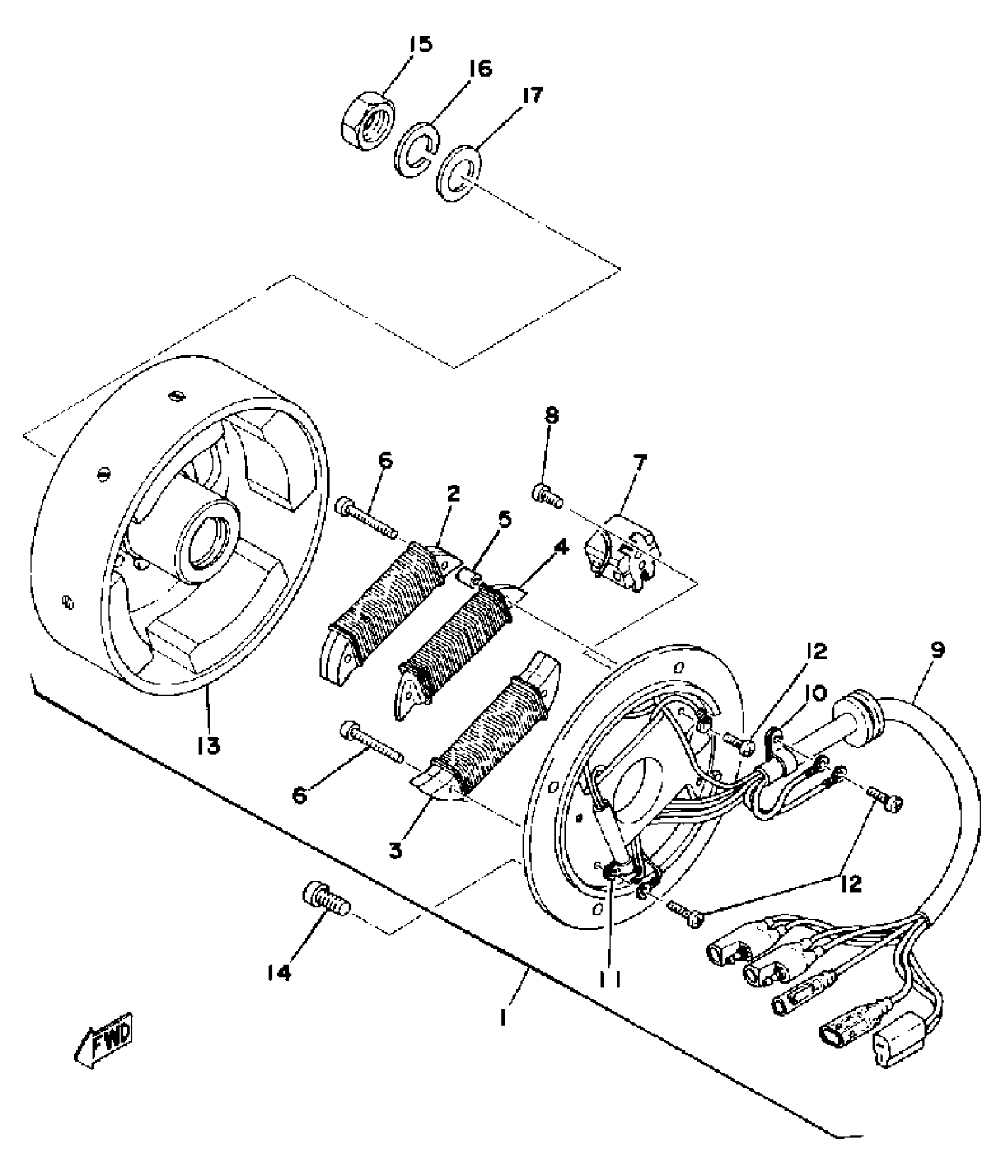

Yamaha SRX440 1976 C - D - I - MAGNETO Diagram

CDI MAGNETO ASSEMBLY

.. COIL, CHARGE

COIL, LIGHTING 1

COIL, LIGHTING 2

. SPACER

SCREW, PAN

COIL PULSER

SCREW, PAN HEAD

LEAD WIRE ASSEMBLY

. CLAMP

CLAMP, LEAD

SCREW, PAN HEAD (713)

. ROTOR ASSEMBLY

SCREW, PAN

NUT

WASHER, SPRING

WASHER, PLATE (32N)
