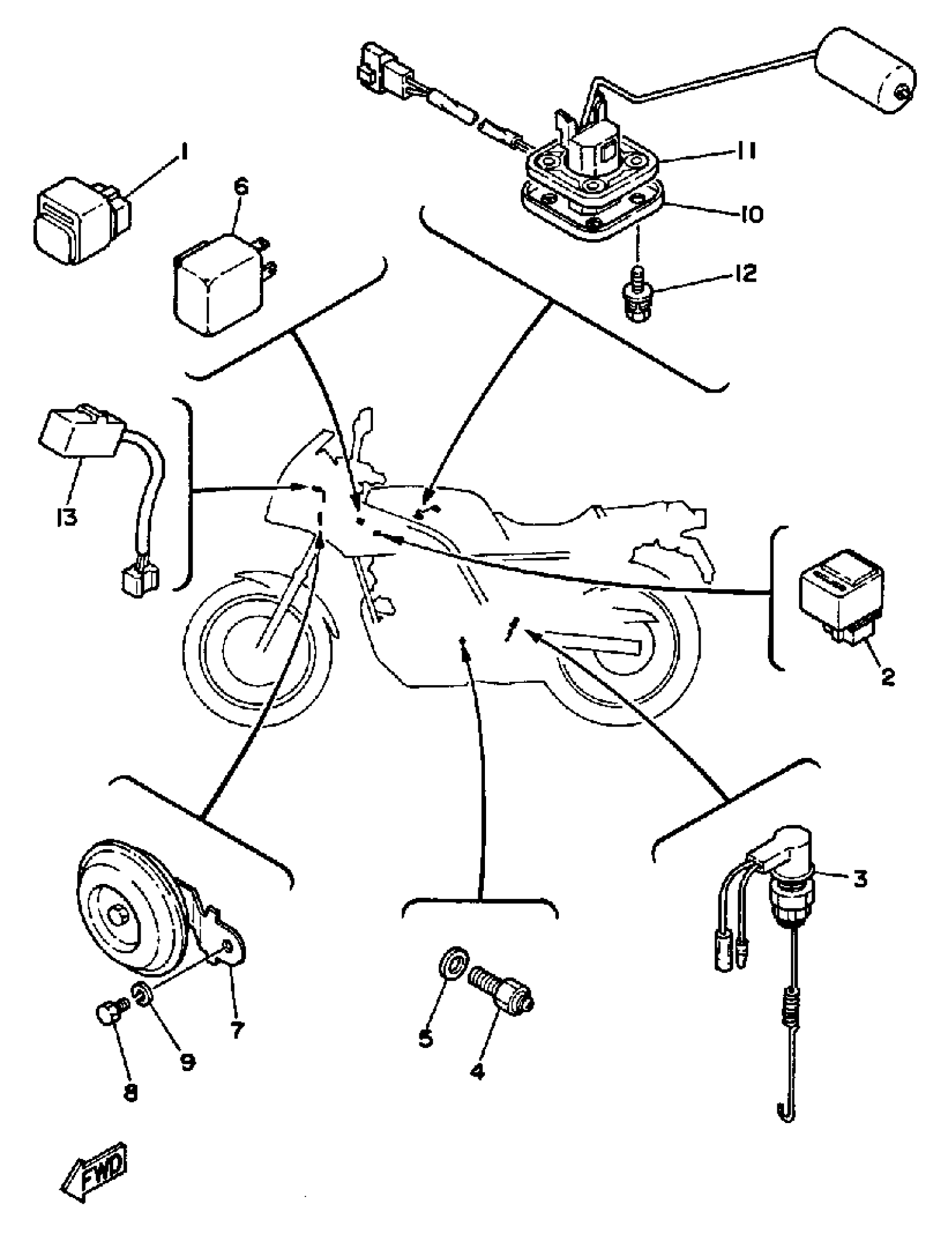

Yamaha SRX250TC (SRX250 CA) 1987 ELECTRICAL 2 Diagram

#

Description
Price

1

RELAY ASSY

12R-81950-02-00

$55.70

2

RELAY ASSY

4U8-81950-03-00

Unavailable

3

STOP SWITCH ASSEMBLY

22F-82530-02-00

Unavailable

4

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$31.94

5

GASKET (5R6)

90430-10171-00

$3.12

6

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

7

HORN

30X-83371-20-00

Unavailable

8

BOLT(3JP)

97017-06010-00

$2.49

9

WASHER, SPRING

92907-06100-00

$1.49

10

SNDR UT ASSEMBLY, F/MTRFUEL METER

51Y-85752-00-00

Unavailable

11

GASKET, SENDER UNIT

5G3-85753-00-00

$14.37

12

BOLT, WITH WASHER

90119-05071-00

$6.22

13

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable
