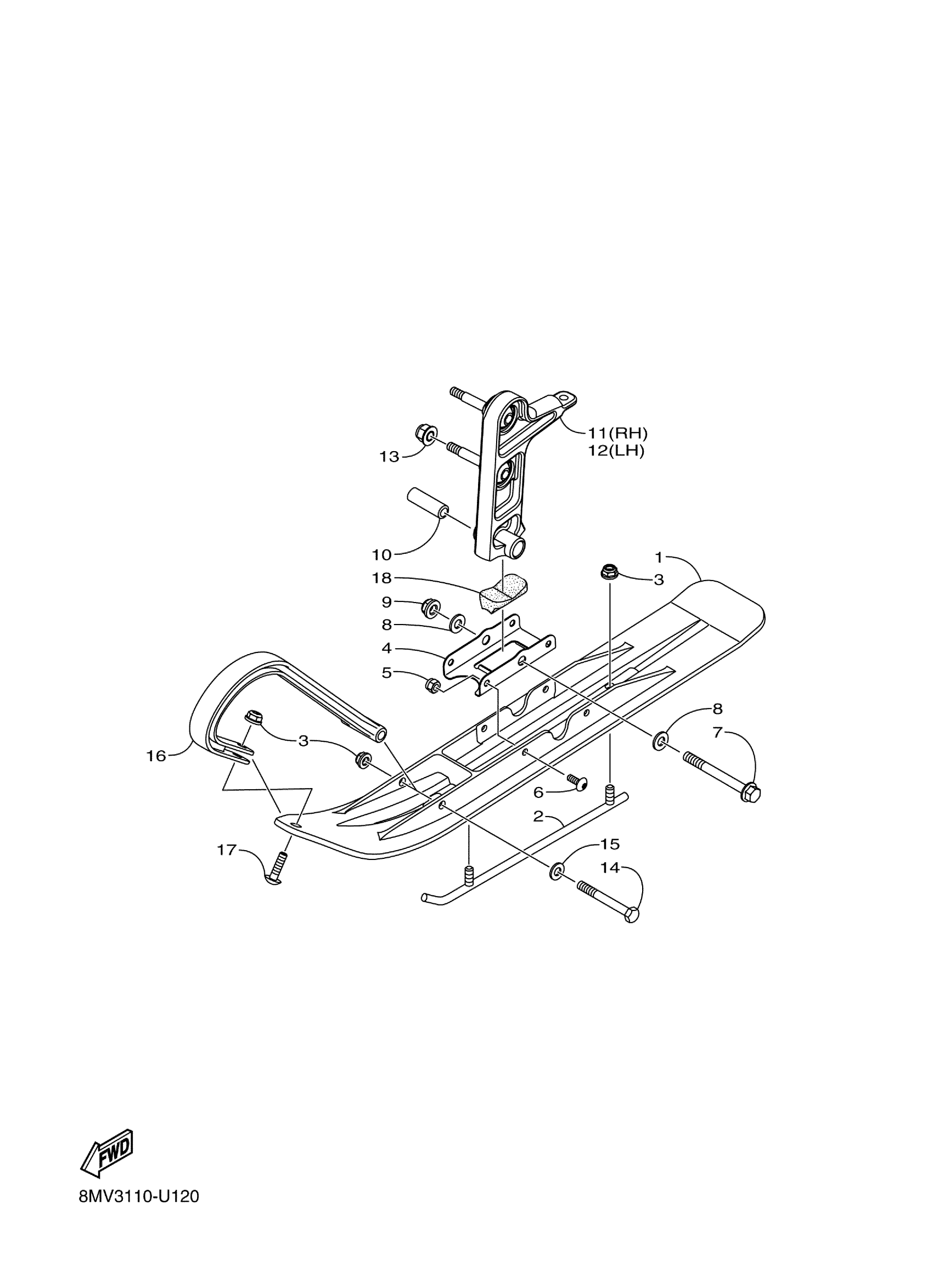

Yamaha SRX1NSL (SRX120R) 8MVA 2025 SKI Diagram

#

Description
Price

1

SKI 1

8MV-F3711-00-00

Unavailable

2

SKAG-PTD BLK

8JM-F3731-00-00

$21.30

3

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

4

SADDLE 1

8MV-F3766-00-00

$18.53

5

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.48

6

SCREW,MACH-TSTRH 1/4-20X3/4 GR

8JM-RA204-00-00

$2.79

7

BOLT, FLANGE 3/8-1

8MV-RA108-00-00

$4.29

8

WASHER,FLAT-3/8X1.000X.063 Z&Y

8JM-RA405-00-00

$0.42

9

NUT, FLG. LOCKING

8JP-RA358-00-00

$1.02

10

COLLAR, 9

8ML-RA702-00-00

$6.05

11

KNUCKLE, STEERING

8MV-F3521-20-00

$126.33

12

KNUCKLE, STEERING

8MV-F3511-20-00

Unavailable

13

NUT, FLG. LOCKING

8MV-RA358-00-00

Unavailable

14

SCREW,CAP-HH5/16-18X3.00-G5 ZY

8JM-RA111-00-00

$1.55

15

WASHER,FLAT-5/16X.688X.065 Z&Y

8JM-RA403-00-00

Unavailable

16

HANDLE, SKI-MOLDED BLACK

8JM-F3712-00-00

Unavailable

17

SCREW, 5/16-18X1

8JM-RA205-00-00

Unavailable

18

STOPPER 1

8MV-F3743-00-00

Unavailable
