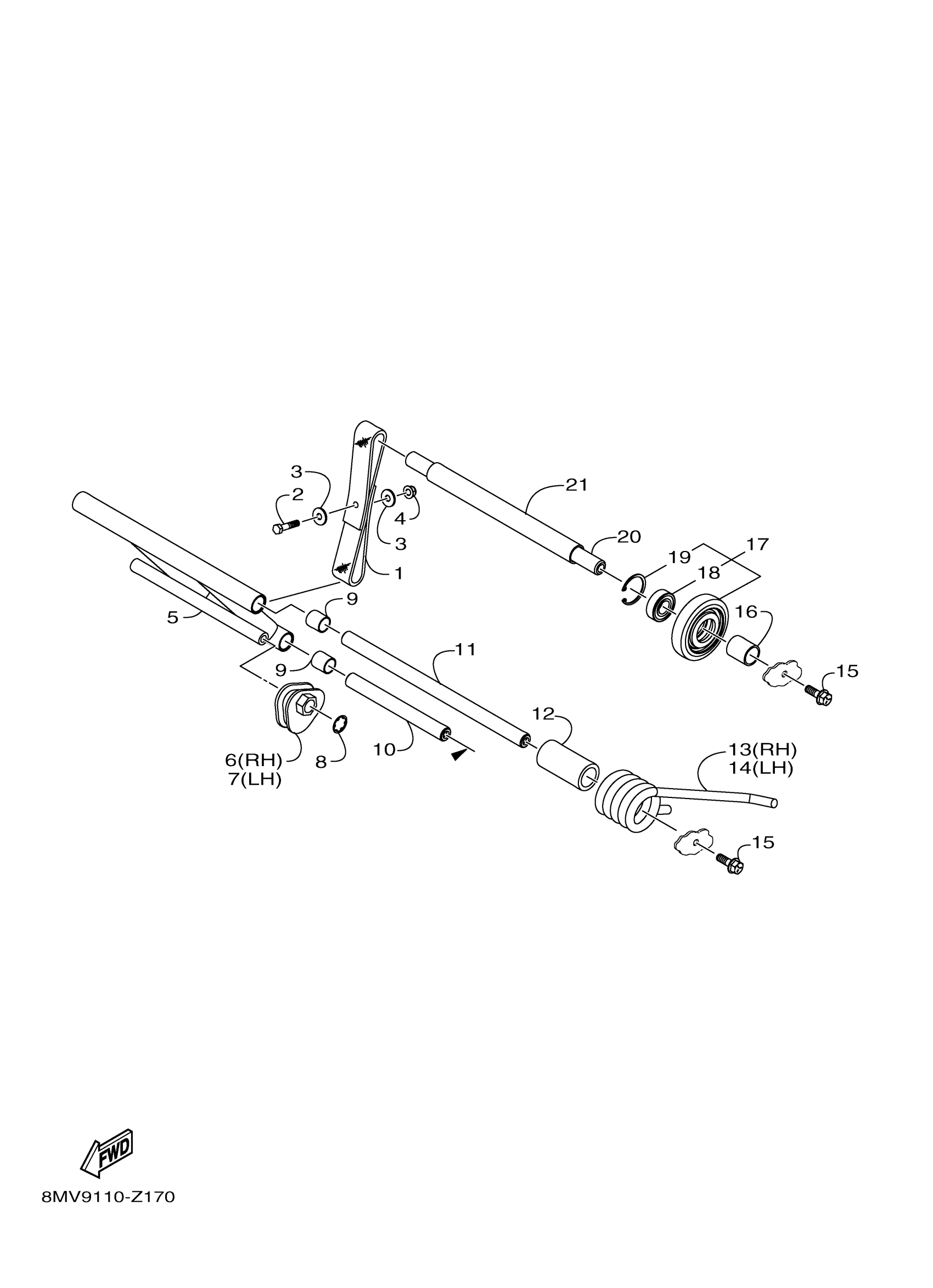

Yamaha SRX1NRL (SRX120R) 8MV9 2024 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

STRAP, LIMITER

8JM-G7495-00-00

Unavailable

2

BOLT, HEXAGON 1/4-20X1.125

8JM-RA115-00-00

Unavailable

3

WASHER,FLAT-1/4 X .734 X .063

8JM-RA400-00-00

$0.85

4

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

5

ARM, PIVOT 1

8NP-G7331-00-00

Unavailable

6

BLOCK, SPRING-ADJUSTER-RH

8JM-G7448-00-00

Unavailable

7

BLOCK, SPRING-ADJUSTER-LH

8JM-G7447-00-00

Unavailable

8

RING,RETAINING-ADJ BLOCK 9/16

8JM-RA315-00-00

$0.85

9

BEARING, GARLOCK 10DU12

8JM-RA801-00-00

$12.49

10

SHAFT 4

8NP-G7486-00-00

Unavailable

11

AXLE, IDLER

8JM-G7465-00-00

Unavailable

12

COLLAR

8JM-RA705-10-00

Unavailable

13

SPRING, REAR 2

8ML-G7474-00-00

Unavailable

14

SPRING, REAR 1

8ML-G7473-00-00

Unavailable

15

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

$2.34

16

COLLAR, 17

8JM-RA709-00-00

Unavailable

17

SUSPENSION WHEEL A

8MV-G7310-00-00

Unavailable

18

BEARING, 2

8MV-RAY03-00-00

Unavailable

19

CIRCLIP, 2

8JM-RAH01-20-00

Unavailable

20

AXLE, IDLER

8JM-G7465-00-00

Unavailable

21

COLLAR, 17

8JM-RA708-00-00

Unavailable
