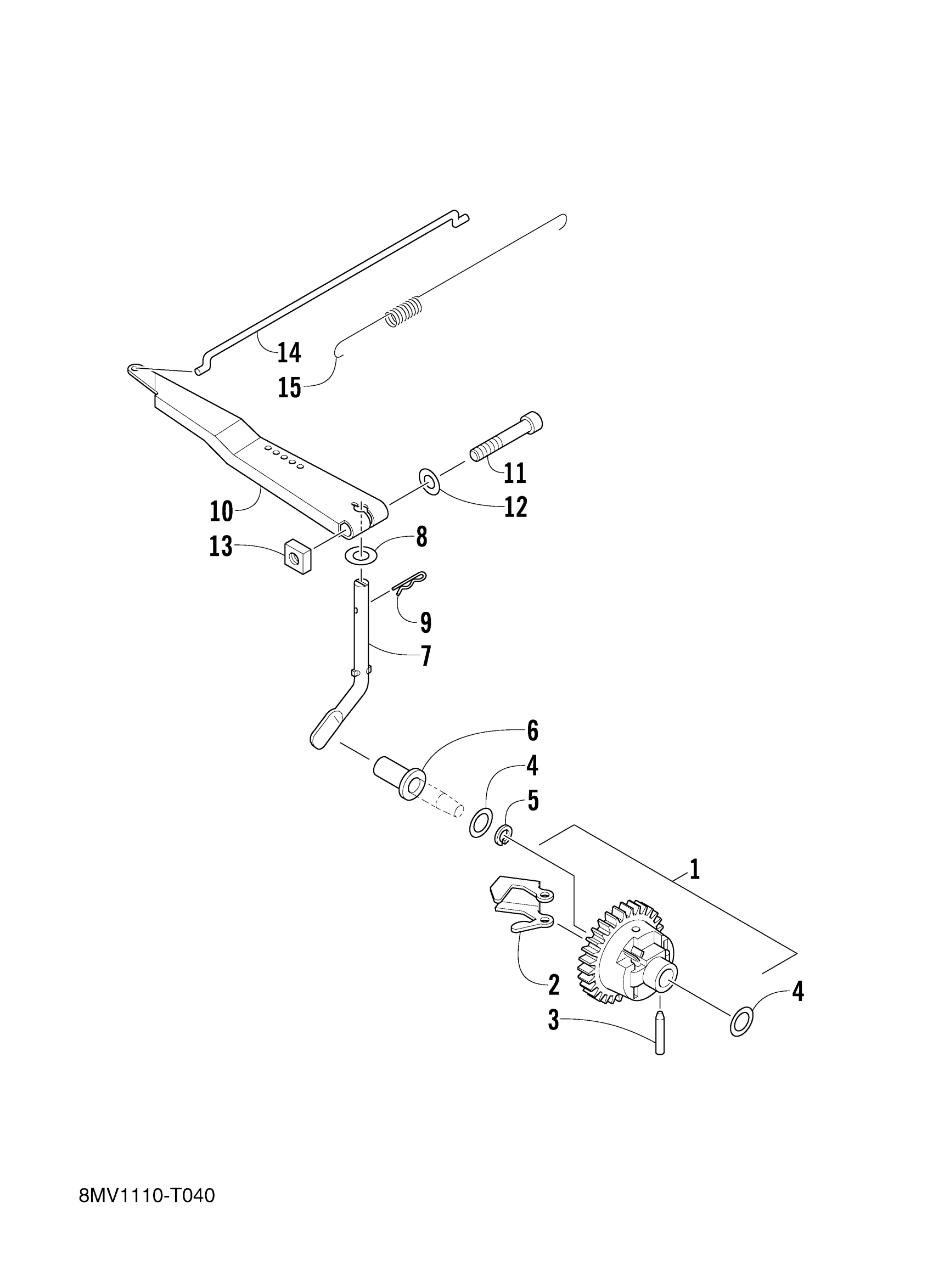

Yamaha SRX1NRL (SRX120R) 8MV9 2024 GOVERNOR Diagram

#

Description
Price

1

FLYWEIGHT SHAFT ASSY

7CN-E1970-11-00

Unavailable

2

WEIGHT

7CN-E1913-00-00

$3.17

3

SHAFT, WEIGHT

7CT-E1914-00-00

$2.13

4

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

5

CIRCLIP

93440-06826-00

$1.11

6

COLLAR

7CN-E1917-00-00

$3.12

7

FORK, GOVERNOR

7CN-E1922-00-00

Unavailable

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

CLIP

90468-18008-00

Unavailable

10

ARM, GOVERNOR

7CN-E1924-01-00

Unavailable

11

BOLT, HEXAGON

97017-06030-00

$3.61

12

WASHER(6TA)

92907-06600-00

$2.72

13

NUT,SQUARE

90173-06802-00

$1.22

14

ROD, LINK

7CN-E1928-00-00

Unavailable

15

SPRING,TENSION

90506-04800-00

$4.61
