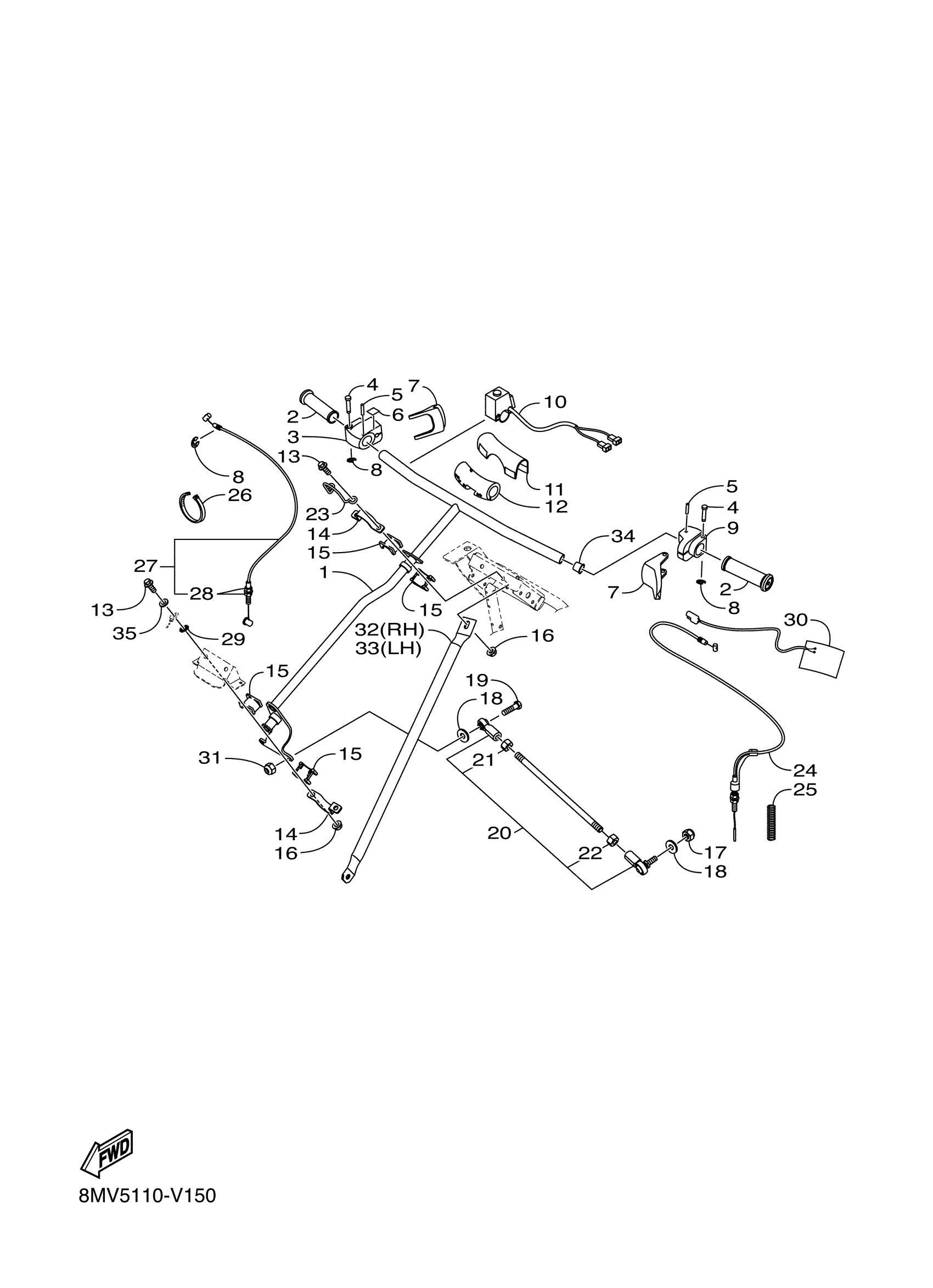

Yamaha SRX1NPL (SRX120R) 8MV8 2023 STEERING Diagram
#
1
COLUMN, STEERING
8MV-F3811-20-00
Unavailable
2
GRIP
8JM-F6241-10-00
$40.99
3
HOLDER, LEVER 2
8JM-H2921-00-00
Unavailable
4
PIN, 1/4D X 1 5/8
8JM-RAY07-00-00
$16.99
5
PIN, 4
8JM-RAY08-00-00
Unavailable
6
DECAL,SWITCH-EMERGENCY STOP
8JM-H2108-00-00
$8.49
7
LEVER, CONTROL
8JM-H3912-00-00
$30.99
8
RING RETAINING
8JM-RAH02-00-00
$1.86
9
HOLDER, LEVER 1
8JM-H2911-00-00
Unavailable
10
SWITCH, STOP-ENGINE
8JM-H2575-00-00
Unavailable
11
COVER, HANDLEBAR PAD
8JM-F3818-00-00
$53.99
12
PAD, HANDLEBAR
8JM-F3817-00-00
$31.99
13
BOLT, FLANGE 1/4-2
8MV-RA106-00-00
Unavailable
14
HOLDER, BEARING
8JM-F3872-00-00
Unavailable
15
BEARING, STEERING
8JM-F3812-00-00
Unavailable
16
NUT, FLG. LOCKING
8JP-RA357-00-00
Unavailable
17
NUT, SELF-LOCKING
8JM-RA357-00-00
Unavailable
18
WASHER,FLAT-5/16X.688X.065 Z&Y
8JM-RA403-00-00
Unavailable
19
SCREW,CAP-HFH 5/16-18X1.25 G5
8JM-RA104-00-00
Unavailable
20
TIE ROD ASSY
8NP-F3830-00-00
Unavailable
21
. NUT, HEXAGON 5/16-24 LH
8JM-RA307-00-00
Unavailable
22
.. NUT, HEXAGON 5/16-24
8JM-RA308-00-00
Unavailable
23
GUIDE, CABLE
8MV-F3389-00-00
Unavailable
24
CABLE,BRAKE
8JM-F6340-00-00
Unavailable
25
SPRING, BRAKE RETURN
8JM-F5735-00-00
Unavailable
26
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
27
CABLE, THROTTLE 1
8MV-F6311-00-00
Unavailable
28
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
29
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
30
GRIP,WARMER
8MV-F626A-00-00
Unavailable
31
NUT,HEX FLG-NY LOCK 5/16-18 GR
8JM-RA303-00-00
Unavailable
32
PIPE, CROSS, 7
8NP-F119E-00-00
Unavailable
33
PIPE CROSS 8
8NP-F119F-00-00
Unavailable
34
NUT
8JR-F3856-10-00
Unavailable
35
WASHER, SPRING 5/1
8ML-RA402-00-00
Unavailable
