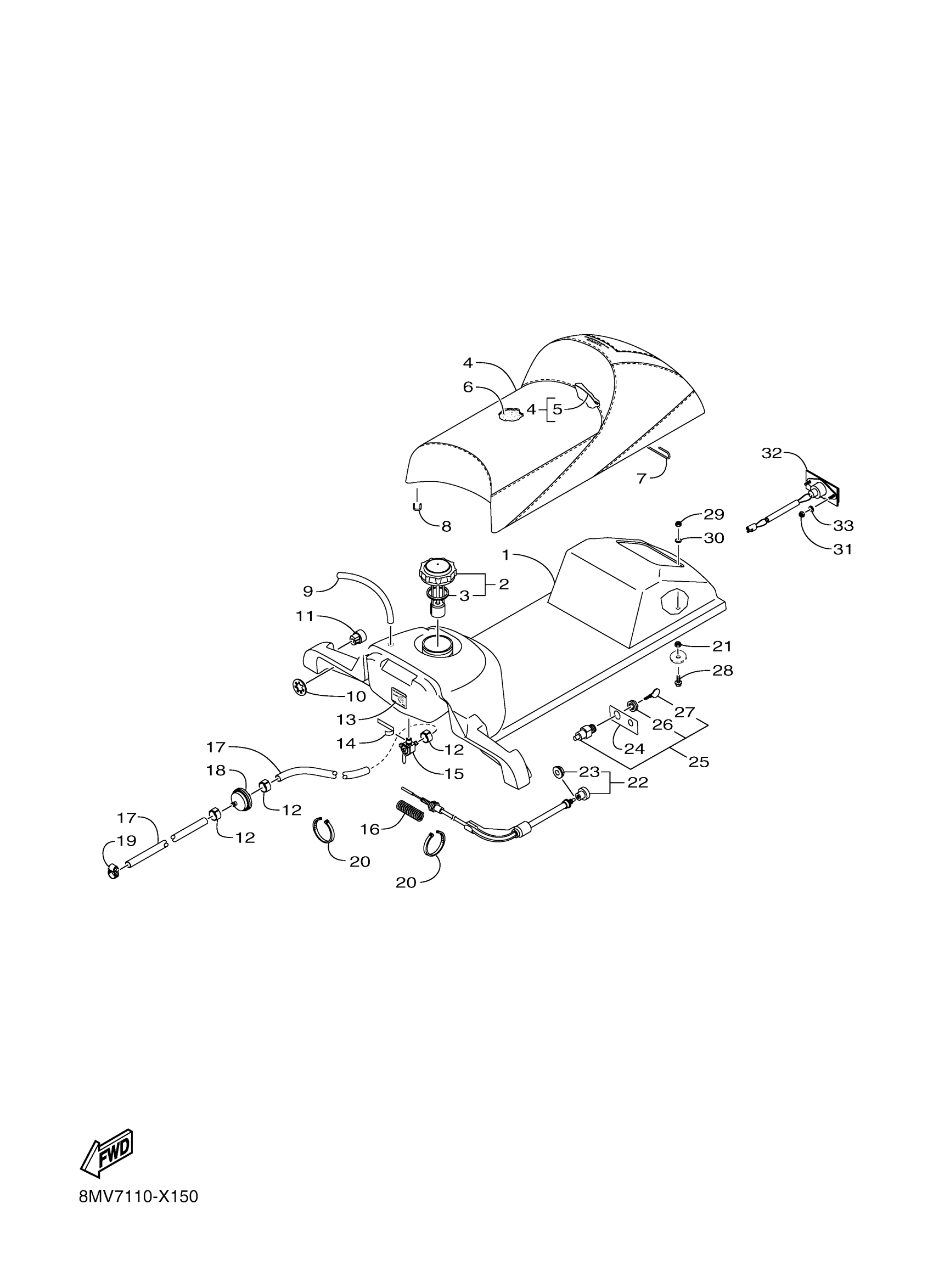

Yamaha SRX1NPL (SRX120R) 8MV8 2023 SEAT Diagram
#
1
. TANK, FUEL
8JM-F4111-00-00
Unavailable
2
CAP ASSY
8JP-F4610-00-00
$15.99
3
SEAL, GAS CAP
8JM-F4641-00-00
Unavailable
4
SEAT COVER COMP.
8MV-F470F-20-00
Unavailable
5
.. WIRE
8JM-F473J-00-00
Unavailable
6
. CUSHION
8JM-F4713-00-00
Unavailable
7
. WIRE
8JM-F473W-00-00
Unavailable
8
. STAPLE
8JM-F473U-00-00
Unavailable
9
HOSE, 7
8JM-RA901-30-00
Unavailable
10
NUT
8JM-RA309-00-00
Unavailable
11
BUSHING, RECOIL
8JM-F1339-00-00
Unavailable
12
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
13
LABEL
8JM-F415C-00-00
Unavailable
14
TAPE, TEFLON-ROLL
8JM-F744H-00-00
Unavailable
15
FUEL COCK COMP.
8JM-F4540-00-00
Unavailable
16
SPRING, COMPRESSION 2
8JM-RAD06-00-00
Unavailable
17
HOSE, 13 (25 FEET)
8JM-RA902-10-00
Unavailable
18
FILTER,FUEL
8JM-F4501-01-00
Unavailable
19
CLAMP, HOSE #4 (6202)
8JM-RAA00-00-00
Unavailable
20
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
21
NUT, SELF-LOCKING 1/4-20
8JM-RA311-00-00
Unavailable
22
CABLE, CHOKE-120
8JM-F6330-00-00
Unavailable
23
NUT, PLASTIC-CHOKE
8JM-RA310-00-00
Unavailable
24
INDICATOR 1
8JM-K7741-00-00
Unavailable
25
SWITCH, IGNITION
8JM-H194E-00-00
Unavailable
26
NUT,RETAINING-5/8-32UN2B BLK
8JM-RA317-00-00
Unavailable
27
KEY, IGNITION
8JM-H2511-00-00
Unavailable
28
BOLT, FLANGE 1/4-2
8MV-RA106-00-00
Unavailable
29
NUT, CAP 1/4-20
8JM-RA312-00-00
Unavailable
30
WASHER, 6.87X25.4X
8JP-RA450-00-00
Unavailable
31
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
32
TAILLIGHT UNIT ASS
8JM-H4710-10-00
Unavailable
33
WASHER, FLAT M5 5.
8JM-RA465-00-00
Unavailable
