Description

Price

1

BRACKET, THROTTLE

8JM-E3733-10-00

Unavailable

2

SPACER

8JM-E3576-00-00

Unavailable

3

SPRING, TORSION 1

8JM-RAD00-00-00

Unavailable

4

LEVER, THROTTLE

8JM-E3726-00-00

Unavailable

5

WASHER,FLAT-1/4 X .734 X .063

8JM-RA400-00-00

$0.85

6

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

7

SPRING, GOVERNOR ARM

8JM-RAD01-00-00

$16.99

8

BOLT, FLANGE M8-1.25X16

8JM-RA100-00-00

Unavailable

9

BOLT, HEX. SOCKET 10-32X1.5

8JM-RA101-00-00

Unavailable

10

SPRING, COMPRESSION 1

8JM-RAD02-00-00

Unavailable

11

HOSE, 13

8JM-RA900-10-00

Unavailable

12

SPRING, TENSION 2

8JM-RAD03-00-00

Unavailable

13

RETAINER, SPRING

8JM-E3923-00-00

Unavailable

14

CLAMP, 20

8JP-RAB22-00-00

Unavailable

15

SCREW,CAP-HFH 5/16-18X1.25 G5

8JM-RA104-00-00

Unavailable

16

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

17

CAP, PLUG

8NP-H2371-00-00

Unavailable

18

SCREW,CAP-HH 5/16-24X.75W/2353

8JM-RA105-00-00

Unavailable

19

WASHER,FLAT-5/16X.688X.065 Z&Y

8JM-RA403-00-00

Unavailable

20

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable

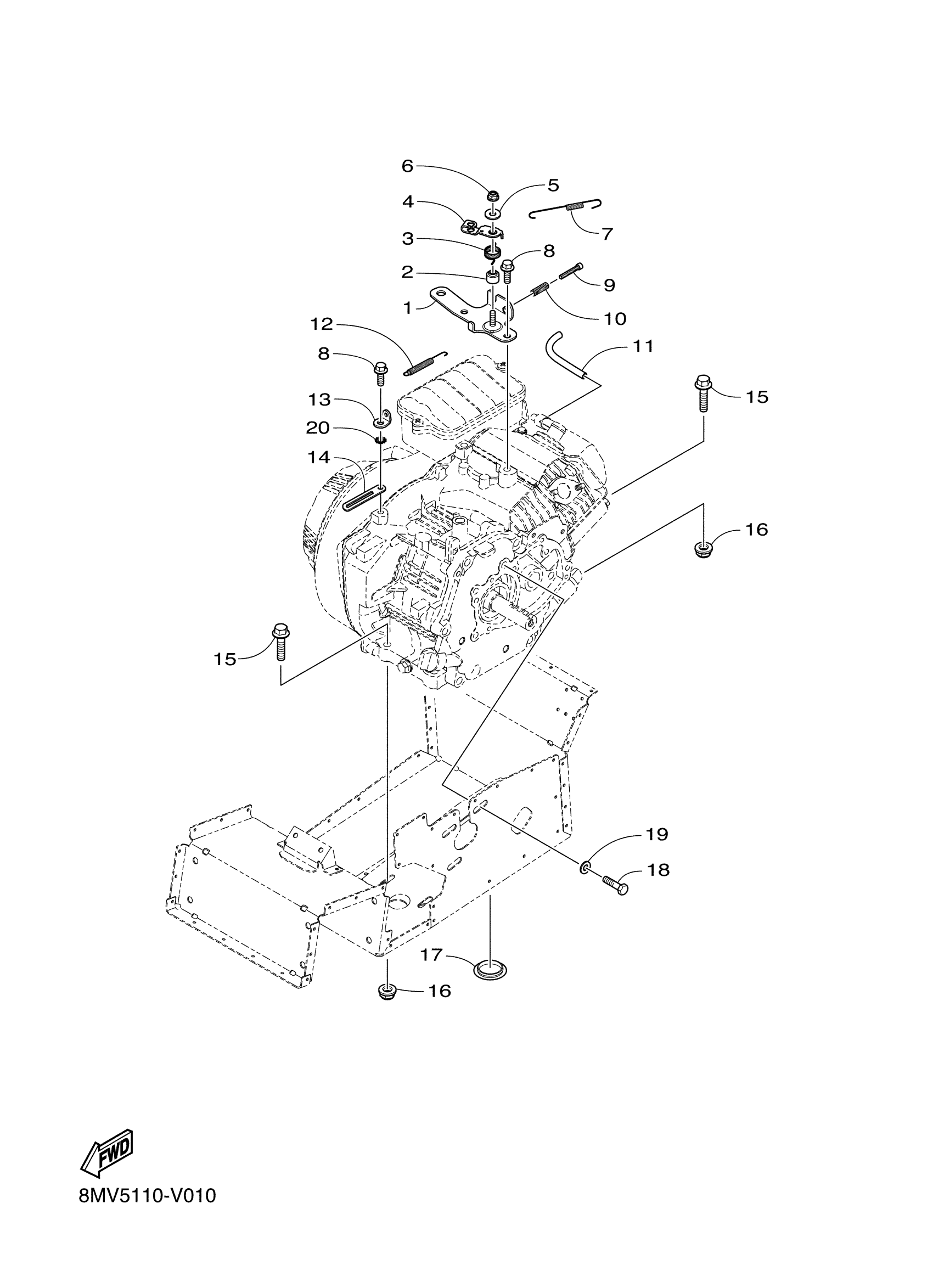

Yamaha SRX1NPL (SRX120R) 8MV8 2023 ENGINE ASSEMBLY Diagram

BRACKET, THROTTLE

SPACER

SPRING, TORSION 1

LEVER, THROTTLE

WASHER,FLAT-1/4 X .734 X .063

NUT, FLG. LOCKING

SPRING, GOVERNOR ARM

BOLT, FLANGE M8-1.25X16

BOLT, HEX. SOCKET 10-32X1.5

SPRING, COMPRESSION 1

HOSE, 13

SPRING, TENSION 2

RETAINER, SPRING

CLAMP, 20

SCREW,CAP-HFH 5/16-18X1.25 G5

NUT,HEX FLG-NY LOCK 5/16-18 GR

CAP, PLUG

SCREW,CAP-HH 5/16-24X.75W/2353

WASHER,FLAT-5/16X.688X.065 Z&Y

WASHER,LOCK-1/4 EXT TOOTH TYP
