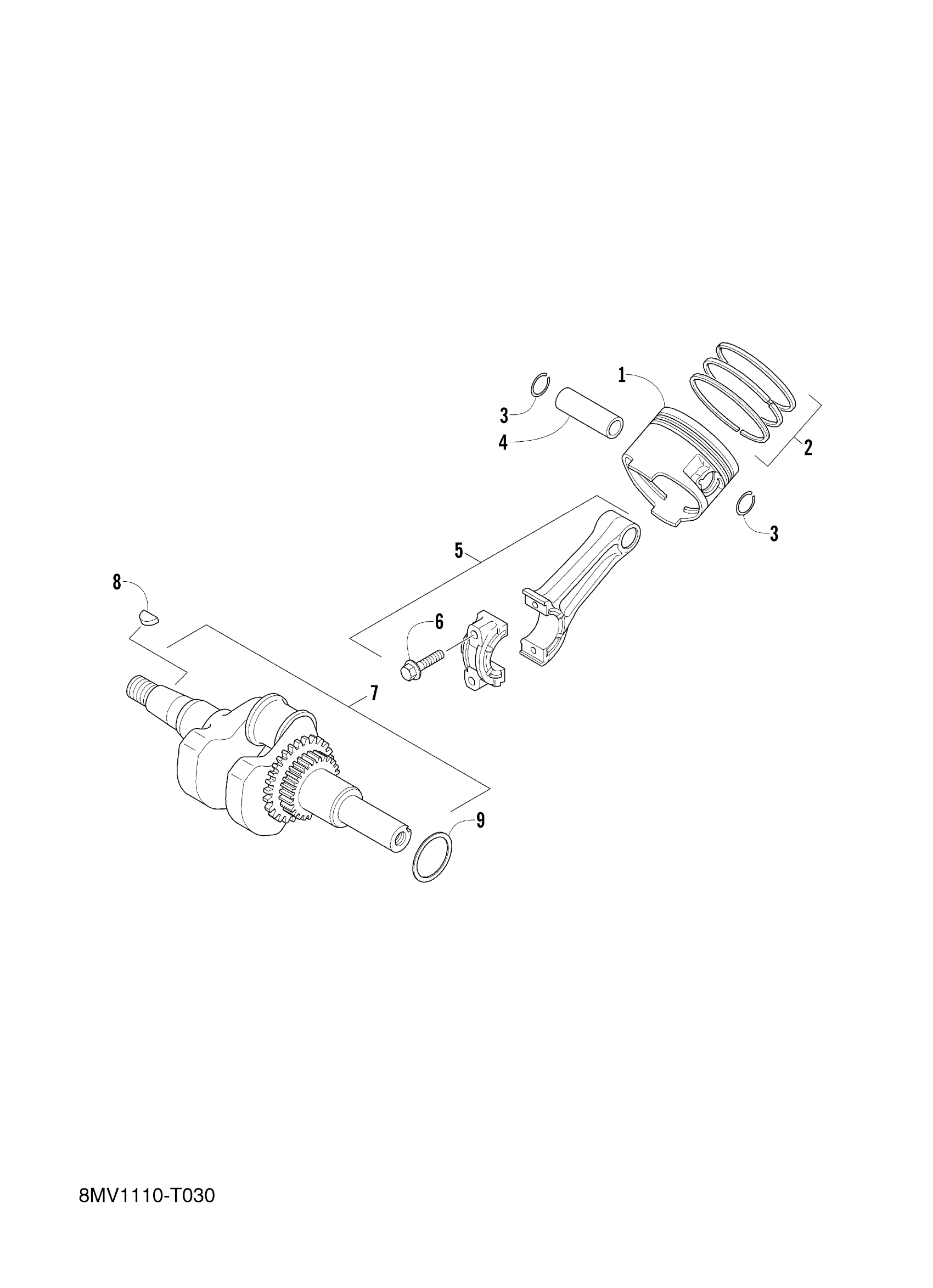

Yamaha SRX1NPL (SRX120R) 8MV8 2023 CRANKSHAFT & PISTON Diagram

PISTON (STD)

7CL-E1631-10-A0

$33.75

PISTON (0.25MM O-S)

7CL-E1635-00-00

Unavailable

PISTON (0.50MM O/S)

7CL-E1636-00-00

$58.12

PISTON RING SET (STD)

7CL-E1610-00-00

Unavailable

PISTON RING SET

7CL-E1610-10-00

$40.00

PISTON RING SET(0.50 MM O/S)

7CL-E1610-20-00

$38.75

CIRCLIP

93450-17828-00

Unavailable

PIN, PISTON

7CL-E1633-00-00

$3.81

CONNECTING ROD ASSY

7CN-E1650-11-00

$61.25

BOLT, CONNECTING RO

7CN-E1654-00-00

$4.06

CRANKSHAFT ASSY

7CN-E1400-10-00

$209.37

KEY,WOODRUFF

90280-04052-00

Unavailable

SHIM, CRANK 1

7CN-E1561-00-00

$1.69
