Description

Price

1

ARM, PIVOT 1

8NP-G7331-00-00

Unavailable

2

BLOCK, SPRING-ADJUSTER-RH

8JM-G7448-00-00

Unavailable

3

BLOCK, SPRING-ADJUSTER-LH

8JM-G7447-00-00

Unavailable

4

RING,RETAINING-ADJ BLOCK 9/16

8JM-RA315-00-00

$0.85

5

BEARING, GARLOCK 10DU12

8JM-RA801-00-00

$12.49

6

SHAFT 4

8NP-G7486-00-00

Unavailable

7

AXLE, IDLER

8JM-G7465-00-00

Unavailable

8

COLLAR

8JM-RA705-10-00

Unavailable

9

SPRING, REAR 2

8ML-G7474-00-00

Unavailable

10

SPRING, REAR 1

8ML-G7473-00-00

Unavailable

11

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

$2.34

12

COLLAR, 17

8JM-RA709-00-00

Unavailable

13

SUSPENSION WHEEL A

8MV-G7310-00-00

$31.99

14

BEARING, 2

8MV-RAY03-00-00

$33.99

15

CIRCLIP, 2

8JM-RAH01-20-00

Unavailable

16

AXLE, IDLER

8JM-G7465-00-00

Unavailable

17

COLLAR, 17

8JM-RA708-00-00

Unavailable

18

STRAP, LIMITER

8JM-G7495-00-00

Unavailable

19

BOLT, HEXAGON 1/4-20X1.125

8JM-RA115-00-00

Unavailable

20

WASHER,FLAT-1/4 X .734 X .063

8JM-RA400-00-00

Unavailable

21

NUT, FLG. LOCKING

8JP-RA357-00-00

Unavailable

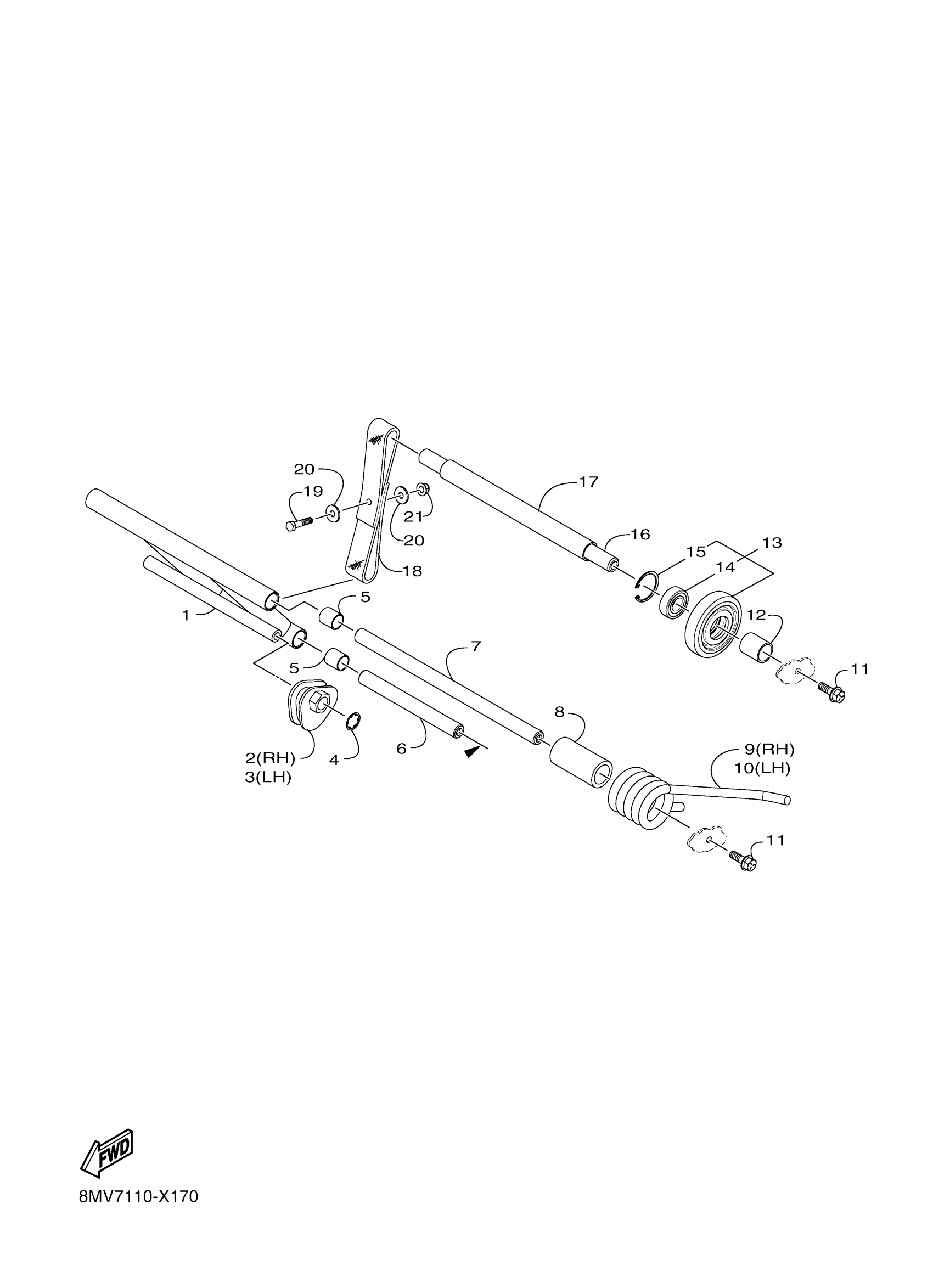

Yamaha SRX1NNL (SRX120R) 8MV7 2022 TRACK SUSPENSION 2 Diagram

ARM, PIVOT 1

BLOCK, SPRING-ADJUSTER-RH

BLOCK, SPRING-ADJUSTER-LH

RING,RETAINING-ADJ BLOCK 9/16

BEARING, GARLOCK 10DU12

SHAFT 4

AXLE, IDLER

COLLAR

SPRING, REAR 2

SPRING, REAR 1

SCREW-CAP-HFH 5/16-18 X0.875 G

COLLAR, 17

SUSPENSION WHEEL A

BEARING, 2

CIRCLIP, 2

AXLE, IDLER

COLLAR, 17

STRAP, LIMITER

BOLT, HEXAGON 1/4-20X1.125

WASHER,FLAT-1/4 X .734 X .063

NUT, FLG. LOCKING
