- SRX1NNL (SRX120R) 8MV7 2022
TRACK SUSPENSION 1

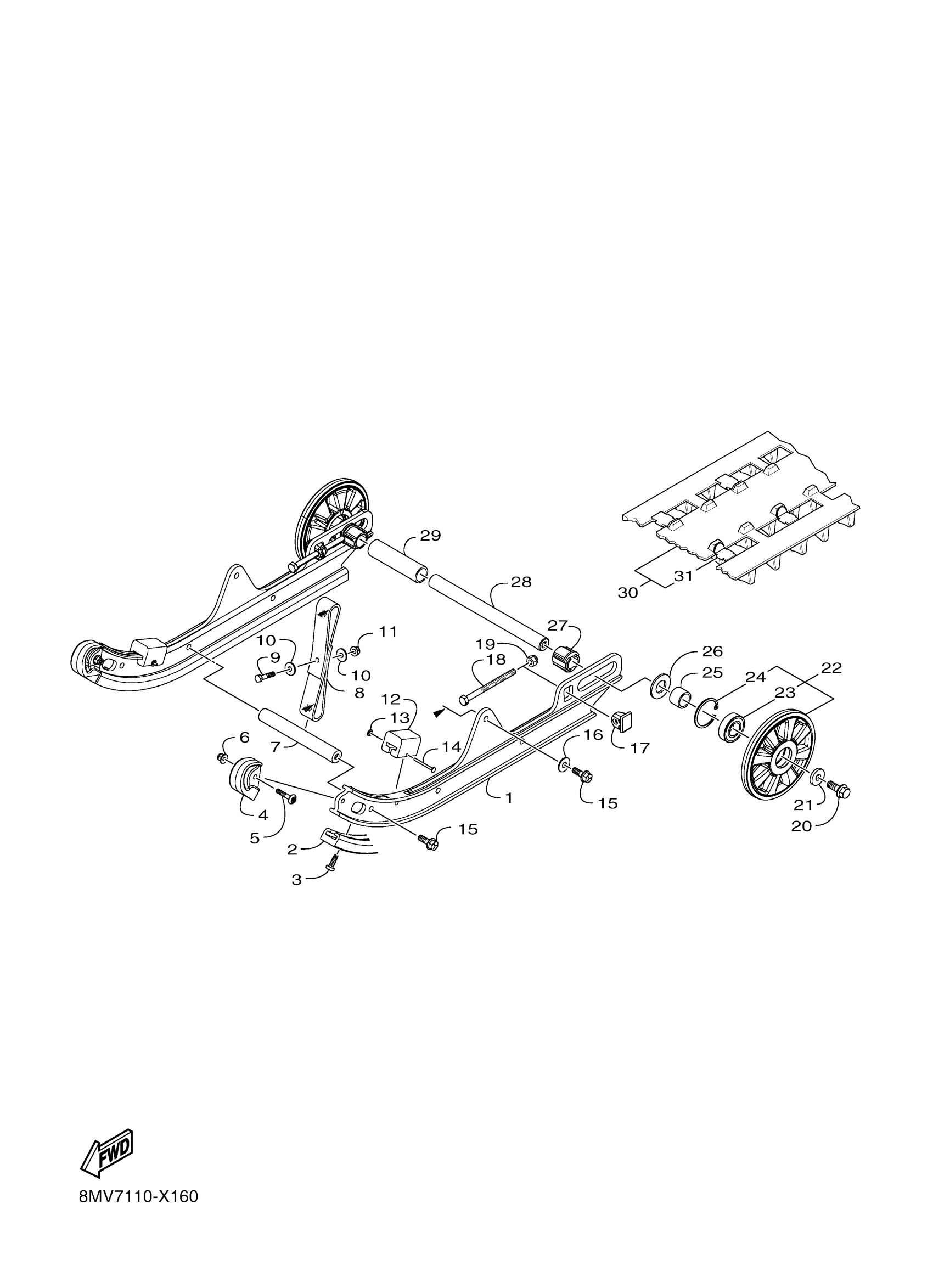

Yamaha SRX1NNL (SRX120R) 8MV7 2022 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8MV-G741A-00-00
$115.99
2
RUNNER, SLIDING 1
8MV-G7421-00-00
$14.99
3
SCREW
8NP-RA206-00-00
Unavailable
4
RUNNER, SLIDING 2
8JP-G7422-00-00
Unavailable
5
SCREW, M6X1.0X30
8JP-RA266-00-00
$1.43
6
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
7
SHAFT 2
8ML-G7475-00-00
Unavailable
8
STRAP, LIMITER
8JM-G7495-00-00
Unavailable
9
BOLT, HEXAGON 1/4-20X1.125
8JM-RA115-00-00
Unavailable
10
WASHER,FLAT-1/4 X .734 X .063
8JM-RA400-00-00
$0.85
11
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
12
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
13
NUT, SPRING 1/8
8JM-RA313-00-00
Unavailable
14
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
15
SCREW,CAP-HFH 5/16-18X0.875 G5
8JM-RA116-00-00
$3.35
16
WASHER
8ND-RA429-00-00
Unavailable
17
BRACKET 5
8JP-G7463-00-00
Unavailable
18
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
19
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
20
BOLT, FLANGE 3/8-16X1
8JM-RA118-00-00
Unavailable
21
WASHER, PLAIN 0.39
8JM-RA409-00-00
Unavailable
22
SUSPENSION WHEEL A
8JR-G7310-20-00
Unavailable
23
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
24
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
25
COLLAR
8NP-RA708-00-00
Unavailable
26
WASHER, 9
8LN-RA466-00-00
Unavailable
27
COLLAR
8ND-RA700-00-00
Unavailable
28
AXLE, REAR
8JM-G7521-00-00
Unavailable
29
COLLAR
8NP-RA709-00-00
Unavailable
30
TRACK ASSY
8MV-G7110-00-00
Unavailable
31
PLATE,RNFCMNT
8JR-G7113-00-00
Unavailable
