Description

Price

1

SHROUD, WITH LABELS

8MV-RAS30-20-00

Unavailable

2

LABEL, WARNING 1

8MV-K7761-00-00

Unavailable

3

WIRE HARNESS ASSY

8MV-H2590-10-00

Unavailable

4

HEADLIGHT UNIT ASS

8MV-H4310-00-00

Unavailable

5

COVER, SOCKET

8MV-H4397-00-00

Unavailable

6

HOLDER BULB

8JP-H4393-00-00

$26.99

7

BULB, HEADLIGHT

8ML-H4314-00-00

Unavailable

8

CLIP

8MV-H4374-00-00

$0.74

9

SCREW,10-24X2

8MV-RA210-00-00

Unavailable

10

SPRING, COMPRESSIO

8MV-RAD07-00-00

Unavailable

11

STOPPER, SHROUD

8NP-K7118-00-00

$13.49

12

NUT, CLIP M6

8JP-RA354-00-00

$0.96

13

SCREW

8JM-RA209-10-00

$1.96

14

NUT, SELF-LOCKING

8JM-RA319-00-00

Unavailable

15

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

16

NUT, FLG. LOCKING

8MV-RA357-00-00

Unavailable

17

WINDSHIELD COMP.

8ML-K7210-00-00

Unavailable

18

RIVET 2

8ML-RA511-01-00

Unavailable

19

CAP, PLUG

8MV-H2371-00-00

Unavailable

20

NUT, 1

8JM-RA345-00-00

Unavailable

21

LABEL

8MV-K7229-00-00

Unavailable

22

SWITCH ASSY

8JM-H1860-00-00

Unavailable

23

STRAP, HOLD DOWN-HOOD

8JM-K7171-00-00

Unavailable

24

CAP 1

8MV-H245B-00-00

Unavailable

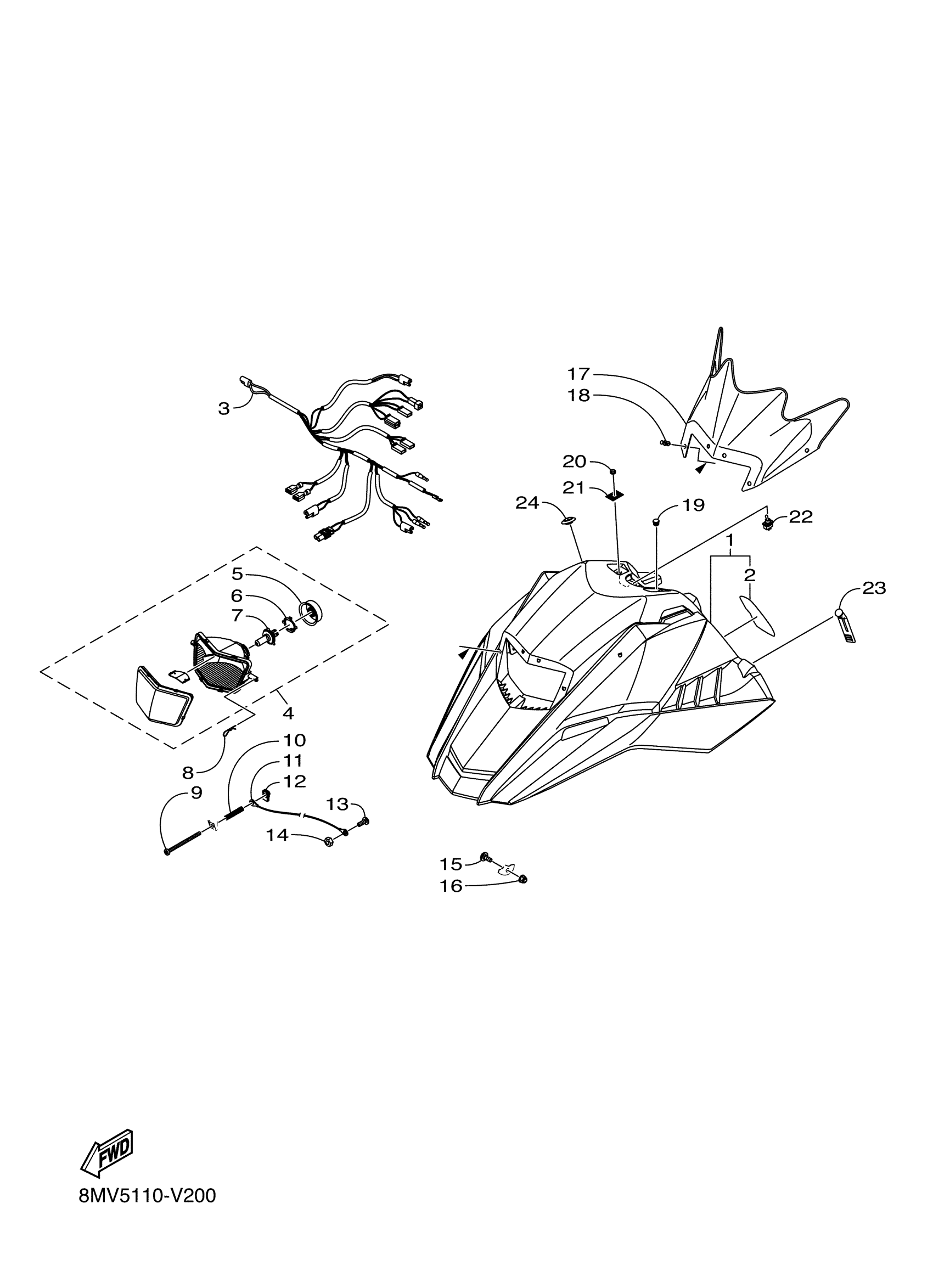

Yamaha SRX1NNL (SRX120R) 8MV7 2022 SHROUD & WINDSHIELD Diagram

SHROUD, WITH LABELS

LABEL, WARNING 1

WIRE HARNESS ASSY

HEADLIGHT UNIT ASS

COVER, SOCKET

HOLDER BULB

BULB, HEADLIGHT

CLIP

SCREW,10-24X2

SPRING, COMPRESSIO

STOPPER, SHROUD

NUT, CLIP M6

SCREW

NUT, SELF-LOCKING

SCREW, M6-1.0X18

NUT, FLG. LOCKING

WINDSHIELD COMP.

RIVET 2

CAP, PLUG

NUT, 1

LABEL

SWITCH ASSY

STRAP, HOLD DOWN-HOOD

CAP 1
