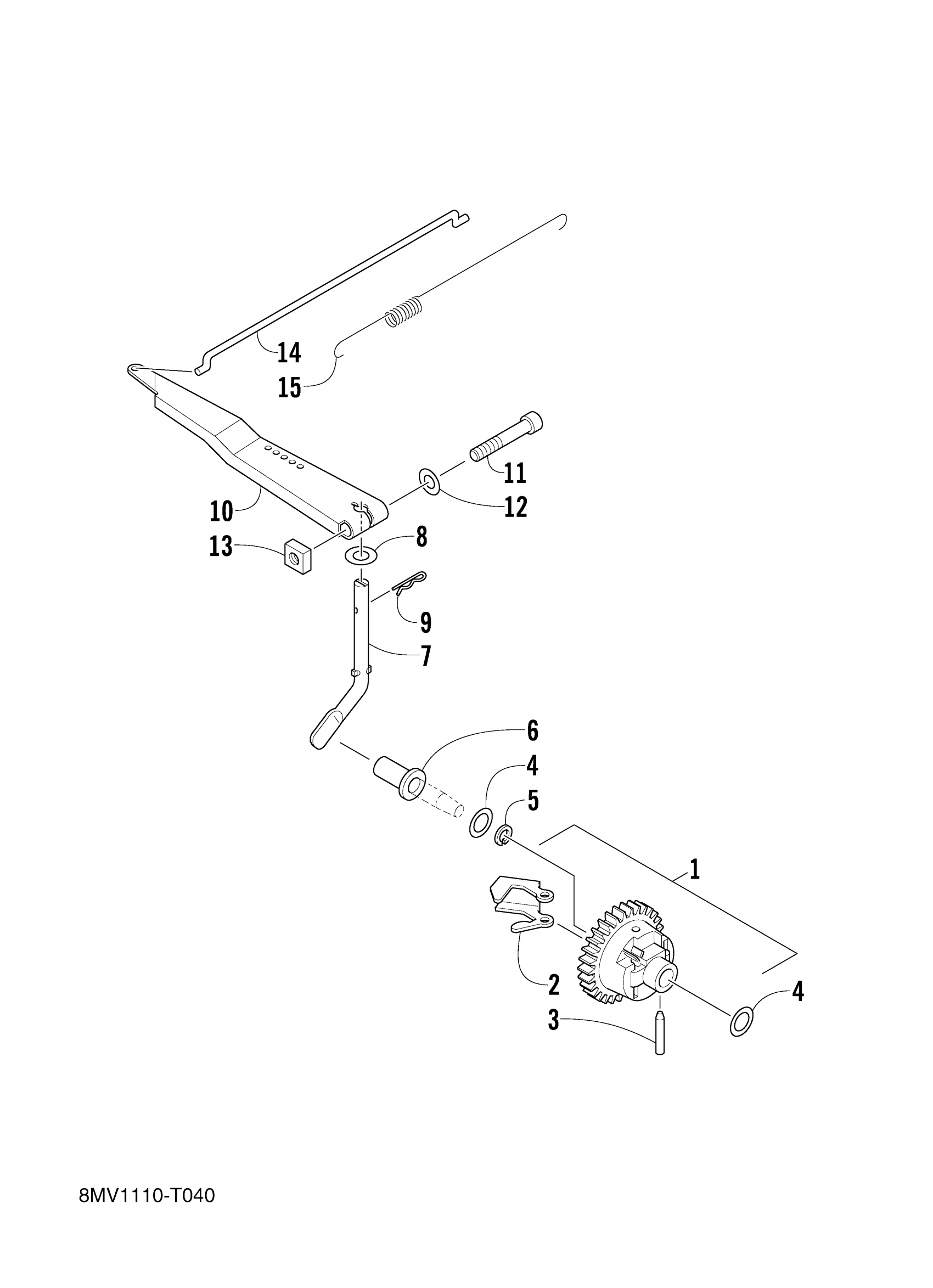

Yamaha SRX1NNL (SRX120R) 8MV7 2022 GOVERNOR Diagram

#

Description
Price

1

FLYWEIGHT SHAFT ASSY.

7CN-E1970-10-00

$17.76

2

WEIGHT

7CN-E1913-00-00

$2.93

3

SHAFT, WEIGHT

7CT-E1914-00-00

$1.91

4

WASHER, PLATE(3SX)

90201-062P7-00

$3.84

5

CIRCLIP

93440-06826-00

$1.07

6

COLLAR

7CN-E1917-00-00

$2.88

7

FORK, GOVERNOR

7CN-E1922-00-00

Unavailable

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

9

CLIP

90468-18008-00

$1.34

10

ARM, GOVERNOR

7CN-E1924-01-00

Unavailable

11

BOLT, HEXAGON

97017-06030-00

$2.80

12

WASHER(6TA)

92907-06600-00

$0.73

13

NUT,SQUARE

90173-06802-00

$1.13

14

ROD, LINK

7CN-E1928-00-00

Unavailable

15

SPRING,TENSION

90506-04800-00

$4.43
