Description

Price

1

ARM,FRONT-120-FAB

8JM-G7331-00-00

$147.99

2

BEARING, GARLOCK 10DU12

8JM-RA801-00-00

$12.49

3

AXLE, ARM-LOWER

8JM-G7486-00-00

$40.99

4

SCREW,CAP-HFH 5/16-18X0.875 G5

8JM-RA116-00-00

$3.35

5

AXLE, IDLER

8JM-G7465-00-00

Unavailable

6

COLLAR

8JM-RA705-10-00

Unavailable

7

SPRING,SUSPENSION-RH-PTD BLK

8JM-G7474-00-00

$62.99

8

SPRING, REAR 1

8JM-G7473-00-00

Unavailable

9

BLOCK, SPRING-ADJUSTER-RH

8JM-G7448-00-00

Unavailable

10

BLOCK, SPRING-ADJUSTER-LH

8JM-G7447-00-00

Unavailable

11

RING,RETAINING-ADJ BLOCK 9/16

8JM-RA315-00-00

$0.85

12

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

13

STRAP, LIMITER

8JM-G7495-00-00

Unavailable

14

BOLT, HEXAGON 1/4-20X1.125

8JM-RA115-00-00

Unavailable

15

WASHER,FLAT-1/4 X .734 X .063

8JM-RA400-00-00

$0.85

16

COLLAR, 17

8JM-RA708-00-00

Unavailable

17

SUSPENSION WHEEL A

8MV-G7310-00-00

Unavailable

18

BEARING, 2

8MV-RAY03-00-00

Unavailable

19

CIRCLIP, 2

8JM-RAH01-20-00

Unavailable

20

COLLAR, 17

8JM-RA709-00-00

Unavailable

21

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

Unavailable

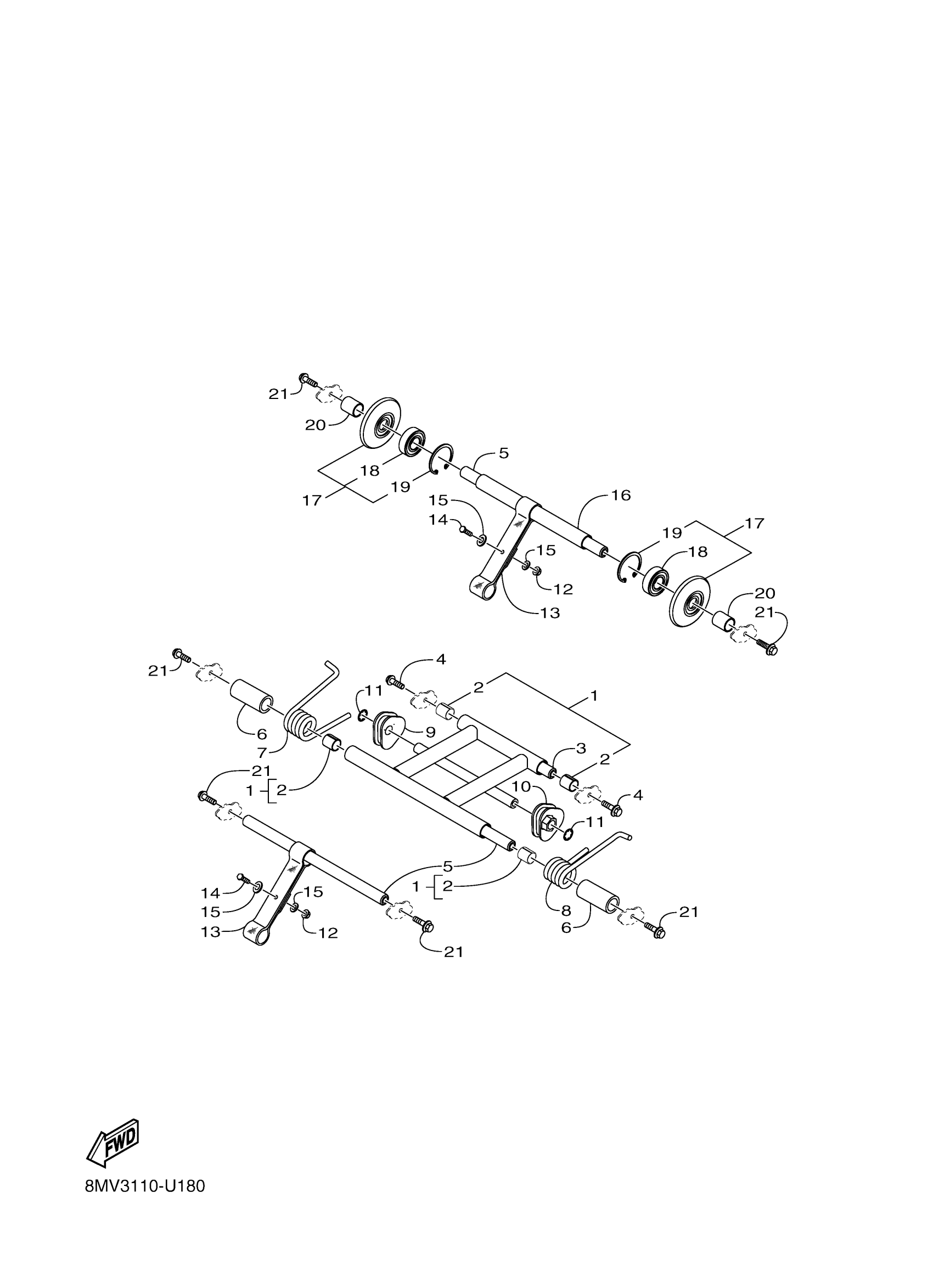

Yamaha SRX1NML (SRX120R) 8MV6 2021 TRACK SUSPENSION 2 Diagram

ARM,FRONT-120-FAB

BEARING, GARLOCK 10DU12

AXLE, ARM-LOWER

SCREW,CAP-HFH 5/16-18X0.875 G5

AXLE, IDLER

COLLAR

SPRING,SUSPENSION-RH-PTD BLK

SPRING, REAR 1

BLOCK, SPRING-ADJUSTER-RH

BLOCK, SPRING-ADJUSTER-LH

RING,RETAINING-ADJ BLOCK 9/16

NUT, FLG. LOCKING

STRAP, LIMITER

BOLT, HEXAGON 1/4-20X1.125

WASHER,FLAT-1/4 X .734 X .063

COLLAR, 17

SUSPENSION WHEEL A

BEARING, 2

CIRCLIP, 2

COLLAR, 17

SCREW-CAP-HFH 5/16-18 X0.875 G
