- SRX1NML (SRX120R) 8MV6 2021
TRACK SUSPENSION 1

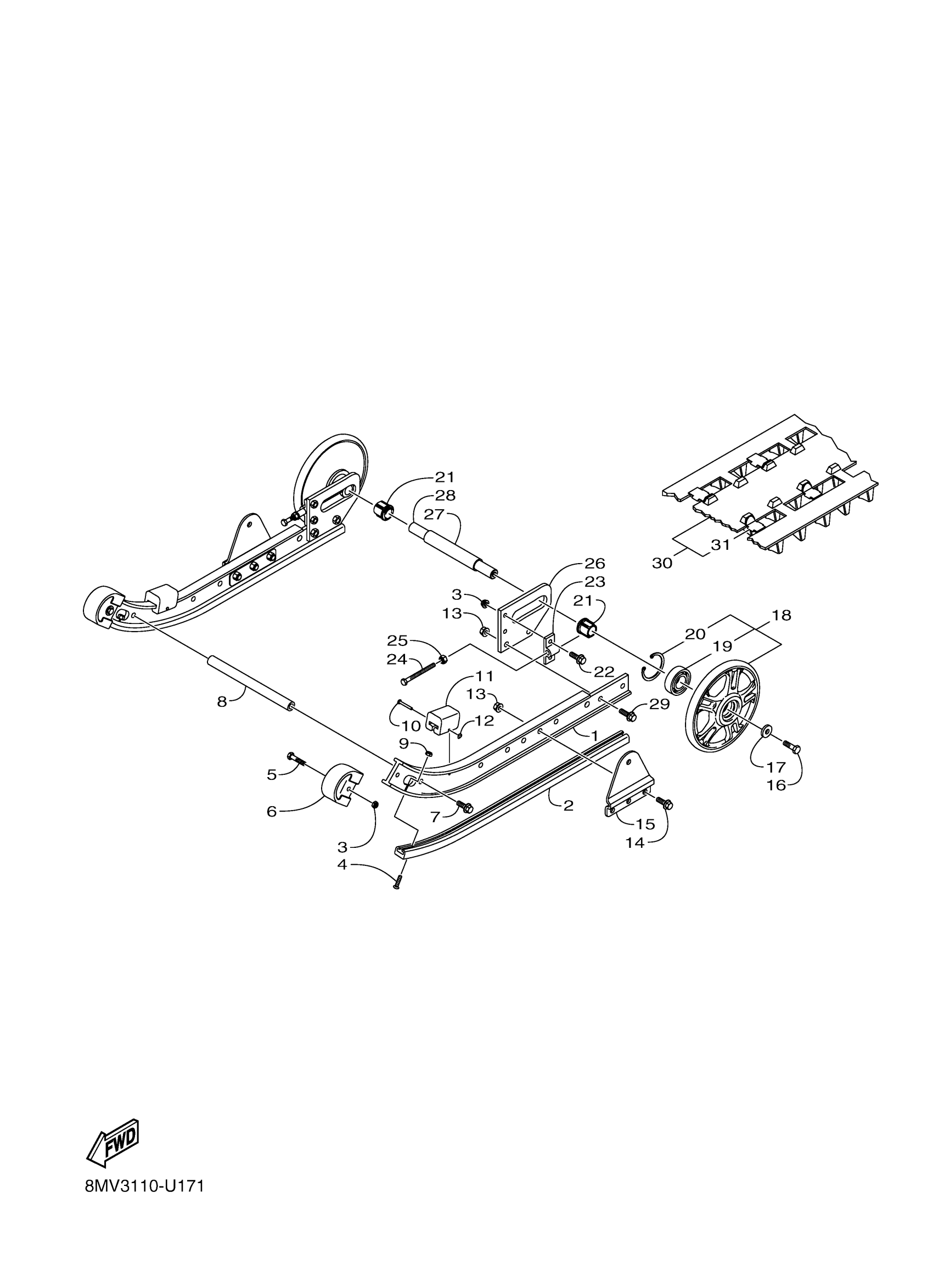

Yamaha SRX1NML (SRX120R) 8MV6 2021 TRACK SUSPENSION 1 Diagram
#
1
RAIL, SLIDE-FORMED
8JM-G741A-00-00
Unavailable
2
WEARSTRIP,SLIDE RAIL-BLK-Z 120
8JM-G7421-00-00
$29.99
3
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
4
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
5
BOLT, HEXAGON
8JM-RA115-10-00
Unavailable
6
RUNNER, SLIDING 2
8JM-G7422-00-00
Unavailable
7
SCREW,CAP-HFH 5/16-18X0.875 G5
8JM-RA116-00-00
$3.35
8
SHAFT 3
8JM-G7485-00-00
Unavailable
9
NUT, SELF-LOCKING 1/4-20
8JM-RA311-00-00
Unavailable
10
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
11
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
12
NUT, SPRING 1/8
8JM-RA313-00-00
Unavailable
13
NUT,HEX FLG-NY LOCK 5/16-18 GR
8JM-RA303-00-00
Unavailable
14
SCREW-CAP-HFH 5/16-18 X0.875 G
8JM-RA117-00-00
$2.34
15
BRACKET 1
8JM-G7415-00-00
Unavailable
16
BOLT, FLANGE 3/8-16X1
8JM-RA118-00-00
Unavailable
17
WASHER, PLAIN 0.39
8JM-RA409-00-00
Unavailable
18
GUIDE WHEEL ASSY
8JM-G7550-10-00
Unavailable
19
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
20
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
21
SPACER
8JM-G7341-00-00
Unavailable
22
BOLT, FLANGE 1/4-2
8MV-RA106-00-00
Unavailable
23
PLATE, ADJUSTING
8JM-G8177-00-00
Unavailable
24
HHCS 3/8-16X4.0 THREADED GR5
8JM-RA119-00-00
Unavailable
25
NUT, HEXAGON 3/8-1
8JM-RA314-10-00
Unavailable
26
FRAME, SLIDING C
8JM-G741C-00-00
Unavailable
27
COLLAR, 20
8JM-RA706-00-00
Unavailable
28
AXLE, REAR
8JM-G7521-00-00
Unavailable
29
BOLT, FLANGE 5/16-
8MV-RA117-00-00
Unavailable
30
TRACK ASSY
8MV-G7110-00-00
Unavailable
31
PLATE,RNFCMNT
8JR-G7113-00-00
Unavailable
