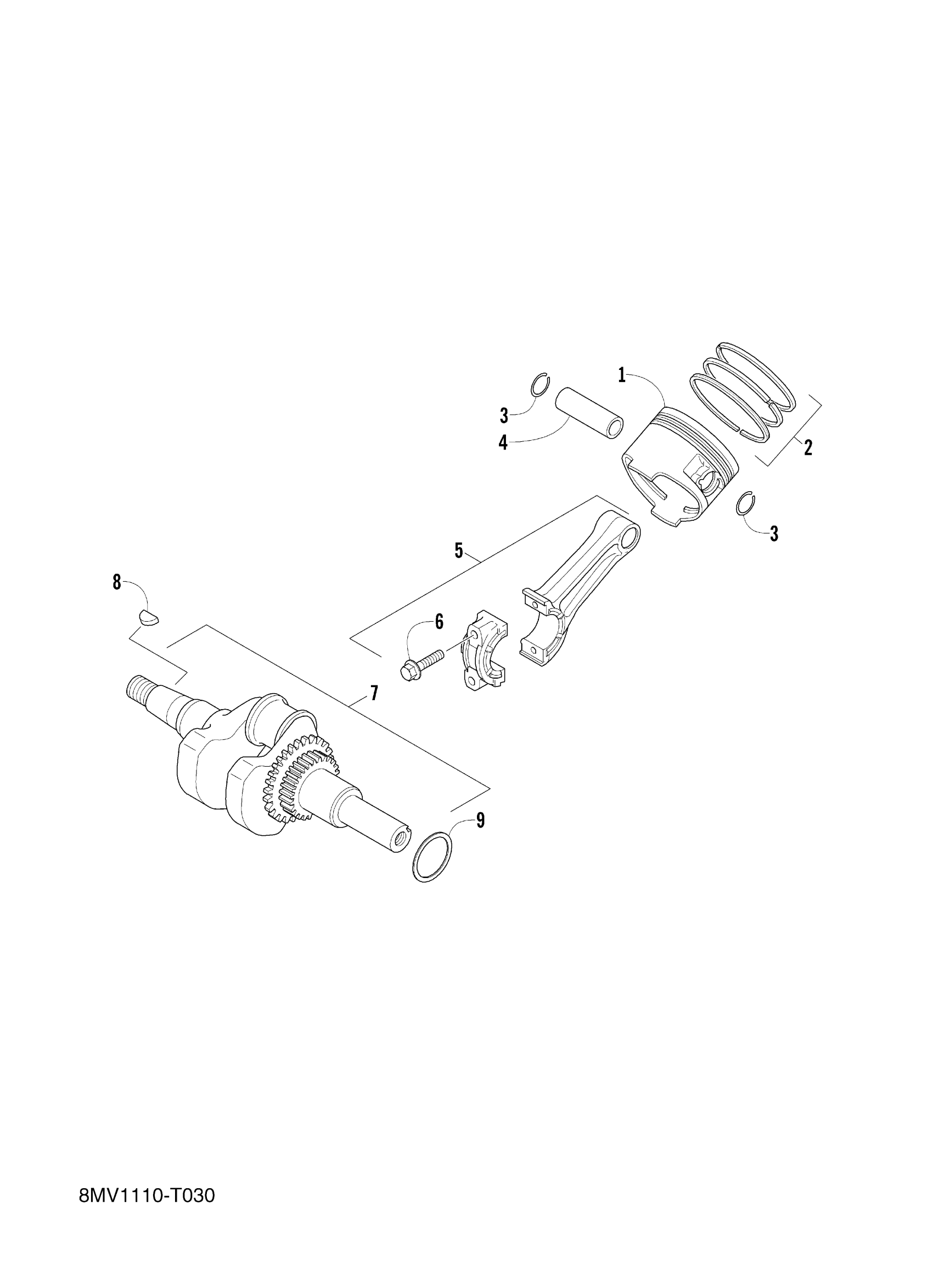

Yamaha SRX1NML (SRX120R) 8MV6 2021 CRANKSHAFT & PISTON Diagram

PISTON (STD)

7CL-E1631-10-A0

$34.77

PISTON (0.25MM O-S)

7CL-E1635-00-00

Unavailable

PISTON (0.50MM O/S)

7CL-E1636-00-00

$59.88

PISTON RING SET (STD)

7CL-E1610-00-00

Unavailable

PISTON RING SET

7CL-E1610-10-00

$41.21

PISTON RING SET(0.50 MM O/S)

7CL-E1610-20-00

$39.92

CIRCLIP

93450-17828-00

Unavailable

PIN, PISTON

7CL-E1633-00-00

$3.92

CONNECTING ROD ASSY

7CN-E1650-11-00

$63.11

BOLT, CONNECTING RO

7CN-E1654-00-00

$4.18

CRANKSHAFT ASSY

7CN-E1400-10-00

$215.71

KEY,WOODRUFF

90280-04052-00

Unavailable

SHIM, CRANK 1

7CN-E1561-00-00

$1.74
