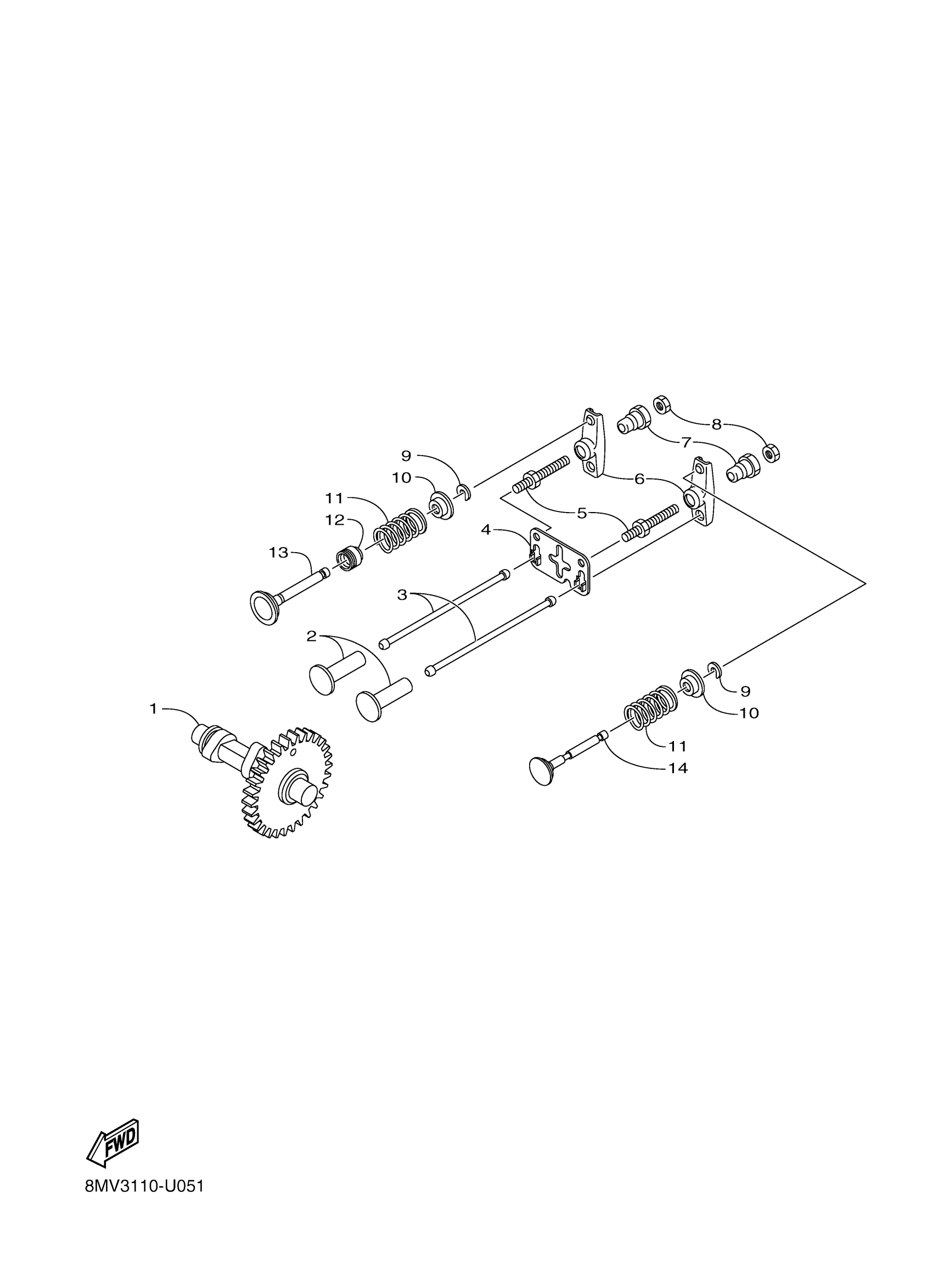

Yamaha SRX1NML (SRX120R) 8MV6 2021 CAMSHAFT & VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

7CN-E2170-00-00

$169.99

2

LIFTER, VALVE

7CN-E2153-00-00

$17.49

3

ROD, VALVE PUSH

7CN-E2154-00-00

$7.99

4

GUIDE, PUSH ROD

7CL-E2155-01-00

Unavailable

5

BOLT

7CN-E2157-01-00

$2.91

6

ARM, VALVE ROCKER

JA9-12151-00-00

$13.49

7

PIVOT, ROCKER ARM

7CN-E2165-00-00

$10.99

8

NUT, LOCK

7CN-E2158-01-00

Unavailable

9

COTTER, VALVE

7CN-E2118-00-00

$1.46

10

RETAINER, VALVE SPR

7CN-E2117-00-00

$4.21

11

SPRING, COMPRESSION

90501-20800-00

$11.49

12

SEAL, VALVESTEMOIL

7DH-E2119-01-00

$10.99

13

VALVE, INTAKE

7CL-E2111-00-00

$10.99

14

VALVE, EXHAUST

7CL-E2121-00-00

$17.49
