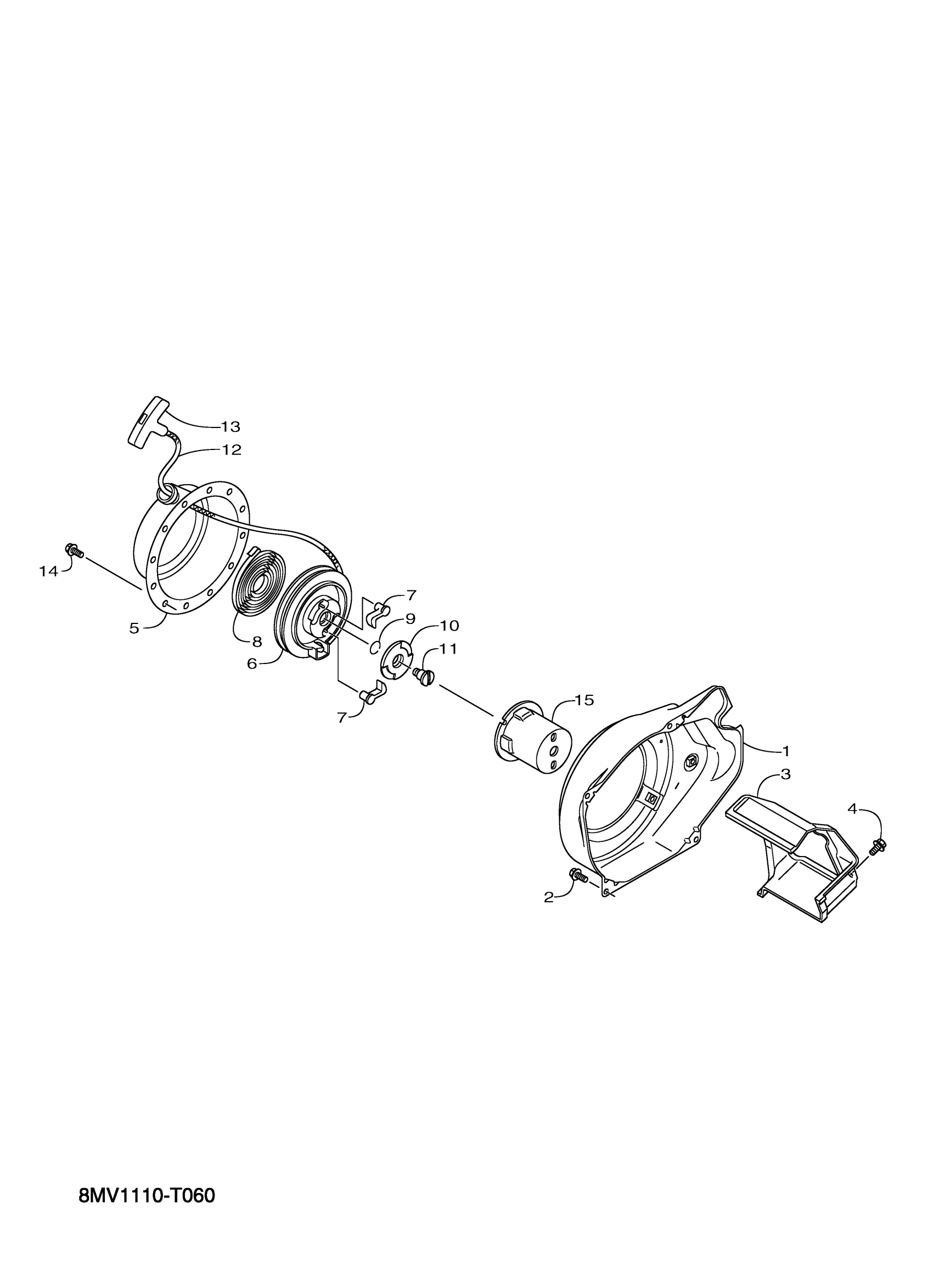

Yamaha SRX1NML (SRX120R) 8MV6 2021 AIR SHROUD & STARTER Diagram

#

Description
Price

1

CASE, FAN

7CN-E2621-01-00

$43.99

2

BOLT, FLANGE

95817-06012-00

$1.43

3

AIR SHROUD, CYLINDER 1

7CN-E2651-01-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.43

5

CASE, STARTER

7CN-E5711-00-00

Unavailable

6

DRUM, SHEAVE

7CN-E5714-03-00

$24.99

7

PAWL, DRIVE

7CN-E5741-01-00

Unavailable

8

SPRING, STARTER

7CN-E5713-00-00

$13.49

9

SPRING, FRICTION

7CN-E5715-00-00

$1.46

10

PLATE, DRIVE

7CN-E5716-01-00

Unavailable

11

SCREW

7CN-E5793-00-00

$5.49

12

WIRE, STARTER

7CN-E5751-11-00

$21.99

13

HANDLE, STARTER

7CN-E5755-00-00

Unavailable

14

BOLT, FLANGE

95812-06008-00

$7.49

15

PULLEY, STARTER

7CN-E5723-01-00

Unavailable
